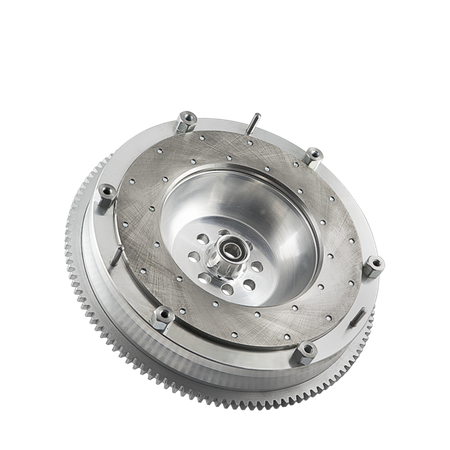

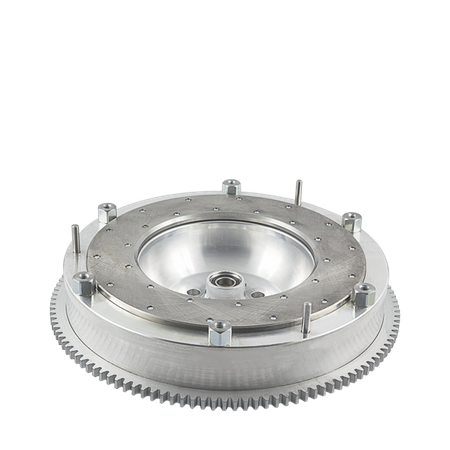

PMC Motorsport Lightweight custom aluminum flywheel

Honda K K20 K24 - MAZDA RX-8 6-speed - 240mm / 9.45"

Custom aluminum flywheel designed to mate the Honda K K20 K24 engine to the Mazda RX-8 6-speed gearbox

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment






Engine:

  • Honda K K20
    K20A K20A1 K20A2 K20A3 K20A4 K20A6
    K20Z1 K20Z2 K20Z3 K20Z4
  • Honda K K24
    K24A1 K24A2 K24A3 K24A4 K24A8
    K24Z1 K24Z2 K24Z3 K24Z4 K24Z5 K24Z6 K24Z7

Gearbox:

  • Mazda RX-8 6-speed
    • Y6Y0-17-01XA
    • Y610-17-01XG,
    • Y610-17-01XJ,
    • Y610-17-01XM,
    • Y610-17-01XR,
    • Y610-17-01XS,
    • Y610-17-01XU,
    • Y611-17-01XG






Manual

  • !!! An adapter is required to connect the engine to the gearbox !!!
  • Mount the flywheel to the same torque as OE (use OE Honda K 90011-PNA-B00 bolts (manual))
  • The OE bearing and clutch fork replace with concentric clutch cylinder from the set.






 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Tech specs:
Engine:
Honda K K20 K24
Gearbox:
Mazda RX-8 6-speed
Clutch Set
Flywheel Type:
Single Disc
Recommended clutch pressure plate:
LUK 624 3297 09
,
Sachs 3000 951 866
Diameter:
240mm / 9.45"
Clutch disc required:
Dedicated to your gearbox - 240mm / 9.45"
ADDITIONAL INFORMATION
Flywheel weight:
5.45 kg / 12.01 lb
Set includes:
Clutch cover - pressure plate bolts kit
,
Flywheel centering sleeve
,
Aluminium adapter for the central slave cylinder
,
Central slave cylinder
,
Pipe and tee
Material:
Aluminium
Replaceable friction surface:
Yes
Gearbox adapter required:
F0RX8-JZ
Product sales codes included:
K0RX8-6-F-K (2460)
