Dima di foratura ZF 8HP70 Jaguar Diesel - GM Chevrolet V8 LS

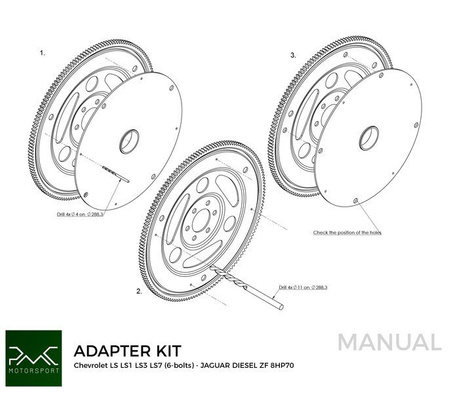

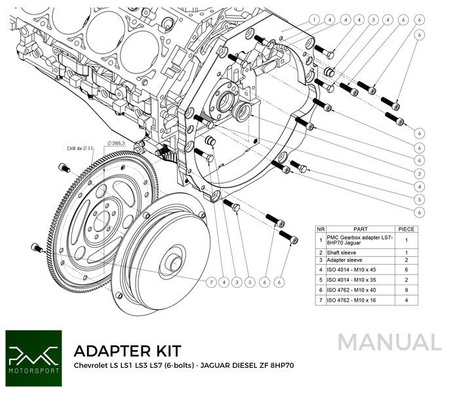

- Dima di foratura PMC Motorsport per volano GM Chevrolet V8 LS per convertitore di coppia ZF 8HP70 Jaguar Diesel (4 bulloni)
:
Dima di foratura PMC Motorsport per volano GM Chevrolet V8 LS per convertitore di coppia ZF 8HP70 Jaguar Diesel (4 bulloni)
Dima di foratura per volano GM Chevrolet LS LS1 LS3 LS6 LS7 LSA LSX Vortec
| Motori compatibili: |
GM Chevrolet GM Small Block Chevrolet LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Chevrolet LSx GM Chevrolet LSA GM Small Block Chevrolet Vortec GM Small Block V8 Chevrolet Vortec 4800 GM Small Block V8 Chevrolet Vortec 5300 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) GM Small Block V8 Chevrolet Vortec 6200 |
| Trasmissioni ZF 8HP compatibili: |
Jaguar ZF (ZF Friedrichshafen) 2.2 3.0 8HP 8HP45 8HP70 8-marce (convertitore di coppia 4-bulloni) |
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
GM 6.2 Liter V8 Supercharged LSA Engine
| Displacement: | 6.2L / 376 cu. in. |
|---|---|
| Aspiration: | Supercharged |
| Introduced: | 2009 model year |
| Discontinued: | 2015 |
| Predecessor: | LS3 / Gen IV Small Block |
| Successor: | LT4 / Gen V Small Block |
| Assembly: | St. Catharines, Ontario, Canada |
Specifications
| Type: | 6.2L Gen IV V8 Small Block |
| Displacement: | 6162 cc (376 ci) |
| Engine Orientation | Longitudinal |
| Compression ratio: | 9.1:1 |
| Valve configuration: | Overhead valves (2 valves per cylinder) |
| Assembly site: | Silao, Mexico |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92 mm |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6200 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | A356-T6 rotocast cast aluminum |
| Intake manifold: | Cast aluminum |
| Exhaust manifold CTS: | High silicon / high moly cast iron |
| Exhaust manifold Camaro: | Cast stainless steel |
| Main bearing caps: | Nodular Iron |
| Crankshaft: | Forged steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged powder metal |
| Additional features | |
| 1.9 L/rev Supercharger | |
| Integrated single coolant to air intercooler | |
| Piston oil spray cooling | |
| Direct mount ignition coils | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Valves per cylinder | 2 |
| Bore Center (mm) | 111.76 |
Vehicle Applications
- 2012-2015 Chevrolet Camaro ZL1
- 2008-2013 Cadillac CTS-V
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
