STAGE 2 BMW M60 - BMW M57N HGD JGA - 228mm / 8.98"
STAGE 2 BMW M60 - BMW M57N HGD JGA - 228mm / 8.98"
- PMC Motorsport STAGE 2 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
- BMW V8 M60 - BMW M57N M57N2 ZF GS6-53DZ HGD JGA E60 525D 530D 6-Speed Diesel - 228mm / 8.98" (Twin Disc) - SACHS 3000 951 019
:
PMC Motorsport STAGE 2 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
BMW V8 M60 - BMW M57N M57N2 ZF GS6-53DZ HGD JGA E60 525D 530D 6-Speed Diesel - 228mm / 8.98" (Twin Disc) - SACHS 3000 951 019
The adapter kit enables users connection of BMW V8 M60 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: |
BMW V8 M60 M60B30
BMW V8 M60 M60B40
The adapter fits the European version of the M60 engine. In the case of the M60 RHD engine, cut the adapter or change the starter to the European version and move it to the other side of the engine. |
Gearbox list: |
|
Manual
- Use the flywheel / ring gear from the automatic version
- Tighten the flywheel to the same torque as OE.
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
Marchio
Simbolo
S2-M60-HGD-019
Codice produttore
5903707411115
Motore
BMW M60
Cambio
BMW M57N2 ZF GS6-53DZ HGD E60 530D 6-marce (DIESEL)
BMW M57N2 ZF GS6-53DZ JGA E60 530D 6-marce (DIESEL)
Kit frizione
Kit con frizione
Sì
Tipo di volano
Twin disc
Kit frizione incluso
SACHS 300 951 019 BMW E60 M5 (Twin disc)
Capacità di coppia
700Nm / 516,12 lb⋅ft
Disco frizione
Incluso
Cuscinetto di disinnesto richiesto
Incluso
Forcella frizione richiesta
BMW OE 21 51 1 223 302
Motorino di avviamento (non incluso)
BMW M60 M62 OE 12 41 1 729 981 / 1729981
BMW M60 M62 OE 12 41 1 736 921 / 1736921
Volano automatico / Corona dentata
BMW M60 V8 OE 11 22 1 747 843 / 1747843
BMW M60 V8 OE 11 22 1 715 646 / 1715646
INFORMAZIONI AGGIUNTIVE
Tipo di kit adattatore
Motorsport
Spessore dell'adattatore
25mm / 0.98"
Superficie di attrito sostituibile
Sì
Il kit include

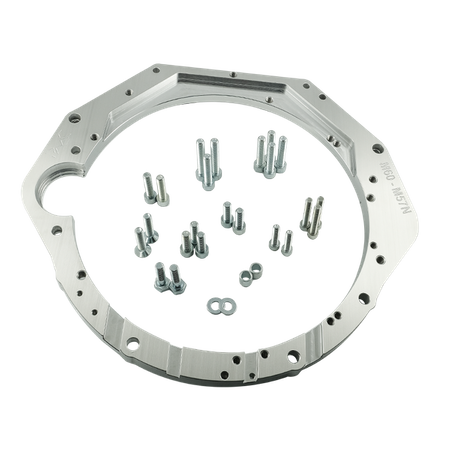

Adattatore cambio
Bulloni dell'adattatore del cambio

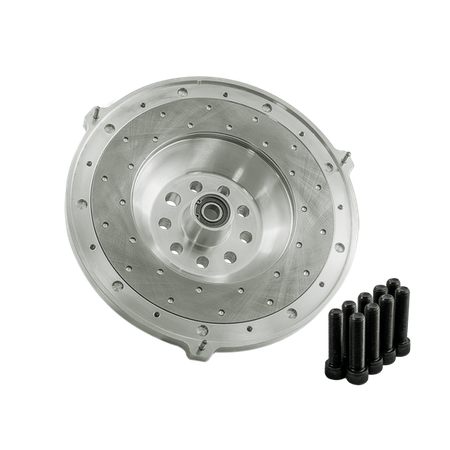

Volano personalizzato
Bulloni dell'albero a gomiti
Bulloni per spingidisco

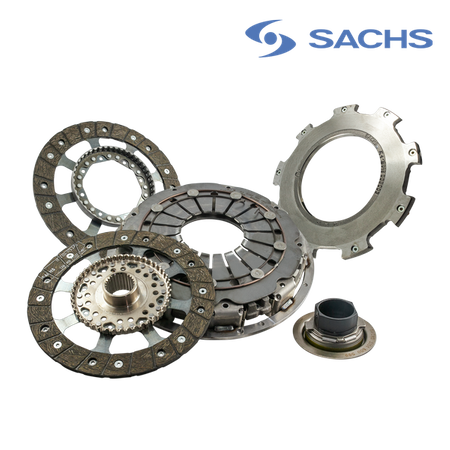

Clutch kit Sachs 3000 951 019
Codici dei prodotti inclusi
F0M57-M6
K0HGD-228-M6 (4731)
SACHS 019 (1767)
