Stage 1 Mercedes-Benz M113 - BMW M57N HGU HGK / N54 - 240mm / 9.45" (949)
Stage 1 Mercedes-Benz M113 - BMW M57N HGU HGK / N54 - 240mm / 9.45" (949)
- PMC Motorsport Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
- Mercedes-Benz V8 M113 - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 240mm / 9.45" - SACHS 3000 951 949
:
PMC Motorsport Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
Mercedes-Benz V8 M113 - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 240mm / 9.45" - SACHS 3000 951 949
The adapter kit enables users connection of Mercedes-Benz M113 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: |
|
Gearbox list: |
|

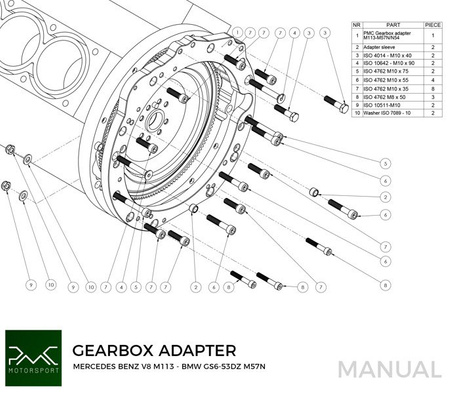

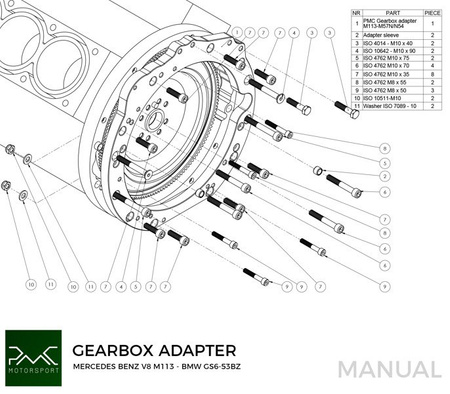

Manual
- Use the flywheel / ring gear from the automatic version
- Tighten the flywheel to the same torque as OE.
- The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
- Use 240mm clutch disc with spline dedicate to your gearbox.
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
Marchio
Simbolo
S1-M113K-HGU-949
Codice produttore
5903707409129
Modello di motore Mercedes-Benz
Mercedes-Benz M113 AMG Di più
Mercedes-Benz M113 AMG
-
Mercedes-Benz M113 AMG 5.4 E55
- 1997 Mercedes-Benz CLK 55 AMG F1 safety car (C208)
- 1997–2002 Mercedes-Benz E 55 AMG (W210)
- 1998–2000 Mercedes-Benz C 55 AMG (W202)
- 1999–2001 Mercedes-Benz SL 55 AMG (R129)
- 1999–2003 Mercedes-Benz G 55 AMG (W463)
- 1999–2002 Mercedes-Benz S 55 AMG (W220&V220)
- 1999–2002 Mercedes-Benz CLK 55 AMG (C208)
- 1999–2002 Mercedes-Benz CL 55 AMG (C215)
- 2000–2003 Mercedes-Benz ML 55 AMG (W163)
- 2002–2006 Mercedes-Benz CLK 55 AMG (C209)
- 2004–2010 Mercedes-Benz SLK 55 AMG (R171)
- 2003–2007 Mercedes-Benz C 55 AMG (W203)
- 2006–2008 Mercedes-Benz SLK 55 AMG Black Series (R171)
-
Mercedes-Benz M113 AMG 5.4 E55ML Kompressor
- 2002–2006 Mercedes-Benz S 55 AMG (W220)
- 2002–2008 Mercedes-Benz SL 55 AMG (R230)Ź
- 2003–2006 Mercedes-Benz CL 55 AMG (C215)
- 2003–2006 Mercedes-Benz E 55 AMG (W211)
- 2004–2006 Mercedes-Benz CLK DTM AMG (C209)
- 2004–2006 Mercedes-Benz CLS 55 AMG (C219)
- 2004–2011 Mercedes-Benz G 55 AMG (W463)
- 2005 Fisker Tramonto V8
- 2005 Laraki Fulgura V8
Mercedes-Benz M113 Di più
Mercedes-Benz M113
-
Mercedes-Benz M113 4.3 E43
- 1997–2000 Mercedes-Benz C 43 AMG (W202)
- 1997–2002 Mercedes-Benz E 430 (W210)
- 1998–2002 Mercedes-Benz CLK 430 (C208)
- 1999–2001 Mercedes-Benz ML 430 (W163)
- 1999–2006 Mercedes-Benz S 430 (W220)
-
Mercedes-Benz M113 5.0 E50
- 1999–2001 Mercedes-Benz SL 500 (R129)
- 1998–2008 Mercedes-Benz G 500 (W463)
- 1999–2006 Mercedes-Benz S 500 (W220)
- 1998–2006 Mercedes-Benz CL 500 (C215)
- 2001–2008 Mercedes-Benz ML 500 (W163)
- 2001–2006 Mercedes-Benz SL 500 (R230)
- 2002–2006 Mercedes-Benz CLK 500 (C209)
- 2002–2006 Mercedes-Benz E 500 (W211)
- 2004–2006 Mercedes-Benz CLS 500 (C219)
- 2005-2007 Mercedes-Benz ML 500 (W164)
- 2006–2007 Mercedes-Benz R 500 (W251)
- 2008–2017 SsangYong Chairman W
Cambio manuale (Benzina)
6-marce ZF GS6-53BZ BMW N54Di più
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215
- BMW 3' E90 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E90 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 5' E60 LCI 535i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240
- BMW 3' E90 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E91 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E92 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E93 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK
- Bell housing : 1067 401 127 / 1067401127
- Sticker number 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859
- BMW 1' E82 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW 1' E88 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW Z4' E89 35i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGY code HGY (xDrive)
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 012 011 / 23.00-7565216 / 2300 7565216 /23007565216
- BMW 3' E90 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E90 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 5' E60 LCI 535xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
6-marce ZF GS6-37BZ BMW M54 Di più
- BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
- BMW 3' E46 330i M54 ZF GS6-37BZ - THEB / BMW OE 23 00 7 523 981 / 23 00 7523981
- BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
- BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
- BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
- BMW 5' E61 525i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
- BMW 5' E61 525i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
Cambio manuale (Diesel)
6-marce ZF GS6-53DZ HGU BMW E9x 330D M57n2Di più
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU
Bell housing: 1067 401 161 / 1067401161
Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
6-marce ZF GS6-53DZ HGK BMW E9x 330D M57n2 Di più
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK
Bell housing : 1067 401 161 / 1067401161
Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
Kit frizione
Kit con frizione
Sì
Capacità di coppia
650Nm / 479,25lb⋅ft
Tipo di volano
Single Disc
Diametro della piastra di attrito
240mm / 9.45"
Kit frizione incluso
Sachs XTend 3000 951 952 (M57N M57N2)
Self-adjusting
Sì
Disco frizione
Incluso
Profilo mozzo
32,5x35-26N
Numero denti
26
Cuscinetto di disinnesto richiesto
Incluso
Forcella frizione richiesta
Inclusa
Cilindro frizione richiesto
Adatto alla sua scatola del cambio
Motorino di avviamento (non incluso)
Mercedes-Benz (OE)
Volano automatico / Corona dentata
Mercedes-Benz Automatic OE a2730300312
INFORMAZIONI AGGIUNTIVE
Tipo di kit adattatore
Motorsport
Uso quotidiano
Drift
Spessore dell'adattatore
20mm / 0.78"
Superficie di attrito sostituibile
Sì

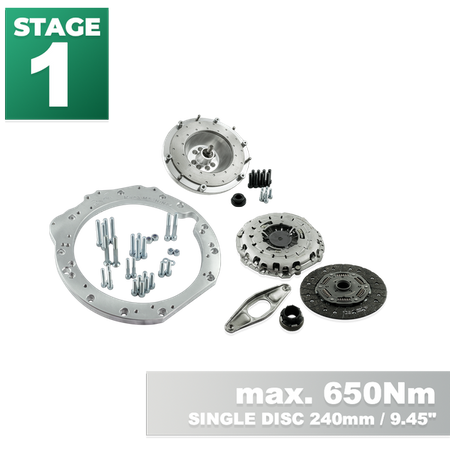

Il kit include

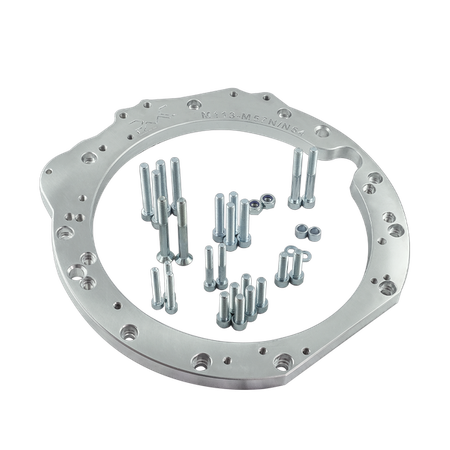

Adattatore cambio
Bulloni dell'adattatore del cambio

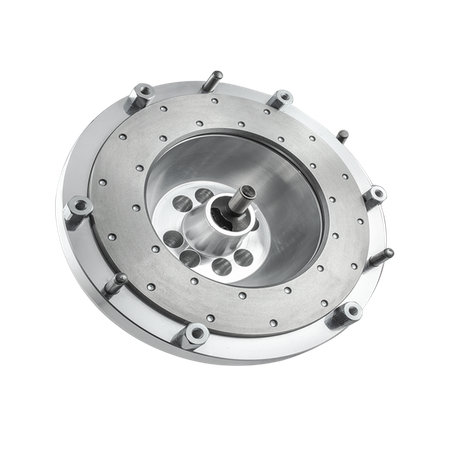

Volano personalizzato
Bulloni dell'albero a gomiti
Bulloni per spingidisco

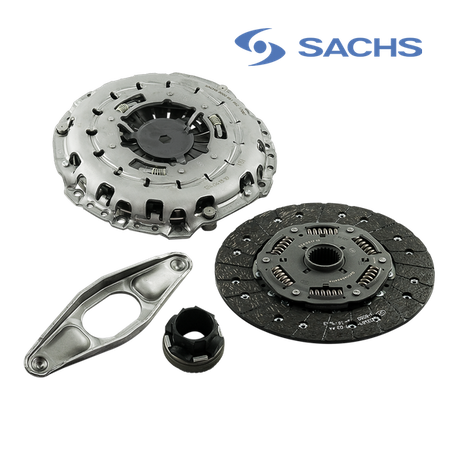

Kit frizione Sachs XTend 3000 951 952
Codici dei prodotti inclusi
K0HGU-240-M156 (1741)
F0M57-M113 (1927)
SACHS 952
EAN
5903707409129
Codice prodotto
S1-M113K-HGU-952
