Volano GM Chevrolet LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
- Volano leggero in alluminio PMC Motorsport GM Chevrolet V8 LS Vortec - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
:
Risparmia acquistando di più
Kit adattatore GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55

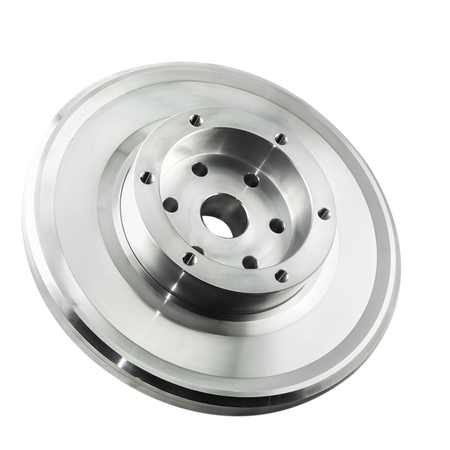

Volano leggero in alluminio PMC Motorsport GM Chevrolet V8 LS Vortec - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
Volano in alluminio su misura, progettato per accoppiare i motori GM Chevrolet V8 LS Vortec al cambio Getrag DCT DKG GS7D36SG
Perché scegliere i ricambi e gli adattatori PMC Motorsport?
Professionalità
Dalla progettazione alla produzione, i nostri pezzi sono sottoposti a un processo rigoroso. Ogni componente viene misurato con un braccio di misura e scanner 3D. I prototipi vengono sottoposti a numerosi test per eliminare potenziali problemi. Utilizziamo esclusivamente materiali certificati provenienti da fornitori fidati. Disponiamo di un moderno parco macchine CNC e di tecnici professionisti esperti.
Allineamento perfetto
I nostri adattatori garantiscono un allineamento perfetto tra motore e cambio.
Prodotto in Polonia
L'intero processo, dalla progettazione alla produzione, viene svolto in Polonia.
Assistenza e supporto pre e post vendita
Il team PMC Motorsport ti aiuterà a scegliere il prodotto giusto e risponderà a tutte le domande che potresti avere durante l'installazione. Contattaci tramite Facebook, Instagram o e-mail: office@pmcmotorsport.com
Acquista componenti singoli
Tutti i componenti dei nostri kit sono disponibili per l'acquisto singolo. Se hai bisogno di un pezzo di ricambio, contattaci: office@pmcmotorsport.comSpedizione internazionale rapida
Spediamo i nostri prodotti in tutto il mondo. Per i paesi dell'UE (isole escluse) e il Regno Unito, le spese di spedizione vengono calcolate automaticamente. Per i paesi non elencati, calcoliamo le spese di spedizione individualmente dopo aver effettuato l'ordine.
VAT 0%
0% IVA per i clienti con partita IVA europea attiva (opzione per i clienti B2B al di fuori della Polonia).
Esperienza
Migliaia di adattatori prodotti e clienti soddisfatti in tutto il mondo. I prodotti PMC Motorsport sono utilizzati sia nei veicoli di uso quotidiano che nei progetti di motorsport professionale
Qualità certificata
La qualità è la nostra priorità. Ogni pezzo viene sottoposto a rigorosi test in ogni fase della produzione. Ogni componente è inciso con un numero di serie univoco. Siamo certificati secondo la norma PN-EN ISO 9001:2015.
Elenco motori: |
GM Small Block Chevrolet LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Small Block Chevrolet Vortec GM Small Block V8 Chevrolet Vortec 4800 GM Small Block V8 Chevrolet Vortec 5300 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) GM Small Block V8 Chevrolet Vortec 6200
|
Elenco dei cambi compatibili: |
BMW GETRAG DKG DCT GS7D36SG N54 S55 N55 7-marce GS7D36SG - BMT 28 00 7 640 956 / 28 00 7640956 GS7D36SG - 28 00 7 585 538 / 28 00 7585538 GS7D36SG - 28 00 8 482 016 / 28 00 8482016 GS7D36SG - ABW 28 00 7 853 541 / 28 00 7853541 GS7D36SG - ABY 28 00 7 853 542 / 28 00 7853542 GS7D36SG - AC2 28 00 7 853 546 / 28 00 7853546 GS7D36SG - AC5 28 00 7 853 549 / 28 00 7853549 GS7D36SG - ADE 28 00 7 853 550 / 28 00 7853550 GS7D36SG - AEA 28 00 7 853 551 / 28 00 7853551 GS7D36SG - AEB 28 00 7 853 552 / 28 00 7853552 GS7D36SG - AEE 28 00 7 853 554 / 28 00 7853554 GS7D36SG - AEG 28 00 7 853 555 / 28 00 7853555 GS7D36SG - AEP 28 00 7 853 557 / 28 00 7853557 |

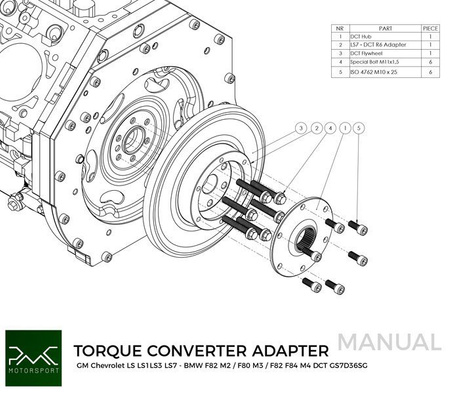

Istruzioni di montaggio
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
- GETRAG GS7D36SG - BMT 28 00 7 640 956 / 28 00 7640956 (2012-07 - 2013-07 BMW N54 N55 E82 E83 E89 E92 / E92 LCI E93 / E93 LCI)
- GETRAG GS7D36SG - BE2 28 00 7 640 956 / 28 00 7640956 (2013-07 - 2015-03 BMW N54 N54T N55 E82 E83 E89 E92 LCI E93 LCI)
- GETRAG GS7D36SG - ABW 28 00 7 853 541 / 28 00 7853541 (-2016-03 BMW E87 M2 N55)
- GETRAG GS7D36SG - ABY 28 00 7 853 542 / 28 00 7853542 (-2016-07 BMW E87 M2 N55)
- GETRAG GS7D36SG - AC2 28 00 7 853 546 / 28 00 7853546 (-2016-11 BMW E87 M2 N55)
- GETRAG GS7D36SG - AC5 28 00 7 853 549 / 28 00 7853549 (-2017-03 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 E87 M2)
- GETRAG GS7D36SG - ADE 28 00 7 853 550 / 28 00 7853550 (-2017-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 E87 M2)
- GETRAG GS7D36SG - AEA 28 00 7 853 551 / 28 00 7853551 (-2017-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2)
- GETRAG GS7D36SG - AEB 28 00 7 853 552 / 28 00 7853552 (-2017-11 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
- GETRAG GS7D36SG - AEE 28 00 7 853 554 / 28 00 7853554 (-2018-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
- GETRAG GS7D36SG - AEG 28 00 7 853 555 / 28 00 7853555 (-2018-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
- GETRAG GS7D36SG - AEP 28 00 7 853 557 / 28 00 7853557 (-2019-03 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
