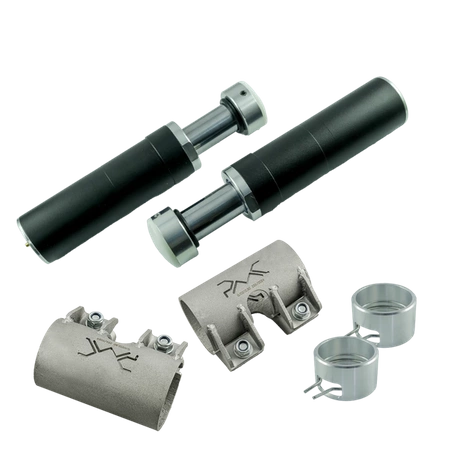

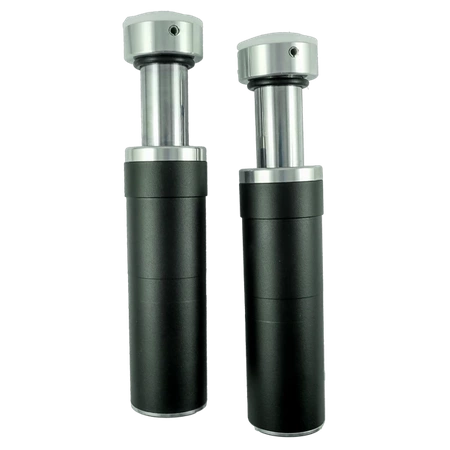

PMC Motorsport Bump Stop Set - Hydraulic Suspension Bump Stops with 2"Travel + Adjustable Mounting Brackets

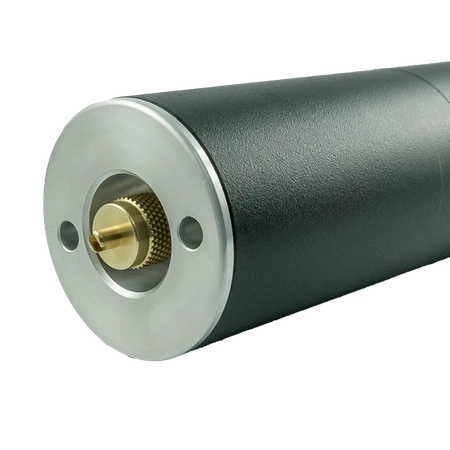

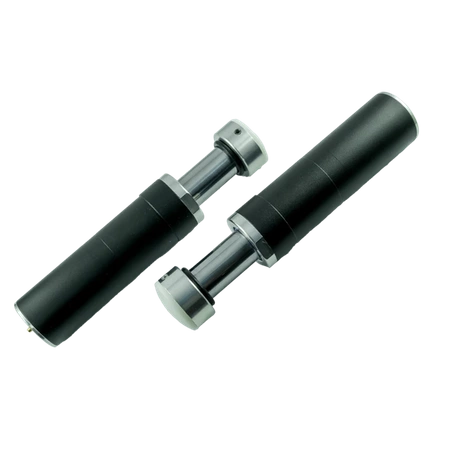

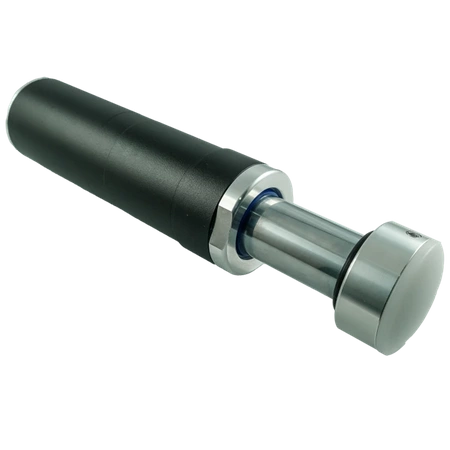

The Bump Stop 2" (hydraulic bump stop) - universal is an advanced suspension component designed for off-road vehicles, aimed at protecting against excessive compression under extreme loads. The bump stop is made of durable steel, ensuring resistance to wear and mechanical damage, with a diameter of 50.8 mm for precise and stable operation. Its internal hydraulic mechanism efficiently absorbs energy generated during suspension impact with the ground, minimizing the strain on shocks and other suspension components. This universal part can be used in a wide range of off-road vehicles, and its compact design makes installation and integration with suspension systems easier. Ideal for use in harsh off-road conditions, such as 4x4 rallies, rocky trails, or extreme off-road challenges.

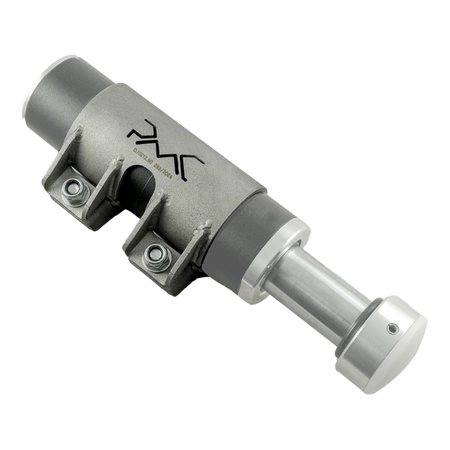

Adjustment Instructions for Bump Stop 2”

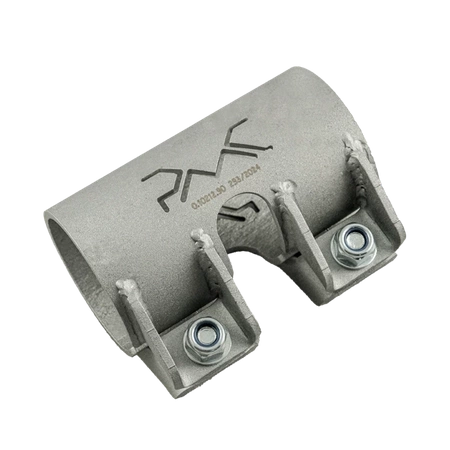

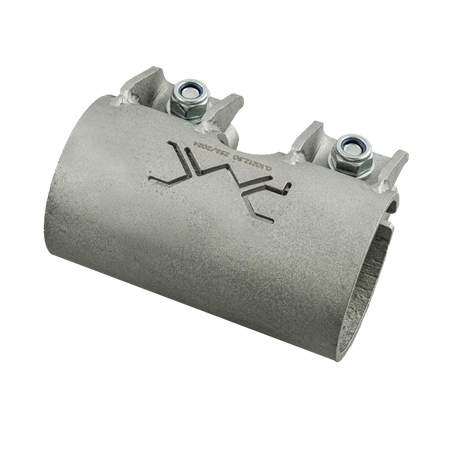

Loosen the M8 clamp bolts.
Slide the Bump Stop 2” out of the clamp and adjustment sleeve.

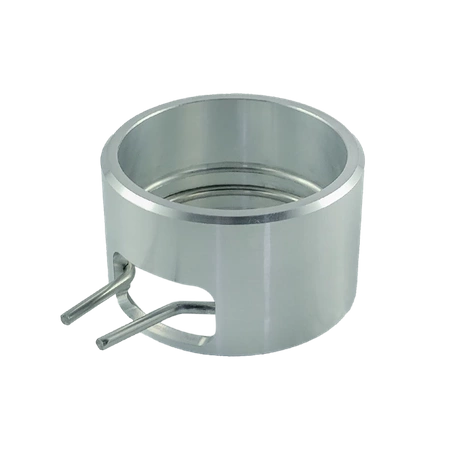

Compress the lock in the adjustment sleeve.

Change the position of the lock in the adjustment sleeve.

To increase the adjustment range, rotate the adjustment sleeve.

Set the lock in the adjustment sleeve to the desired position.
The adjustment travel is 5 mm. The total adjustment range is 25 mm.

Place the adjustment sleeve on the Bump Stop 2”.
Slide the Bump Stop 2” into the clamp.
Tighten the clamp bolts to 23 Nm.
