Tie rod end / tie rod end - uniball GARS 8 FLURO - M8 right (male)
Tie rod end / tie rod end - uniball GARS 8 FLURO - M8 right (male)
- Tie rod end / tie rod end - uniball GARS 8 FLURO - M8 right (male)
:

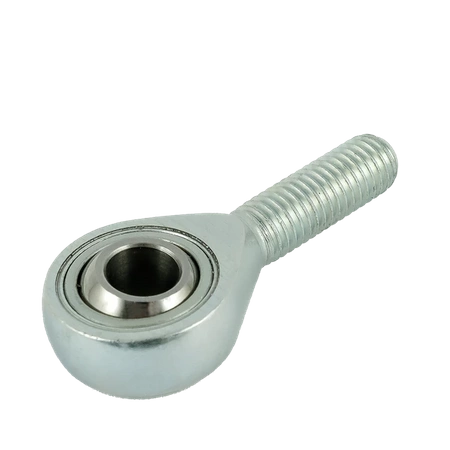

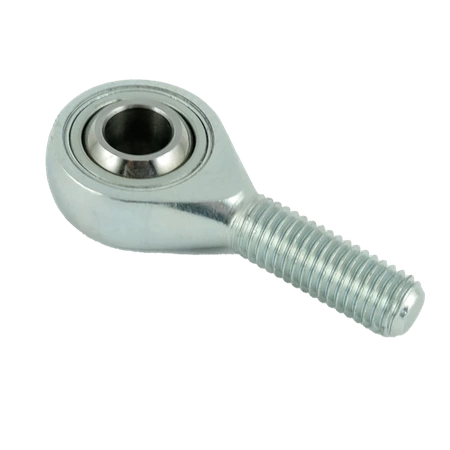

Rod End GARS 8 FLURO - M8
GARS Series - Rod end with external thread made of stainless steel, lubricated through a concave ball socket. For use in corrosion-prone areas. Dimensional series K - stainless.
Friction pair - chrome-plated steel/steel
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, machined
Bearing shell: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
24 / 0.95"
W - Larghezza interna dell'anello [mm /inch]
12 / 0.47"
T - Larghezza esterna dell'anello [mm /inch]
9 / 0.35"
L- Lunghezza [mm /inch]
42 / 1.65"
GM - Lunghezza filettatura [mm /inch]
25 / 0.98"
Angolo di rotazione
28°
Carico statico massimo [kN / lbs]
16.1 / 3619.42
Carico dinamico massimo [kN / lbs]
7.1 / 1596.14
Peso
33 g / 0,073 lbs
