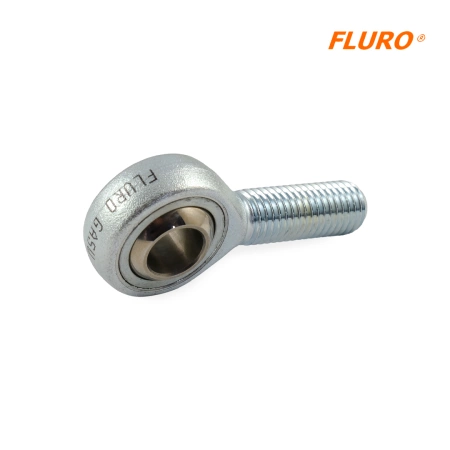

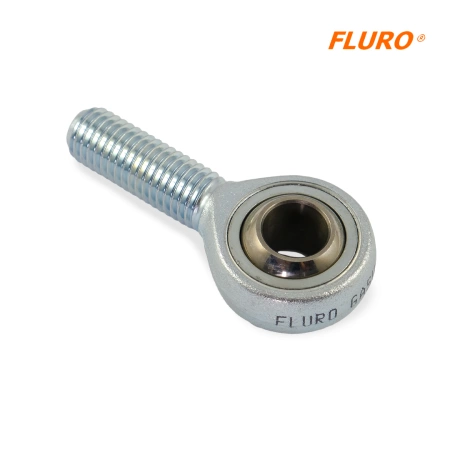

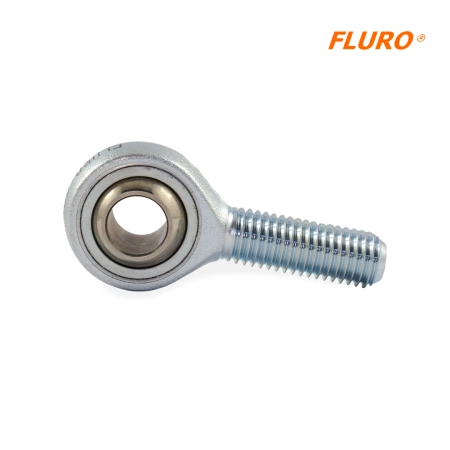

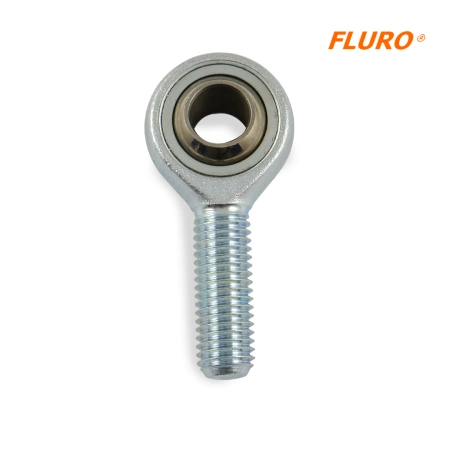

Tie rod end / tie rod end - uniball GASW 16-2RS FLURO - M16 (male)
- Tie rod end / tie rod end - uniball GASW 16-2RS FLURO - M16 (male)
:
GASW 16-2RS FLURO Rod End - M16
GASW Series - Rod end with an external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with a PTFE insert (maintenance-free).
For use under dynamic load. Dimension series K - with sealing.
Sliding pair - chrome steel/PTFE
Sealing 2RS - double-sided, plastic, contact sealing. NBR elastomer, temperature resistance from -30o to +120oC, resistant to mineral oils, greases, gasoline
Locking rings - brass
Spacer sleeves - stainless steel 1.4305
Housing:
up to size 12: free-cutting steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged
Bearing liner: free-cutting steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
