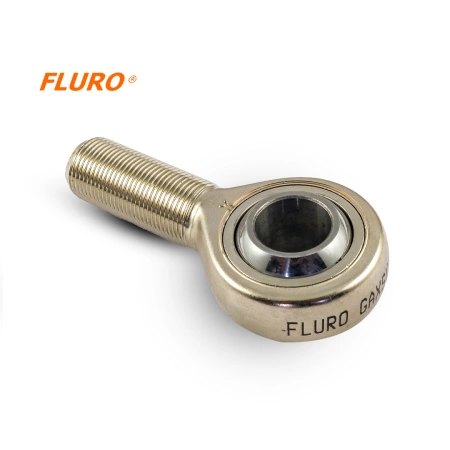

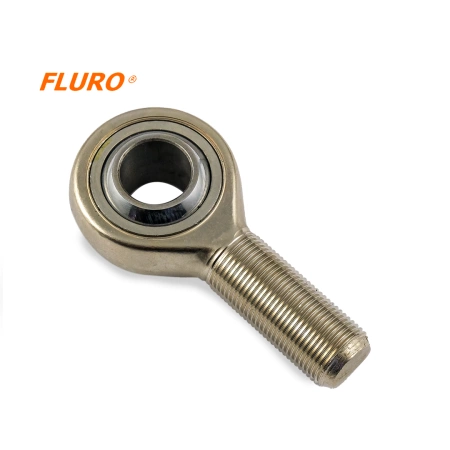

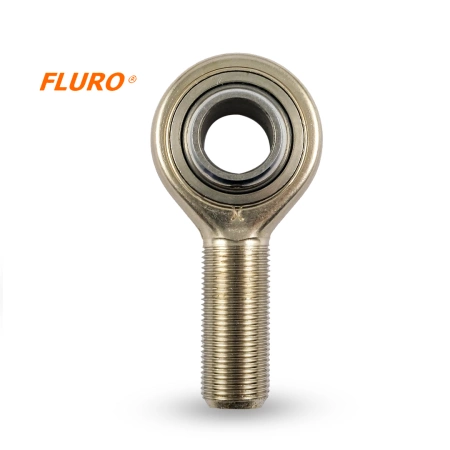

GAXSW 14 FLURO Tie Rod End - M14
GAXSW Series - Tie rod end with external thread made of heat-treated steel, galvanized, with PTFE insert (maintenance-free).
For use under high dynamic tensile/compressive loads. Dimensional series K - maintenance-free.
Sliding pair - chrome-plated steel/PTFE
Housing: heat-treated steel [DE / FR / IT 42CrMo4 SE 2244, GB 708M40, Aisi 4140], forged
Bearing liner: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
36 / 1.42"
W - Larghezza interna dell'anello [mm /inch]
19 / 0.75"
T - Larghezza esterna dell'anello [mm /inch]
13.5 / 0.53"
L- Lunghezza [mm /inch]
60 / 2.36"
GM - Lunghezza filettatura [mm /inch]
38 / 1.50"
Angolo di rotazione
32°
Carico statico massimo [kN / lbs]
57.0 / 12814.11
Carico dinamico massimo [kN / lbs]
42.0 / 9441.98
Peso
129 g / 0.284 lbs
