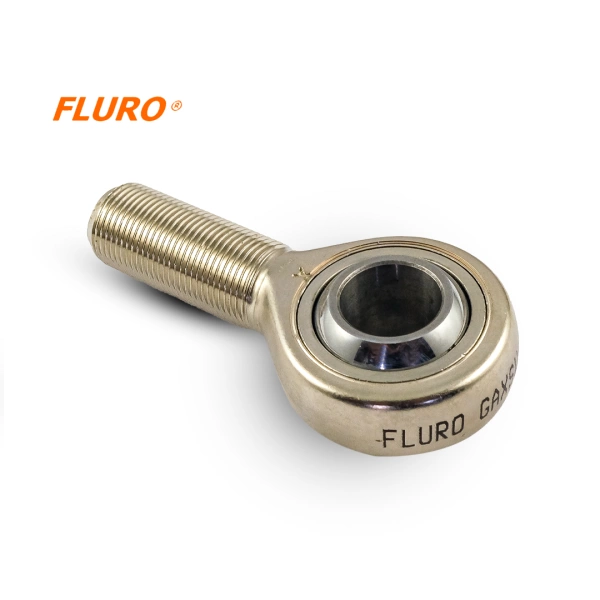

Rod End GAXSW 16 MS FLURO - M16
Motorsport - MS Series GAXSW MS - Rod end with an external thread made of heat-treatable steel, galvanized, with a PTFE insert (maintenance-free).
For use under high dynamic tensile/compressive loads. Dimensional series K - maintenance-free.
Friction pair - chrome steel/PTFE
Housing: heat-treatable steel [DE / FR / IT 42CrMo4 SE 2244, GB 708M40, Aisi 4140], nickel-plated and polished
Bearing liner: stainless steel 1.4571 [DE X6CrNiMoTi17-12-2, FR Z6CNDT17-12, IT X6CrNiMoTi1712, SE 2350, GB 320S18, US Aisi 316Ti] with a bonded PTFE layer, maintenance-free
Inner ring: bearing steel [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened and coated with a hard chrome layer, reduced bearing clearance.
Marchio
Simbolo
GAXSW 16 MS
Tipo
Fluro GAXSW MS - Series
Filettatura
M16
Tipo di Filettatura
Destra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
42 / 1.65"
W - Larghezza interna dell'anello [mm /inch]
21 / 0.83"
T - Larghezza esterna dell'anello [mm /inch]
15 / 0.59"
L- Lunghezza [mm /inch]
66 / 2.60"
GM - Lunghezza filettatura [mm /inch]
40 / 1.57"
Angolo di rotazione
30°
Carico statico massimo [kN / lbs]
67 / 15062.20
Carico dinamico massimo [kN / lbs]
52.5 / 11802.47
Peso
189 g / 0,41667 lbs
