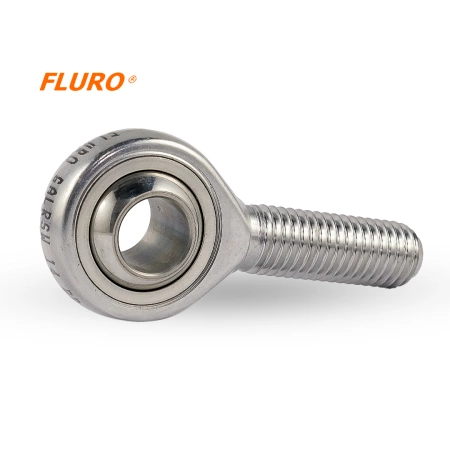

Tie rod end / tie rod end - uniball GARSW 20.RR FLURO - M20x1.5 right (male)
Tie rod end / tie rod end - uniball GARSW 20.RR FLURO - M20x1.5 right (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Marchio
Simbolo
GARSW 20.RR
Tipo
Fluro GARSW - Series
Filettatura
M20x1.5
Tipo di Filettatura
Destra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
50 / 1.97"
W - Larghezza interna dell'anello [mm /inch]
25 / 0.99"
T - Larghezza esterna dell'anello [mm /inch]
18 / 0.71"
L- Lunghezza [mm /inch]
78 / 3.07"
GM - Lunghezza filettatura [mm /inch]
47 / 1.85"
Angolo di rotazione
28°
Carico statico massimo [kN / lbs]
83.0 / 18659.14
Carico dinamico massimo [kN / lbs]
78.0 / 17535.10
Peso
348g / 0.77lbs
