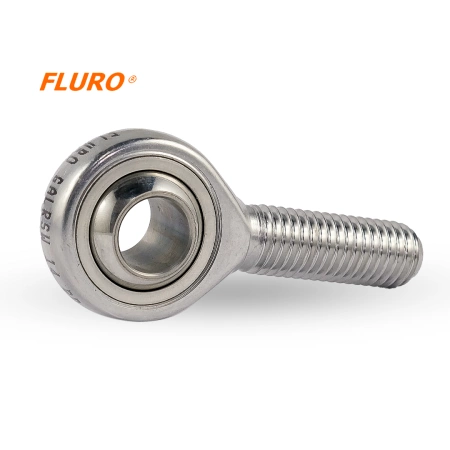

Tie rod end / tie rod end - uniball GARSW 6.RR FLURO - M6 right (male)
Tie rod end / tie rod end - uniball GARSW 6.RR FLURO - M6 right (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
20 / 0.79"
W - Larghezza interna dell'anello [mm /inch]
9 / 0.35"
T - Larghezza esterna dell'anello [mm /inch]
6.75 / 0.27"
L- Lunghezza [mm /inch]
36 / 1.42"
GM - Lunghezza filettatura [mm /inch]
21 / 0.83"
Angolo di rotazione
26°
Carico statico massimo [kN / lbs]
8.8 / 1978.32
Carico dinamico massimo [kN / lbs]
9.3 / 2090.72
Peso
20 g / 0.044 lbs
