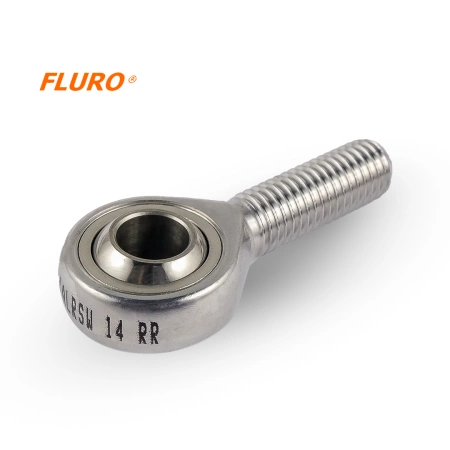

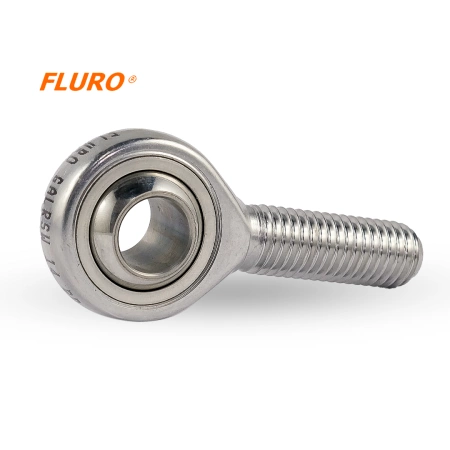

Tie rod end / tie rod end - uniball GARSW 40.RR FLURO - M42x2 right (male)
Tie rod end / tie rod end - uniball GARSW 40.RR FLURO - M42x2 right (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Marchio
Simbolo
GARSW 40.RR
Tipo
Fluro GARSW - Series
Filettatura
M42x2
Tipo di Filettatura
Destra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
90 / 3.54"
W - Larghezza interna dell'anello [mm /inch]
49 / 1.93"
T - Larghezza esterna dell'anello [mm /inch]
35 / 1.38"
L- Lunghezza [mm /inch]
142 / 5.59"
GM - Lunghezza filettatura [mm /inch]
78 / 3.07"
Angolo di rotazione
32°
Carico statico massimo [kN / lbs]
235.0 / 52830.10
Carico dinamico massimo [kN / lbs]
286.0 / 64295.36
Peso
2570 g / 5.666 lbs
