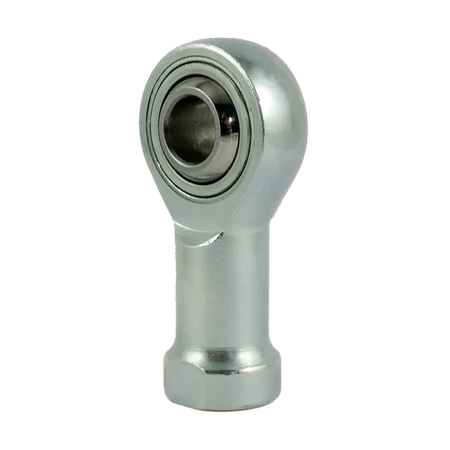

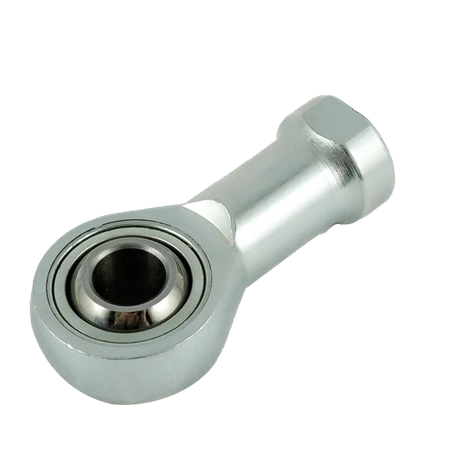

Rod End / Tie Rod End - Uniball GISW 8 C2 FLURO - M8 Right (Female)
- GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free). For use under dynamic loads. C2 - Clearance smaller than normal
:
FLURO GISW Rod End
GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free).
For use under dynamic loads. Dimensional series K - maintenance-free design.
Friction pair: steel/PTFE
C2 - Clearance smaller than normal
Housing:
up to size 12 - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] turned
from size 14 - heat-treated steel [ DE C22 / FR XC25 / IT C21 / SE 1450 /UK 070M20 / USA M1023 ] forged
size 50 - heat-treated steel [ DE C45 / FR 1C45 / IT C45 / SE 1650 / UK 080M46 / Aisi 1045 ] turned
Bearing bush - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished
