- GIXSW Series – Rod end with internal thread made of heat-treated steel, zinc-plated, with PTFE liner (maintenance-free). Suitable for use under high tensile/compressive loads.
:

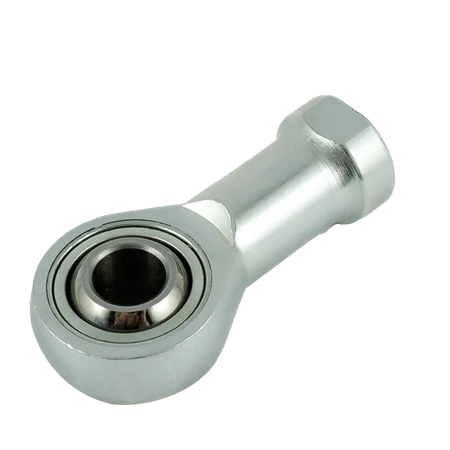

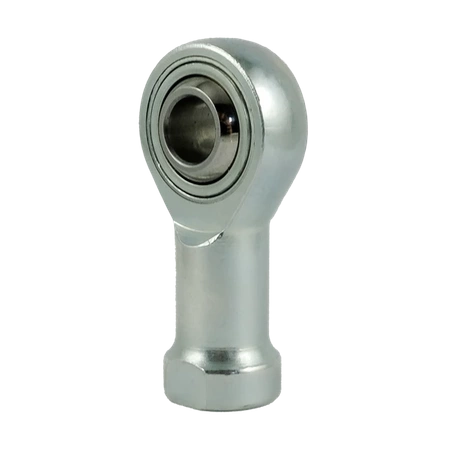

FLURO GIXSW Rod End
GIXSW Series - Rod end with internal thread made of heat-treated steel, zinc-plated, with PTFE liner (maintenance-free).
Suitable for high dynamic tensile/compressive loads. Dimensional series K - maintenance-free design.
Friction pair: steel/PTFE
Housing: heat-treated steel [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA Aisi 4140], forged
Bearing bushing - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished
Marchio
Simbolo
GIXSW 20
Tipo
Fluro GIXSW - Series
Filettatura
M20x1.5
Tipo di Filettatura
Interno destro
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
50 / 1.97"
W - Larghezza interna dell'anello [mm /inch]
25 / 0.99"
T - Larghezza esterna dell'anello [mm /inch]
18 / 0.71"
L- Lunghezza [mm /inch]
77 / 3.03"
GM - Lunghezza filettatura [mm /inch]
33 / 1.30"
Angolo di rotazione
28°
Carico statico massimo [kN / lbs]
93.5 / 21019.64
Carico dinamico massimo [kN / lbs]
78.0 / 17535.10
Peso
415 g / 0.915 lbs
