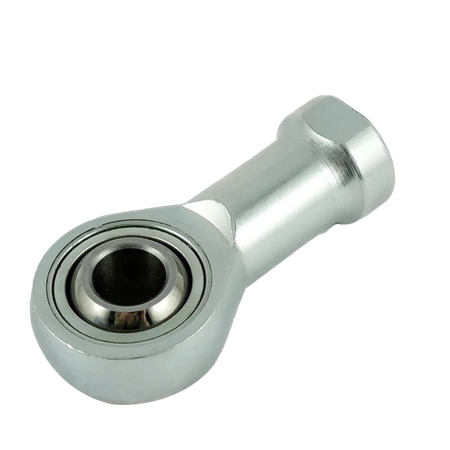

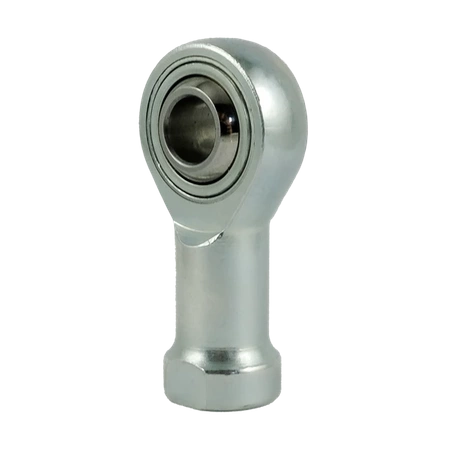

Rod End / Tie Rod End - Uniball GIOW 14 FLURO - M14 Right (Female)
Rod End / Tie Rod End - Uniball GIOW 14 FLURO - M14 Right (Female)
- GIOW Series - Rod end with an internal thread made of free-cutting steel or heat-treated steel, zinc-plated, maintenance-free. Application for low axial forces and incomplete rotation.
:
FLURO GIOW Rod End
GIOW Series - Rod end with an internal thread made of free-cutting steel or heat-treated steel, zinc-plated, maintenance-free.
Application for low axial forces and incomplete rotation. Dimensional series K - maintenance-free.
Friction pair: steel / PTFE
Housing:
up to size 12 - free-cutting steel [ DE 9SMnPb28K, FR S250Pb, IT CF9CMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 14 - heat-treated steel [DE C22, FR XC25, IT C21, SE 1450, UK 070M20, USA M1023], forged, PTFE layer on the spherical surface.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / USA Aisi 52100 ] hardened, ground, polished.
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
36 / 1.42"
W - Larghezza interna dell'anello [mm /inch]
19 / 0.75"
T - Larghezza esterna dell'anello [mm /inch]
13.5 / 0.53"
L- Lunghezza [mm /inch]
57 / 2.24"
GM - Lunghezza filettatura [mm /inch]
25 / 0.98"
Angolo di rotazione
32°
Carico statico massimo [kN / lbs]
26.0 / 5845.03
Carico dinamico massimo [kN / lbs]
5.0 / 1124.04
Peso
170 g / 0.375 lbs
