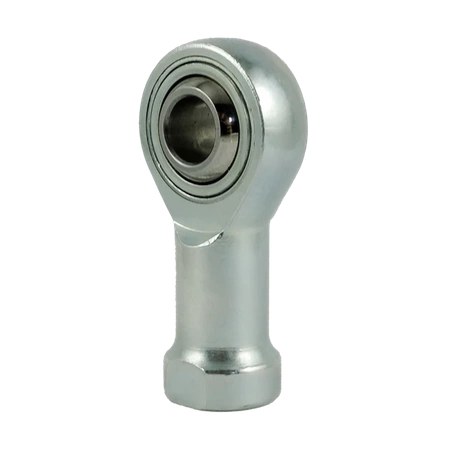

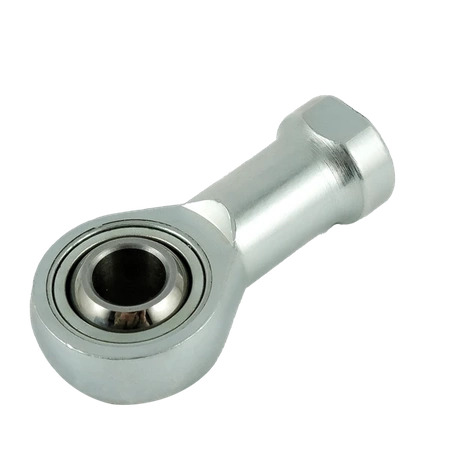

Rod End / Tie Rod End - Uniball GIOW 4 FLURO - M4 Right (Female)
Rod End / Tie Rod End - Uniball GIOW 4 FLURO - M4 Right (Female)
- GIOW Series - Rod end with an internal thread made of free-cutting steel or heat-treated steel, zinc-plated, maintenance-free. Application for low axial forces and incomplete rotation.
:
FLURO GIOW Rod End
GIOW Series - Rod end with an internal thread made of free-cutting steel or heat-treated steel, zinc-plated, maintenance-free.
Application for low axial forces and incomplete rotation. Dimensional series K - maintenance-free.
Friction pair: steel / PTFE
Housing:
up to size 12 - free-cutting steel [ DE 9SMnPb28K, FR S250Pb, IT CF9CMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 14 - heat-treated steel [DE C22, FR XC25, IT C21, SE 1450, UK 070M20, USA M1023], forged, PTFE layer on the spherical surface.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / USA Aisi 52100 ] hardened, ground, polished.
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
14 / 0.55"
W - Larghezza interna dell'anello [mm /inch]
7 / 0.28"
T - Larghezza esterna dell'anello [mm /inch]
5.25 / 0.21"
L- Lunghezza [mm /inch]
24 / 0.94"
GM - Lunghezza filettatura [mm /inch]
12 / 0.47"
Angolo di rotazione
28°
Carico statico massimo [kN / lbs]
5.2 / 1169.01
Carico dinamico massimo [kN / lbs]
0.8 / 179.85
Peso
11 g / 0.024 lbs
