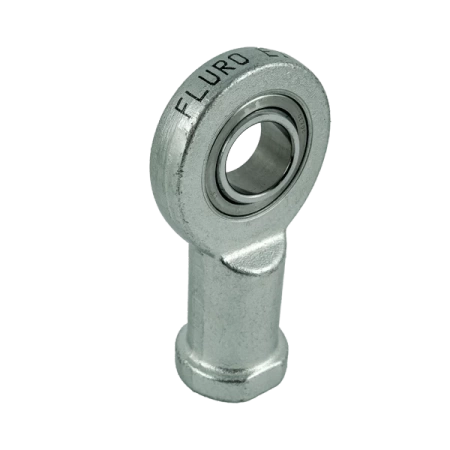

Rod end / linkage head - uniball EIL 17 D FLURO - M16 right-hand internal (female)
Rod end / linkage head - uniball EIL 17 D FLURO - M16 right-hand internal (female)
- EI series - rod end head, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.
:
FLURO EI Rod End
EI Series - rod end, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with a maintenance-free spherical bearing.
For use in high, unidirectional loads and limited installation width.
Dimensional series E - maintenance-free.
Friction pair: steel / PTFE
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing - maintenance-free steel / PTFE GE...EC bearing
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
46 / 1.81"
W - Larghezza interna dell'anello [mm /inch]
14 / 0.55"
T - Larghezza esterna dell'anello [mm /inch]
11 / 0.43"
L- Lunghezza [mm /inch]
67 / 2.64"
GM - Lunghezza filettatura [mm /inch]
33 / 1.30"
Angolo di rotazione
20°
Carico statico massimo [kN / lbs]
54.5 / 12252.09
Carico dinamico massimo [kN / lbs]
22.5 / 5058.20
Peso
220 g / 0.485 lbs
