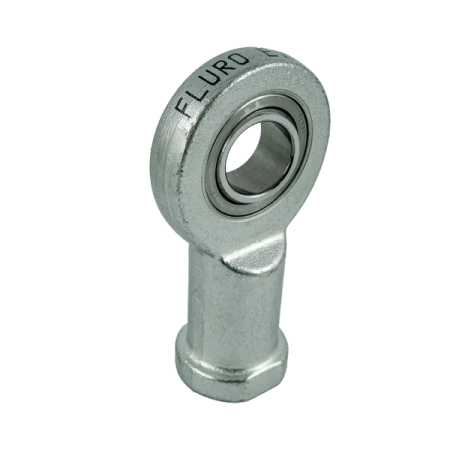

Rod end / linkage head - uniball EIL 6 FLURO - M6 left-hand internal (female)
Rod end / linkage head - uniball EIL 6 FLURO - M6 left-hand internal (female)
- Series EI – rod end, dimensional series E with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with a steel/steel spherical plain bearing (requires lubrication).
:
FLURO EI Rod End
EI Series – rod end, dimension series E with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical bearing (requires lubrication).
For use under high, variable loads and limited installation width.
Dimension series E – requiring maintenance
Sliding pair: steel / steel
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing – steel/steel bearing GE...E requiring lubrication
Lubrication: up to size 17 not lubricable
from size 20 with hydraulic grease nipple DIN 71412
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
21 / 0.83"
W - Larghezza interna dell'anello [mm /inch]
6 / 0.24"
T - Larghezza esterna dell'anello [mm /inch]
4.4 / 0.17"
L- Lunghezza [mm /inch]
30 / 1.18"
GM - Lunghezza filettatura [mm /inch]
12 / 0.47"
Angolo di rotazione
26°
Carico statico massimo [kN / lbs]
10.3 / 2315.53
Carico dinamico massimo [kN / lbs]
3.6 / 809.31
Peso
21 g / 0.046 lbs
