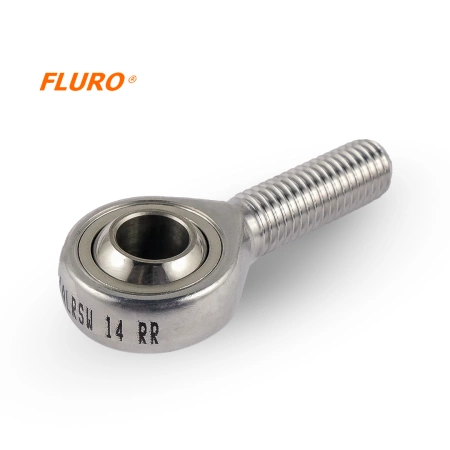

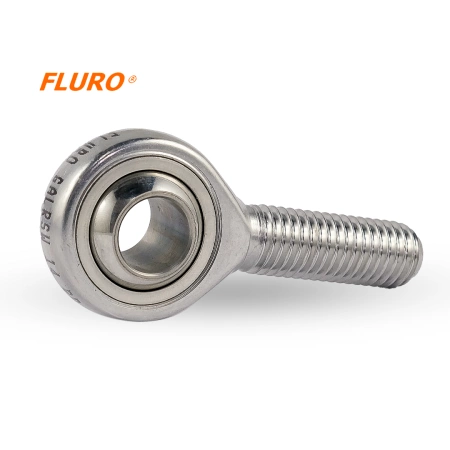

Rod end / linkage head - uniball GALRSW 10 RR FLURO - M10 left-hand external (male)
Rod end / linkage head - uniball GALRSW 10 RR FLURO - M10 left-hand external (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Marchio
Simbolo
GALRSW 10 RR
Tipo
Fluro GARSW - Series
Filettatura
M10
Tipo di Filettatura
Sinistra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
28 / 1.10"
W - Larghezza interna dell'anello [mm /inch]
14 / 0.55"
T - Larghezza esterna dell'anello [mm /inch]
10.5 / 0.41"
L- Lunghezza [mm /inch]
48 / 1.89"
GM - Lunghezza filettatura [mm /inch]
28 / 1.10"
Angolo di rotazione
26°
Carico statico massimo [kN / lbs]
25.5 / 5732.63
Carico dinamico massimo [kN / lbs]
23.4 / 5260.53
Peso
56g / 0.12346 lbs
