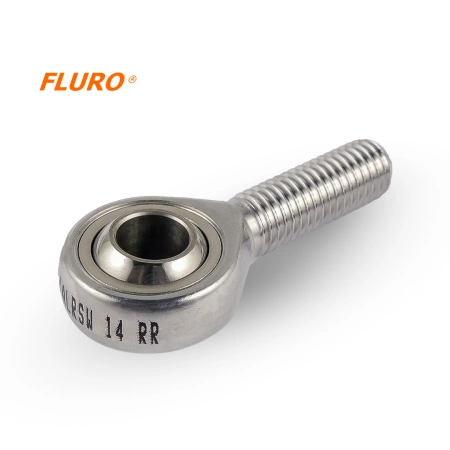

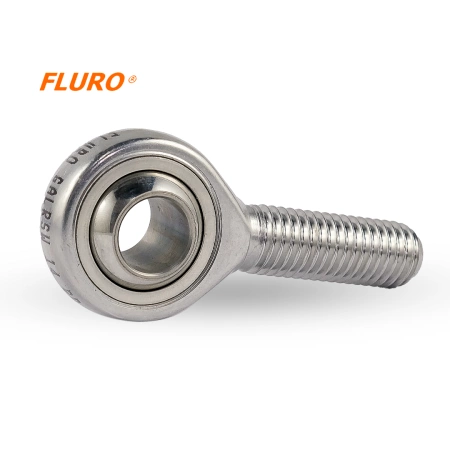

Rod end / linkage head - uniball GALRSW 16 RR FLURO - M16 left-hand external (male)
Rod end / linkage head - uniball GALRSW 16 RR FLURO - M16 left-hand external (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Marchio
Simbolo
GALRSW 16 RR
Tipo
Fluro GARSW - Series
Filettatura
M16
Tipo di Filettatura
Sinistra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
42 / 1.65"
W - Larghezza interna dell'anello [mm /inch]
21 / 0.83"
T - Larghezza esterna dell'anello [mm /inch]
15 / 0.59"
L- Lunghezza [mm /inch]
66 / 2.60"
GM - Lunghezza filettatura [mm /inch]
40 / 1.57"
Angolo di rotazione
30°
Carico statico massimo [kN / lbs]
60.5 / 13600.94
Carico dinamico massimo [kN / lbs]
52.5 / 11802.47
Peso
189 g / 0,41667 lbs
