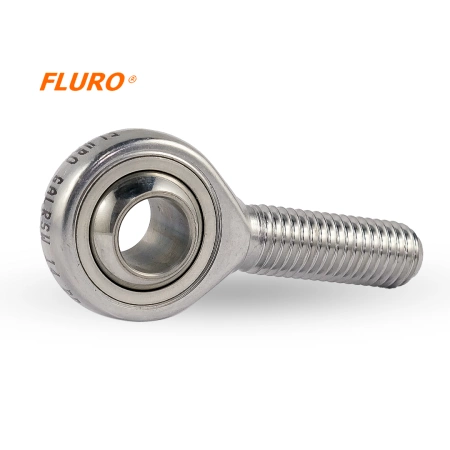

Rod end / linkage head - uniball GALRSW 18 RR FLURO - M18x1.5 left-hand external (male)
Rod end / linkage head - uniball GALRSW 18 RR FLURO - M18x1.5 left-hand external (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Marchio
Simbolo
GALRSW 18 RR
Tipo
Fluro GARSW - Series
Filettatura
M18x1.5
Tipo di Filettatura
Sinistra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
46 / 1.81"
W - Larghezza interna dell'anello [mm /inch]
23 / 0.91"
T - Larghezza esterna dell'anello [mm /inch]
16.5 / 0.65"
L- Lunghezza [mm /inch]
72 / 2.84"
GM - Lunghezza filettatura [mm /inch]
44
Angolo di rotazione
30°
Carico statico massimo [kN / lbs]
73.0 / 16411.05
Carico dinamico massimo [kN / lbs]
64.0 / 14387.77
Peso
267 g / 0.59 lbs
