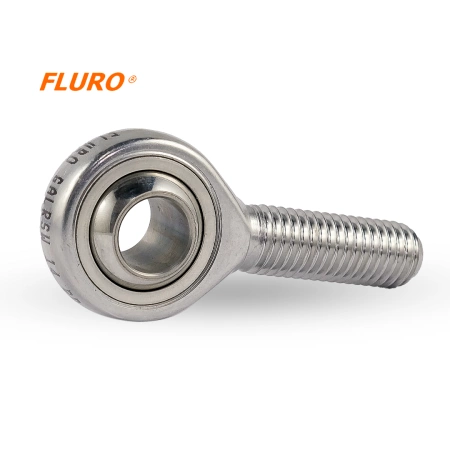

Rod end / linkage head - uniball GALRSW 25 RR FLURO - M24x2 left-hand external (male)
Rod end / linkage head - uniball GALRSW 25 RR FLURO - M24x2 left-hand external (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Marchio
Simbolo
GALRSW 25 RR
Tipo
Fluro GARSW - Series
Filettatura
M24x2.0
Tipo di Filettatura
Sinistra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
60 / 2.36"
W - Larghezza interna dell'anello [mm /inch]
31 / 1.22"
T - Larghezza esterna dell'anello [mm /inch]
22 / 0.87"
L- Lunghezza [mm /inch]
94 / 3.70"
GM - Lunghezza filettatura [mm /inch]
57 / 2.24"
Angolo di rotazione
30°
Carico statico massimo [kN / lbs]
118.0 / 26527.46
Carico dinamico massimo [kN / lbs]
122.0 / 27426.69
Peso
600 g / 1.323 lbs
