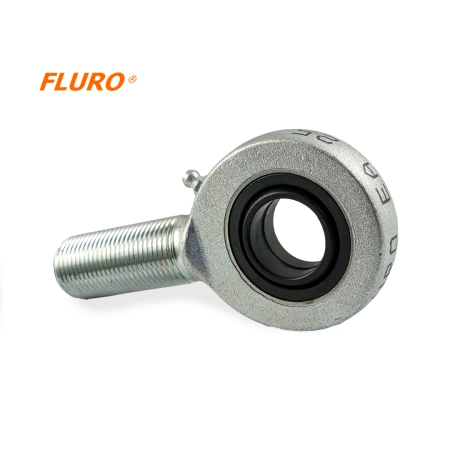

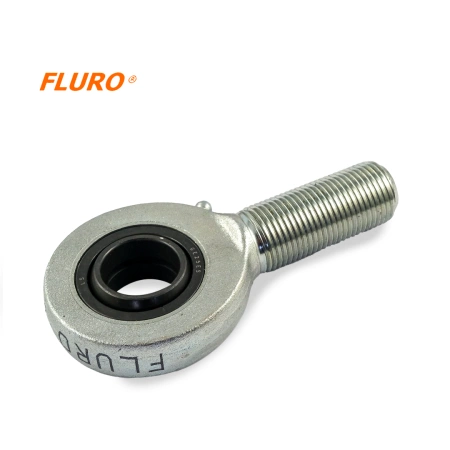

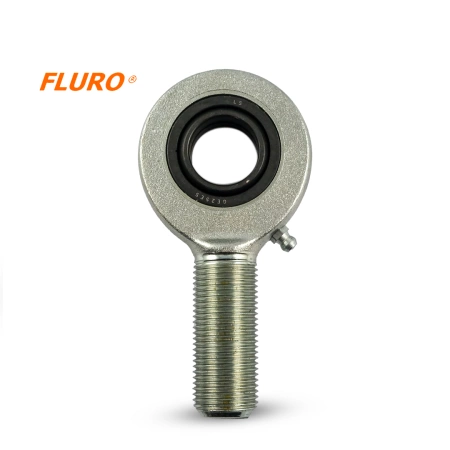

Rod end / linkage head – uniball EA 20 FLURO – M20x1.5 right-hand external (male) thread.
Rod end / linkage head – uniball EA 20 FLURO – M20x1.5 right-hand external (male) thread.
- EA series – rod head, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing (requires lubrication).
:
FLURO EA Rod End
EA Series – rod end, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing.
For use under high, variable loads and in narrow installation widths.
Dimensional series E – requires lubrication.
Friction pair: steel / steel
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing – lubrication-required bearing steel / PTFE GE...EC
Lubrication – up to size 17 no lubrication option, from size 20 with hydraulic grease fitting DIN 71412
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
53 / 2.09"
W - Larghezza interna dell'anello [mm /inch]
16 / 0.63"
T - Larghezza esterna dell'anello [mm /inch]
13 / 0.51"
L- Lunghezza [mm /inch]
78 / 3.07"
GM - Lunghezza filettatura [mm /inch]
43 / 1.69"
Angolo di rotazione
18°
Carico statico massimo [kN / lbs]
62.5 / 14050.56
Carico dinamico massimo [kN / lbs]
30.0 / 6744.26
Peso
320 g / 0.705 lbs
