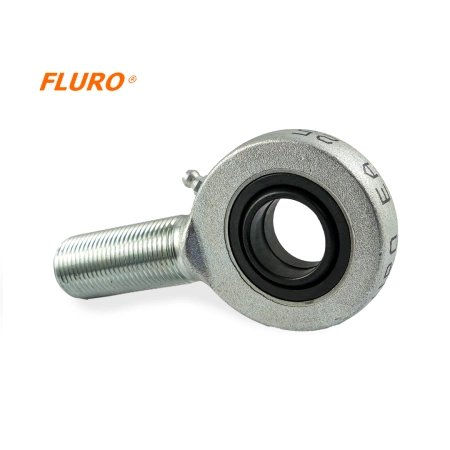

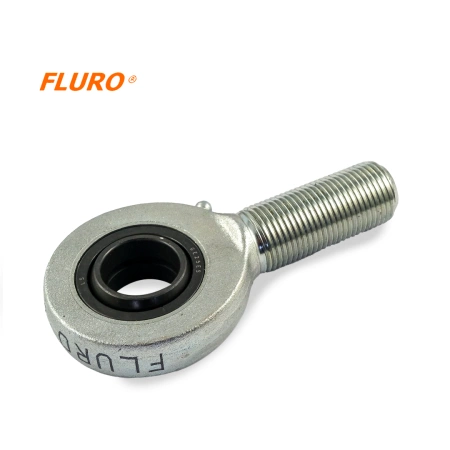

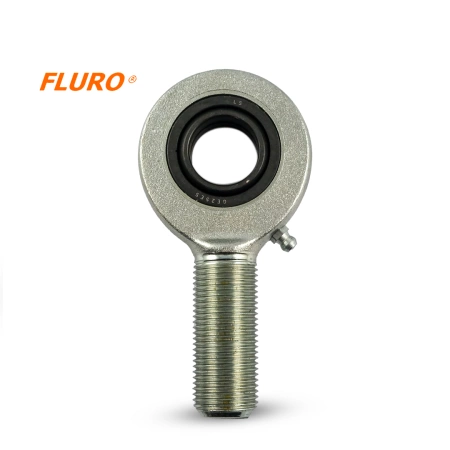

Rod end / linkage head – uniball EA 30 FLURO – M30x2 right-hand external (male) thread.
Rod end / linkage head – uniball EA 30 FLURO – M30x2 right-hand external (male) thread.
- EA series – rod head, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing (requires lubrication).
:
FLURO EA Rod End
EA Series – rod end, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing.
For use under high, variable loads and in narrow installation widths.
Dimensional series E – requires lubrication.
Friction pair: steel / steel
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing – lubrication-required bearing steel / PTFE GE...EC
Lubrication – up to size 17 no lubrication option, from size 20 with hydraulic grease fitting DIN 71412
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
73 / 2.87"
W - Larghezza interna dell'anello [mm /inch]
22 / 0.87"
T - Larghezza esterna dell'anello [mm /inch]
19 / 0.75"
L- Lunghezza [mm /inch]
110 / 4.33"
GM - Lunghezza filettatura [mm /inch]
65 / 2.56"
Angolo di rotazione
12°
Carico statico massimo [kN / lbs]
124.0 / 27876.31
Carico dinamico massimo [kN / lbs]
62.0 / 13938.15
Peso
890 g / 1.962 lbs
