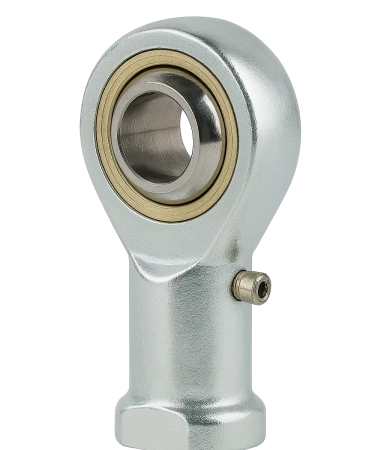

Rod end / linkage head - uniball GI 6 FLURO - M6 right-hand internal (female)
Rod end / linkage head - uniball GI 6 FLURO - M6 right-hand internal (female)
- GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple. Particularly suitable for axial loads.
:
FLURO GI Rod End
GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple.
Particularly suitable for axial loads.
Sliding pair: steel / brass.
Housing:
up to size 12 – free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L13 ] turned
from size 14 – heat-treatable steel [ DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023 ] forged
Bearing shell – special brass CuZn40Al1
Inner ring – bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100 ] hardened, ground, polished
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
20 / 0.79"
W - Larghezza interna dell'anello [mm /inch]
9 / 0.35"
T - Larghezza esterna dell'anello [mm /inch]
6.75 / 0.27"
L- Lunghezza [mm /inch]
30 / 1.18"
GM - Lunghezza filettatura [mm /inch]
12 / 0.47"
Angolo di rotazione
26°
Carico statico massimo [kN / lbs]
11.9 / 2675.23
Carico dinamico massimo [kN / lbs]
3.2 / 719.39
Peso
27 g / 0.060 lbs
