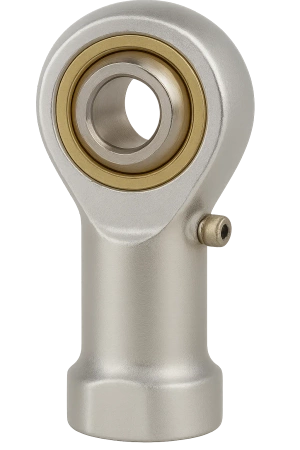

Rod end / linkage head - uniball GIRS 12 FLURO - M12 right-hand internal (female)
Rod end / linkage head - uniball GIRS 12 FLURO - M12 right-hand internal (female)
- GIRS Series – Rod end with internal thread made of stainless steel, re-lubricated through a concave ball grease fitting. Suitable for use in corrosion-prone areas.
:
FLURO GIRS Rod End
GIRS Series - Rod end with internal thread made of stainless steel, re-lubricated through concave ball grease fitting.
For use in corrosion-prone areas.
Friction pair: chrome steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.
Bearing shell - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
32 / 1.26"
W - Larghezza interna dell'anello [mm /inch]
16 / 0.63"
T - Larghezza esterna dell'anello [mm /inch]
13
L- Lunghezza [mm /inch]
50 / 1.97"
GM - Lunghezza filettatura [mm /inch]
22 / 0.87"
Angolo di rotazione
26°
Carico statico massimo [kN / lbs]
34.5 / 7754.11
Carico dinamico massimo [kN / lbs]
13.5 / 3034.92
Peso
115 g / 0.254 lbs
