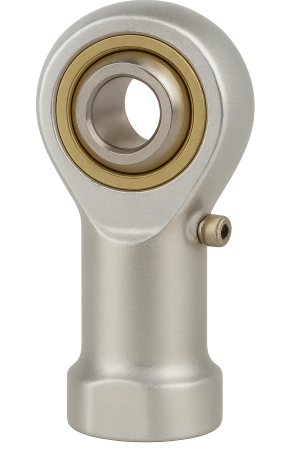

Rod end / linkage head - uniball GIRS 25 FLURO - M24x2 right-hand internal (female)
Rod end / linkage head - uniball GIRS 25 FLURO - M24x2 right-hand internal (female)
- GIRS Series – Rod end with internal thread made of stainless steel, re-lubricated through a concave ball grease fitting. Suitable for use in corrosion-prone areas.
:
FLURO GIRS Rod End
GIRS Series - Rod end with internal thread made of stainless steel, re-lubricated through concave ball grease fitting.
For use in corrosion-prone areas.
Friction pair: chrome steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.
Bearing shell - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.
Marchio
Simbolo
GIRS 25
Tipo
Fluro GIRS - Series
Filettatura
M24x2.0
Tipo di Filettatura
Interno destro
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
60 / 2.36"
W - Larghezza interna dell'anello [mm /inch]
31 / 1.22"
T - Larghezza esterna dell'anello [mm /inch]
22 / 0.87"
L- Lunghezza [mm /inch]
94 / 3.70"
GM - Lunghezza filettatura [mm /inch]
42 / 1.65"
Angolo di rotazione
30°
Carico statico massimo [kN / lbs]
118.0 / 26527.46
Carico dinamico massimo [kN / lbs]
47.1 / 10588.50
Peso
750 g / 1.653 lbs
