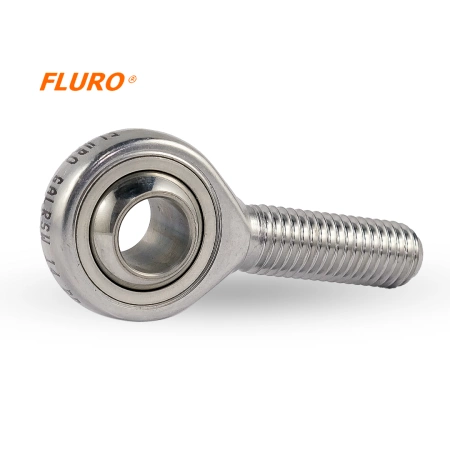

Tie rod end / tie rod end - uniball GARSW 35 RR FLURO - M36x2 right (male)
Tie rod end / tie rod end - uniball GARSW 35 RR FLURO - M36x2 right (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
:
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Marchio
Simbolo
GARSW 35 RR
Tipo
Fluro GARSW - Series
Filettatura
M36x2
Tipo di Filettatura
Destra Maschio
Specifiche
D - Diametro esterno della testa della rotula [mm /inch]
80 / 3.15"
W - Larghezza interna dell'anello [mm /inch]
43 / 1.69"
T - Larghezza esterna dell'anello [mm /inch]
28 / 1.10"
L- Lunghezza [mm /inch]
125 / 4.92"
GM - Lunghezza filettatura [mm /inch]
73 / 2.87"
Angolo di rotazione
38°
Carico statico massimo [kN / lbs]
191.0 / 42938.51
Carico dinamico massimo [kN / lbs]
206.0 / 46310.64
Peso
1600 g / 3.53 lbs
