- PMC Motorsport aluminiowy adapter (flansza / kryza) GM Chevrolet V8 LS - BMW ZF 310 / ZF 320 ZF 5 / ZF GS5-39DZ / ZF GS6-37DZ / GS6-53DZ HGA / Getrag 420G

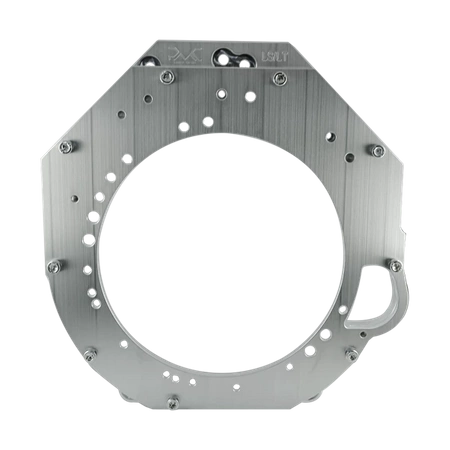

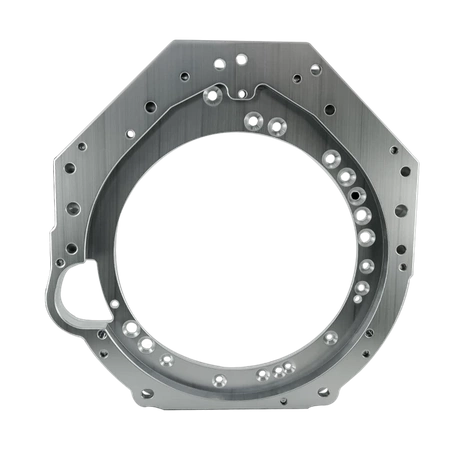

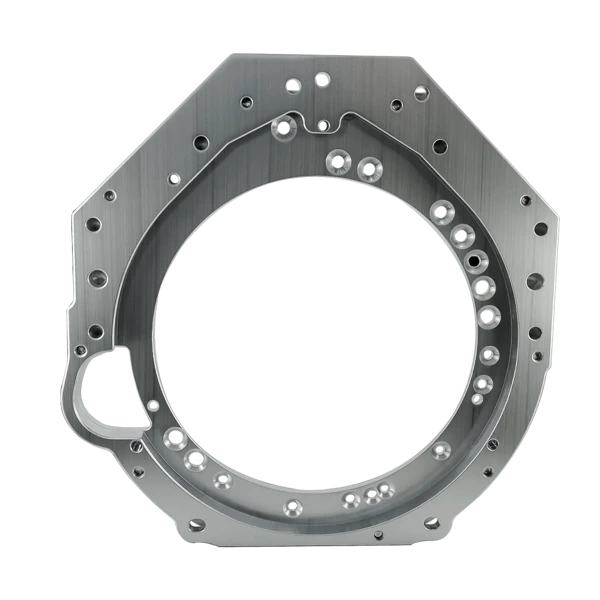

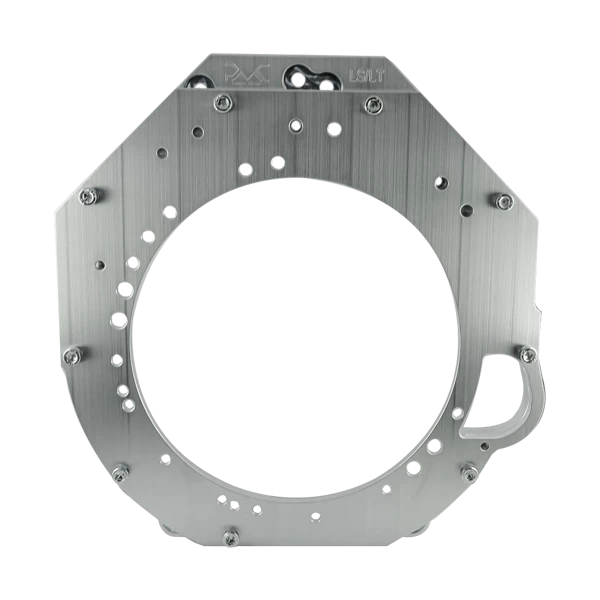

PMC Motorsport aluminiowy adapter (flansza / kryza) GM Chevrolet V8 LS - BMW ZF 310 / ZF 320 ZF 5 / ZF GS5-39DZ / ZF GS6-37DZ / GS6-53DZ HGA / Getrag 420G
Aluminiowy adapter umożliwiający połączenie (swap / konwersje) silnika GM Chevrolet LS LS1 LS3 LS6 LS7 LS9 LT1 LT4 LSA LSX Vortec z manualną skrzynią biegów ZF (ZF Friedrichshafen) / Getrag z BMW.
Dlaczego warto wybrać skrzynie biegów z BMW?
Dostępność i cena. Miliony wyprodukowanych samochodów i ich dostępność na całym święcie gwarantuje dostępność części zamiennych. Części, jak i kompletne skrzynie są łatwo dostępne w serwisach ASO i na rynku wtórnym.
Wytrzymałość i niezawodność. Skrzynie biegów BMW ZF / Getrag od wielu lat z powodzeniem używane są zarówno w amatorskim, jak i profesjonalnym motosporcie. Potrafią przenieść bardzo duży moment obrotowy (niektóre modele 1000Nm+), przy czym gwarantują dużą niezawodność. Idealnie nadają się do SWAP-u w Projektach o dużej mocy przeznaczonych do użytku codziennego.
Szybkość i wygoda. W przypadku zostawania automatycznych skrzyń biegów nowej generacji ZF 8HP lub Getrag DCT DKG zyskujemy ultraszybki czas akcji na zmianę biegów (0,2 sekundy).
Dlaczego warto wybrać części i adaptery PMC Motorsport?
Doświadczenie. Tysiące wyprodukowanych adapterów i zadowolonych Klientów na całym świecie. Adapter PMC Motorsport używane są zarówno w samochodach typu Daily, jak i w profesjonalnych projektach przeznaczonych do zawodowego motorsportu.
Profesjonalizm. Od projektu do wdrożenia nasze części przechodzą długą drogę. Każdy element, do którego produkujemy części, został przez nas zmierzony ramieniem pomiarowym oraz skanerem 3D. Prototyp podawanych jest licznym testom, aby wyeliminować wszystkie możliwe problemy w jego użytkowaniu. Do naszej produkcji używamy tylko certyfikowanych materiałów od sprawdzonych dostawców. Posiadamy nowoczesny park maszyn CNC oraz doświadczonych pracowników.
Jakość. Od początku stawiamy na jakość wytwarzanych przez nas części. Po każdym etapie produkcji element jest kontrolowany. Każdy wyprodukowany przez nas podzespół jest grawerowany z numerem seryjnym produkcji. Jakość potwierdzamy certyfikatem ISO PN-EN ISO 9001:2015
Idealna współosiowość -nasze adaptery gwarantują idealne spasowanie silnika i skrzyni biegów
Made in EU. Całość naszej produkcji oraz dział projektowy zlokalizowane są na terenie Unii Europejskiej
Zakup pojedynczego elementu. w naszej ofercie posiadamy każdy element naszego zestawu, który można kupić osobno. Jeżeli potrzebujesz cześci zamiennej napisz do nas office@pmcmotorsport.com
Szybka międzynarodowa wysyłka. Nasze produkty wysyłamy do wszystkich krajów świata. Do krajów Unii europejskiej (oprócz wysp) oraz Wielkiej Brytanii ceny wysyłki wyliczane są automatycznie. W przypadku krajów nie będących na liście po zakupie nasz zespół prześle kalkulację wysyłki.
VAT 0% - dla Klientów posiadających aktywnym europejski VAT (opcja dla Klientów B2B spoza terenów Polski)
Pomoc w wyborze oraz Wsparcie posprzedażowe. Zespół PMC Motorsport pomoże Ci wybrać odpowiedni zestaw dla Ciebie. A w razie wątpliwości podczas montażu udzieli wsparcia technicznego. Możesz się z nami skontaktować przez Facebook, Instagram oraz email: office@pmcmotorsport.com
Pasujące silniki: |
|
Pasujące manualne skrzynie biegów BMW (Benzyna): |
|
Pasujące manualne skrzynie biegów BMW (Diesel) : |
|
Instrukcja montażu
GM 5.7 Liter V8 Small Block LS1 Engine
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
Predecessor: LT1 / Gen 2 Small Block
Successor: LS6
Assembly: Saint Catherines, Ontario, Canada
Specifications
Type: | 5.7L V8 Gen III Small Block |
Engine Orientation: | Longitudinal |
Engine Mass (kg/lbs): | 177 / 390 |
Displacement: | 5,665cc (5.7L; 346ci) |
Compression ratio: | 10.1.:1 |
Bore x stroke: | 99.06 x 91.948mm |
Bore Center (mm): | 111.76 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Fuel system: | Sequential fuel injection |
Recommended fuel: | Regular Unleaded |
Emissions controls | |
Catalytic converter | |
Positive crankcase ventilation | |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast Iron |
Main bearing caps: | Steel |
Crankshaft: | Cast Iron |
Camshaft: | Billet Steel |
Connecting rods: |
Forged Powder Metal |
Vehicle Applications
- 1997-2000 Chevrolet Corvette
- 2001-2004 Chevrolet Corvette
- 1998-2000 Chevrolet Camaro Z28
- 1998-2000 Chevrolet Camaro SS
- 2001-2002 Chevrolet Camaro Z28
- 2001-2002 Chevrolet Camaro SS
- 1998-2000 Pontiac Firebird Formula
- 1998-2000 Pontiac Firebird Trans Am
- 2001-2002 Pontiac Firebird Formula
- 2001-2002 Pontiac Firebird Trans Am
- 1999–2000 Holden VT.II Commodore, VT.II Calais
- 1999–2003 Holden Statesman, Caprice
- 2000–2002 Holden VX Commodore, VX Berlina, VX Calais, VU Ute
- 2001–2002 Holden Monaro
- 2002-2003 Holden Commodore SV8 and SS, Ute S and SS, Monaro
- 2003-2004 Holden Berlina, Ute S, One Tonner S
- 2003-2004 Holden Commodore SV8 and SS, Calais, Ute SS, Caprice
- 2003-2004 Holden Monaro
- 2003-2004 Holden Statesman
- 2003-2005 Holden Adventra
- 2003-2005 Holden VY.II Crewman
- 2004-2005 Holden Berlina, Calais, One Tonner, Crewman
- 2004-2005 Holden Statesman
- 2004-2005 Holden Commodore SV8 and SS, Ute SS
- 2004-2005 Holden Caprice
- 2004-2005 Holden Monaro
- 2005-2006 Holden Adventra
- 1999–2000 Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange
- 2000-2002 Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange
- 2001-03 Holden Special Vehicles HSV V2.I GTO Coupe
- 2002-2003 Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo
- 2003 Holden Special Vehicles HSV V2.II GTO Coupe
- 2003-2004 Holden Special Vehicles HSV V2.III GTO Coupe
- 2003-2004 Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange
- 2003-2005 Holden Special Vehicles HSV Y-Series Avalanche
- 2004 Holden Special Vehicles HSV V2 Coupe 4
- 2004-2005 Holden Special Vehicles HSV Z-Series Coupe 4
- 2004-2005 Holden Special Vehicles HSV Y-Series Avalanche XUV
- 2000 Holden Special Vehicles – Callaway HSV VT.II GTS
- 2000–2001 Holden Special Vehicles – Callaway HSV VX GTS
- 2000-2001 Holden Special Vehicles – Callaway HSV VX Senator 300
- 2001–2002 Holden Special Vehicles – Callaway VX SV300
- 2001–2004 Holden Special Vehicles – Callaway HSV V2 GTS Coupe
- 2002–2004 Holden Special Vehicles – Callaway HSV Y-Series GTS
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
Type: | 6.0L Gen IV V8 Small Block |
Displacement: | 6.0L (5965cc / 364 ci) |
Engine orientation: | Longitudinal |
Compression ratio: | 10.9:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | Saint Catherines, Ontario, Canada |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 101.6 x 92mm |
Fuel system: | Sequential Port Fuel Injection |
Fuel type: | Premium Recommended |
Maximum Engine Speed: | 6500 RPM |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast Iron |
Main bearing caps: | Cast Iron |
Crankshaft: | Cast Iron |
Camshaft: | Billet Steel |
Connecting rods: | Forged Powder Metal |
Additional Features | |
Active Fuel Management | |
Electronic throttle control | |
Oil Life Monitor System | |
58x crank timing | |
Emissions Controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 6.2 Liter V8 Small Block LS3 Engine
Displacement: 6.2L / 376 cu. in.
Aspiration: Natural
Introduced: 2007 model year
Discontinued: –
Predecessor: LS6 / Gen 3 Small Block
Successor: LT1 / Gen V Small Block
Assembly: St. Catharines, Ontario, Canada
Specifications
Type: | 6.2L Gen IV V8 Small Block |
Engine Orientation; | Longitudinal |
Displacement: | 6162cc (376.0 ci) |
Compression ratio: | 10.7:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | St. Catharines, Ontario |
Assembly site for Corvette Grand Sport Manual Coupe: | Performance Build Center (PBC), Wixom, MI |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 103.25 x 92mm |
Fuel system: | Sequential fuel injection |
Fuel type: | Premium fuel recommended, not required |
Valves per cylinder; | 2 |
Bore Center (mm): | 111.76 |
Engine Mass (kg/lbs): | 183 / 403 |
Engine Mass (kg/lbs) Corvette Grand Sport Manual Coupe: | 211 / 466 |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast nodular iron |
Main bearing caps: | Powder metal |
Crankshaft: | Cast iron with undercut and rolled fillets |
Crankshaft Grand Sport Manual Coupe: | Forged steel crank |
Camshaft: | Hollow steel |
Connecting rods: | Forged powder metal |
Additional features | |
Extended life spark plugs | |
Extended life coolant | |
Dry Sump Oil Lubrication System – Grand Sport Manual Coupe Only | |
Oil level sensor | |
Oil Life System | |
Emissions controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation |
Vehicle Applications
- 2009-2015 Chevrolet Camaro SS Coupe and Convertible
- 2008-2013 Chevrolet Corvette and Corvette Grand Sport
- 2008-2013 Chevrolet Corvette w/ Optional Exhaust
- 2015-2017 Chevrolet SS
GM 5.7 Liter V8 Small Block LS6 Engine
Displacement: | 5.7L / 346 cu. in. |
---|---|
Aspiration: | Natural |
Introduced: | 2001 model year |
Discontinued: | 2005 |
Predecessor: | LS1 / Gen 3 Small Block |
Successor: | LS2 |
Assembly: | Saint Catherines, Ontario, Canada |
Specifications
Type: | 5.7L Gen III V8 Small Block |
Displacement: | 5.7L (5670cc / 346 ci) |
Engine orientation: | Longitudinal |
Engine Mass: 458 pounds / 207.745 kilograms | |
Compression ratio: | 10.5:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | St. Catherine's, Ontario, Canado |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 99 x 92mm |
Fuel system: | Sequential Port-fuel Injection |
Fuel type: | Premium Recommended |
Maximum Engine Speed: | 6500 RPM |
Emissions controls | |
Catalytic converter | |
Positive crankcase ventilation | |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast Iron |
Main bearing caps: | Steel |
Crankshaft: | Cast Iron |
Camshaft: | Billet Steel |
Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
Displacement: | 7.0L / 427 cu. in. |
---|---|
Aspiration: | Natural |
Introduced: | 2006 model year |
Discontinued: | 2015 |
Predecessor: | LS2 / Gen 3 Small Block |
Successor: | – |
Assembly: | Wixom, Michigan |
Specifications
Type: | 7.0L Gen IV V8 Small Block |
Displacement: | 7008 cc (427.6 ci) |
Engine Orientation: | Longitudinal |
Compression ratio: | 11.0:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | Performace Build Center in Wixom, Michigan |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 104.8 X 101.6 |
Bore Center (mm): | 111.76 |
Bore Area (cm2) (total engine bore area): | 689.75 |
Fuel system: | Sequential fuel injection |
Fuel Type: | Premium Fuel required |
Engine Mass (kg/lbs): | 206 / 454 |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Stainless Steel |
Main bearing caps: | Forged steel |
Crankshaft: | Forged 4140 steel |
Camshaft: | Hollow steel |
Connecting rods: | Forged Titanium |
Additional features | |
Extended life spark plugs | |
Titanium Intake Valves | |
Extended life coolant | |
Oil level sensor | |
Oil Life System | |
Emissions controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
GM 6.2 Liter V8 Supercharged LSA Engine
Displacement: | 6.2L / 376 cu. in. |
---|---|
Aspiration: | Supercharged |
Introduced: | 2009 model year |
Discontinued: | 2015 |
Predecessor: | LS3 / Gen IV Small Block |
Successor: | LT4 / Gen V Small Block |
Assembly: | St. Catharines, Ontario, Canada |
Specifications
Type: | 6.2L Gen IV V8 Small Block |
Displacement: | 6162 cc (376 ci) |
Engine Orientation | Longitudinal |
Compression ratio: | 9.1:1 |
Valve configuration: | Overhead valves (2 valves per cylinder) |
Assembly site: | Silao, Mexico |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 103.25 x 92 mm |
Fuel system: | Sequential fuel injection |
Fuel Type: | Premium required |
Maximum Engine Speed: | 6200 RPM |
Materials | |
Block: | Cast aluminum |
Cylinder head: | A356-T6 rotocast cast aluminum |
Intake manifold: | Cast aluminum |
Exhaust manifold CTS: | High silicon / high moly cast iron |
Exhaust manifold Camaro: | Cast stainless steel |
Main bearing caps: | Nodular Iron |
Crankshaft: | Forged steel |
Camshaft: | Hollow steel |
Connecting rods: | Forged powder metal |
Additional features | |
1.9 L/rev Supercharger | |
Integrated single coolant to air intercooler | |
Piston oil spray cooling | |
Direct mount ignition coils | |
Emissions controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation | |
Valves per cylinder | 2 |
Bore Center (mm) | 111.76 |
Vehicle Applications
- 2012-2015 Chevrolet Camaro ZL1
- 2008-2013 Cadillac CTS-V
GM 6.2 Liter V8 Small Block LT1
Displacement: | 6.2L / 376 cu. in. |
Aspiration: | Natural |
Introduced: | 2014 model year |
Discontinued: | - |
Predecessor: | LS3 / Gen 4 Small Block |
Successor: | LT2 |
Assembly: | Tonawanda, New York |
Specifications
Type: | 6.2L Gen V V8 Small Block |
Displacement: | 6.2L (6162cc / 376 ci) |
Engine orientation: | Longitudinal |
Compression ratio: | 11.5:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | Tonawanda, New York, USA |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 103.25 x 92mm |
Fuel system: | Direct Injection |
Fuel type: | Premium Recommended |
Maximum Engine Speed: | 6600 RPM |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast Nodular Iron |
Main bearing caps: | Cast Nodular |
Crankshaft: | Forged Steel |
Camshaft: | Billet Steel |
Connecting rods: | Forged Powder Metal |
Additional Features | |
Active Fuel Management | |
Variable Valve Timing (VVT) | |
Electronic throttle control | |
Extended life accessory drive belt | |
Extended life coolant | |
Extended life spark plugs | |
Oil Life Monitor System | |
Dexos 5W30 | |
Dual-pressure control and variable displacement oil pump | |
58x crank timing | |
Emissions Controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation |
Vehicle Applications
- 2014 Chevrolet C7 Corvette Stingray Base Exhaust
- 2014 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Base Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2017-2019 Chevrolet C7 Corvette Grand Sport
- 2016-present Chevrolet Camaro SS
- 2020-present Chevrolet Camaro LT1
GM 6.2 Liter Supercharged Small Block V8 LT4
Displacement: | 6.2L / 376 cu. in. |
Aspiration: | Forced Induction (Supercharger) |
Introduced: | 2014 model year |
Discontinued: | - |
Predecessor: | LS9 / Gen 4 Small Block |
Successor: | - |
Assembly: | Tonawanda, New York (Z06, CTS-V, ZL1); Performance Build Center, Bowling Green Kentucky (CT5-V Blackwing) |
Specifications
Displacement: | 6162cc (376 ci) |
Engine Orientation: | Longitudinal |
Compression ratio: | 10.0:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly sites | |
For CTS-V, Camaro ZL1 | Tonawanda, New York |
For Corvette Z06: | Bowling Green, Kentucky |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 103.25 x 92mm |
Fuel system: | DI |
Fuel Type: | Premium required |
Maximum Engine Speed: | 6600 RPM |
Drive Belt Rib Count: | 8 |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Cast Aluminum Supercharger |
Exhaust manifold: | Cast Stainless (Corvette) or Fabricated Stainless (CTS-V) |
Main bearing caps: | Cast Nodular |
Crankshaft: | Forged steel |
Camshaft: | Billet Steel |
Connecting rods: | Forged Powder Metal |
Emissions Controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation | |
Additional Features | |
1.74 L/rev Supercharger | |
Integrated dual coolant-to-air-intercoolers | |
Active Fuel Management | |
Variable Valve Timing (VVT) | |
Electronic throttle control | |
Extended life coolant | |
Extended life spark plugs | |
Oil Life Monitor System | |
Dexos 5W30 | |
Dual-pressure control and variable displacement oil pump | |
Dry sump (Corvette only) | |
58x crank timing |
Vehicle Applications
- 2015 – 2019 Chevrolet C7 Corvette Z06 GM
- 2015 – 2019 Chevrolet C7 Corvette Z06
- 2016 – 2019 Cadillac CTS-V Sedan
- 2017 – present Chevrolet Camaro ZL1
- 2017 – present Chevrolet Camaro ZL1
- 2022 – present Cadillac CT5-V Blackwing
- 2022 – present Cadillac CT5-V Blackwing
- 2023 – present Cadillac Escalade-V
BMW ZF (ZF Friedrichshafen S6-37) GS637DZ / GS6-37DZ - THES HES THED HED TJEM JEM TBEY BEY TBEO BEO 6-biegów
- BMW Engine : M47N (204D4-EU3 / 204D4-EU4) / M47N2 204D4
- BMW OE : 23 00 7 562 730 / 23 00 7562730 / 23 00 7562730 23 00 7 525 137 / 23 00 7525137 / 23007525137 / 23 00 7 565 194 / 23 00 7565194 / 23007565194 / 23 00 7 562 724 / 23 00 7562724 / 23007562724 / 23 00 7 545 386 / 23 00 7545386 / 23007545386
- Bell housing : 1067 401 045 / 1067401045
- Other numbers : 23 00 7553936 / 23007553936 / 23 00 7565193 / 23007565193 / 23 00 7553934 / 23007553934 / 23 00 7545385 / 23007545385
ZF GS6-37DZ Gear Ratios | ||||||
---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | |
5.149 | 2.830 | 1.790 | 1.260 | 1.000 | 0.830 |
BMW 1-Series 1er E87
- BMW 118d M47N2 5-door ECE
- BMW 120d M47N2 5-door ECE
BMW 3-Series 3er E46
- BMW 320Cd M47N Cabrio ECE
- BMW 320Cd M47N Coupé ECE
- BMW 320d M47N Limousine ECE
- BMW 320d M47N Touring ECE
- BMW 320td M47N Compact EC
BMW 3-Series 3er E90
- BMW 320d M47N2 Limousine IND
- BMW 320d M47N2 Limousine ECE
BMW 3-Series 3er E91
- 320d M47N2 Touring ECE
BMW 5-Series 5er E60 / E60LCI
- BMW 520d M47N2 Limousine ECE
- BMW 520d M47N2 Limousine THA
BMW 5-Series 5er E61 / E61LC
- BMW 520d M47N2 Touring ECE
BMW ZF (ZF Friedrichshafen S5-39) GS539DZ / GS5-39DZ - THBA HBA THBC HBC THBG HBG THBM HBM THBK HBK 5-biegów
- BMW Engine : M57 306D1
- BMW OE : 23 00 1434505 / 23001434505 / 23 00 7501342 / 23007501342 / 23 00 7508031 / 23007508031 / 23 00 7508772 / 23007508772 / 23 00 7518077 / 2300 7518077
- Bell housing : 1065 401 011 / 1065401011
- Other number : 1434256
ZF GS5-39DZ Gear Ratios | |||||
---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | R |
5.240 | 2.910 | 1.810 | 1.270 | 1.000 | 4.850 |
BMW 3 - Series 3er E46
- BMW 330Cd M57 Limousine ECE
- BMW330Cd M57 Touring ECE
BMW 5 - Series 5er E39
- BMW 525d M57 Limousine ECE
- BMW 525d M57 Touring ECE
- BMW 530d M57 Limousine ECE
- BMW 530d M57 Touring ECE>
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGA code HGA 6-biegów
- BMW Engine : M57N 306D2-EU4 / 306D2-EU3
- BMW OE : 23 00 7 531 346 / 23 00 7531346 / 23007531346
- Bell housing : 1067 401 061 / 1067301061
- Sticker number: 1067 010 001 / 23.00-7522202 / 23 00 7522202 / 23007522202
ZF GS6-53DZ Gear Ratios | ||||||
---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | R |
5.080 | 2.804 | 1.260 | 1.270 | 1.000 | 0.835 | 4.607 |
BMW 3- Series 3er E46
- BMW 330Cd M57N Cabrio ECE
- BMW 330Cd M57N Coupé ECE
- BMW 330Cd M57N Limousine ECE
- BMW 330Cd M57N Touring ECE
BMW OE:
23 00 1 222 400
23 00 1 282 373
23 00 1 434 409
23 00 1 222 069
23 00 1 222 401
23 00 1 222 182
23 00 1 434 301
23 00 1 434 579
23 00 1 222 198
23 00 1 221 976
23 00 1 221 837
23 00 1 434 580
23 00 1 434 300
