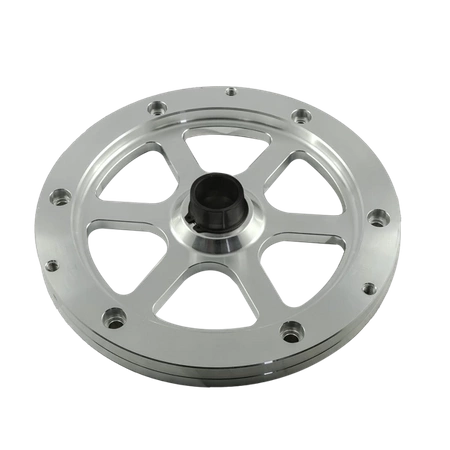

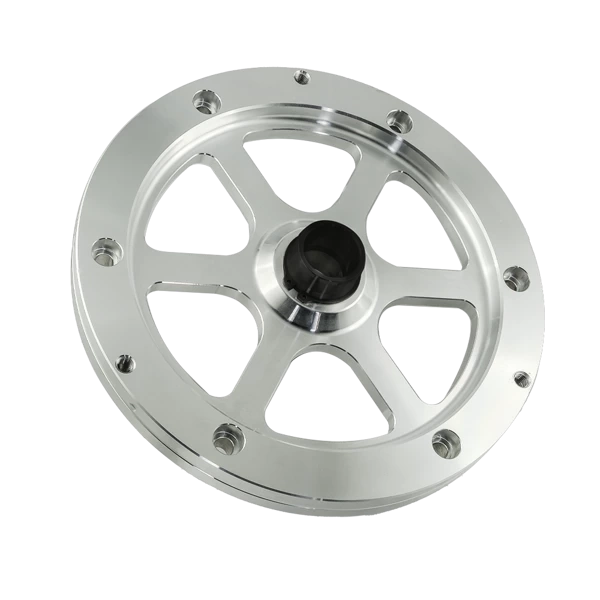

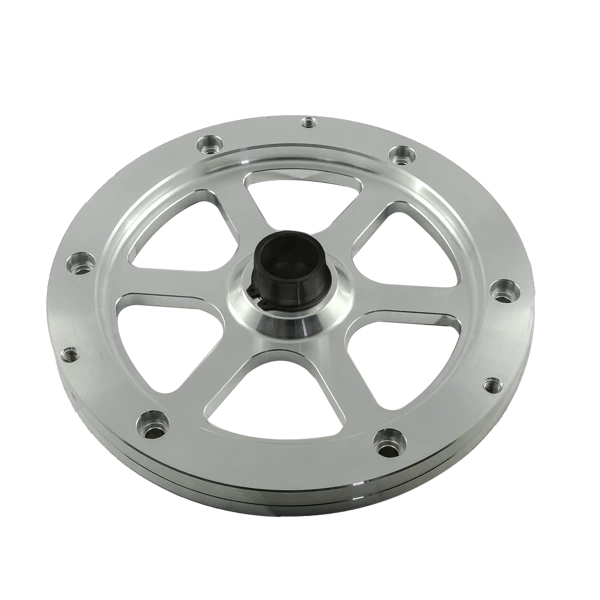

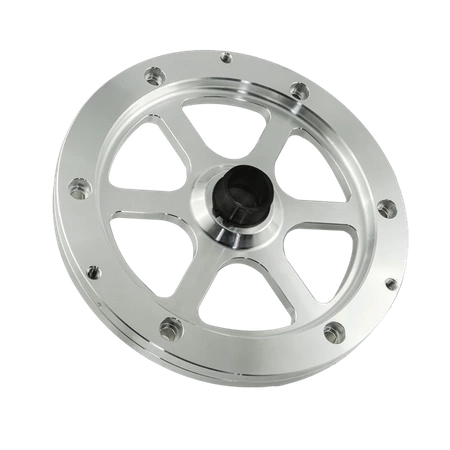

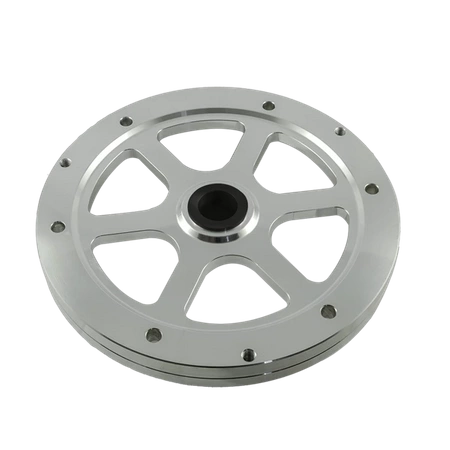

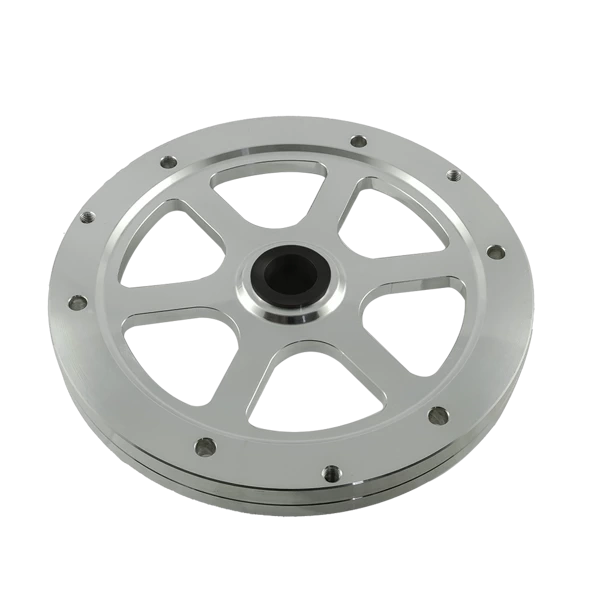

Adapter konwertera BMW ZF 8HP 8HP75 8HP70 8HP50 8HP51 - Chevrolet LS
- Dystans / Adapter konwertera BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 - GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 LSX LSA LT1 Vortec
Oszczędź kupując więcej
Adapter GM Chevrolet LS - BMW ZF 8HP 8HP75 8HP70 8HP50 8HP51
Adapter GM Chevrolet LT - BMW ZF 8HP 8HP75 8HP70 8HP50 8HP51
PMC Motorsport Dystans / Adapter konwertera BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 - GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 LSX LSA LT1 Vortec
Chcesz połączyć silnik GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 LSX LSA LT1 Vortec z automatyczną skrzynią biegów BMW ZF 8HP.
Wybierając PMC Motorsport, inwestujesz w sprawdzoną jakość i precyzję inżynieryjną. Nasze adaptery gwarantują idealną współosiowość silnika i skrzyni biegów. Używane są w tysiącach aut na całym świecie.
Tabela kompatybilności
| Pasujące silniki : | GM Small Block Chevrolet LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Chevrolet LSx GM Chevrolet LSA GM Chevrolet V8 LT GM V8 Small Block Chevrolet LT1 5.GEN GM V8 Small Block Chevrolet LT4 5.GEN GM Small Block Chevrolet Vortec GM Small Block V8 Chevrolet Vortec 4800 GM Small Block V8 Chevrolet Vortec 5300 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) GM Small Block V8 Chevrolet Vortec 6200 GM Chevrolet EcoTec3 GM 5.3 Liter V8 EcoTec3 L83 GM 5.3 Liter V8 EcoTec3 L84 GM 6.2 Liter V8 EcoTec3 L87 |
| Pasujące manualne skrzynie biegów :
| ZF 8HP 8HP50 8HP51 ZF 8HP50 GA8HP50Z GA8HP50X BMW B37 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B38 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B47 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B48F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B58 F-series ZF 8HP51 GA8HP51Z GA8HP51X BMW B48 F-series ZF 8HP51 GA8HP51Z GA8HP51X BMW B58 G-series ZF 8HP 8HP70 8HP75 8HP76 RWD / AWD xDrive ZF 8HP70 GA8HP70Z GA8HP70X BMW N57 F-series ZF 8HP75 GA8HP75Z GA8HP75X BMW N57 F-series (AWD xDrive) ZF 8HP75 GA8HP75Z GA8HP75X BMW B57 G-series ZF 8HP76 GA8HP76Z GA8HP76X BMW B57 G-series ZF 8HP76 GA8HP76Z GA8HP76X BMW B57 G-series (AWD xDrive) ZF 8HP76 GA8HP76Z GA8HP76X BMW S55 G-series |
Dlaczego warto wybrać części i adaptery PMC Motorsport?
Profesjonalizm
Od projektu do wdrożenia nasze części przechodzą długą drogę. Każdy element, do którego produkujemy części, został przez nas zmierzony ramieniem pomiarowym oraz skanerem 3D. Prtotyp podawany jest licznym testom, aby wyeliminować wszystkie możliwe problemy w jego użytkowaniu. Do naszej produkcji używamy tylko certyfikowanych materiałów od sprawdzonych dostawców. Posiadamy nowoczesny park maszyn CNC oraz doświadczonych pracowników.
Idealna współosiowość.
Nasze adaptery gwarantują idealne spasowanie silnika i skrzyni biegów.
Made in Poland
Całość naszej produkcji oraz dział projektowy zlokalizowane są na terenie Polski. Ponad 90% elementów jest wytwarzanych przez nas.
Pomoc w wyborze oraz wsparcie posprzedażowe.
Zespół PMC Motorsport pomoże Ci wybrać odpowiedni zestaw dla Ciebie. A w razie wątpliwości podczas montażu udzieli wsparcia technicznego. Możesz się z nami skontaktować przez Facebook, Instagram oraz formularz kontaktowy.
Zakup pojedynczego elementu
W naszej ofercie posiadamy każdy element naszego zestawu, który można kupić osobno. Jeżeli potrzebujesz części zamiennej napisz do nas przez formularz kontaktowy.
Szybka wysyłka obejmująca cały świat.
Nasze produkty wysyłamy praktycznie do wszystkich krajów świata. Kraje Unii Europejskiej (oprócz wysp) i Wielka Brytania mają wysyłki wyliczane automatycznie. W przypadku krajów nie będących na liście po dokonaniu zamówienia nasz zespół sporządzi kalkulację wysyłki i doda ją do zamówienia. Otrzymasz mail z kosztem zamówienia. !!! UWAGA Przesłana wycena wysyłki wraz z ceną produktu nie zawiera dodatowych opłat / cła które może wystąpić w zależności od kraju wysyłki. !!!
VAT 0%
VAT 0% dla Klientów posiadających aktywny europejski VAT (opcja dla Klientów B2B spoza terenów Polski). Po pozytywnej weryfikacji w systemie VIES, modyfikujemy zamówieni usuwając naliczony VAT z zamówienia.
Doświadczenie
Tysiące wyprodukowanych adapterów i zadowolonych klientów na całym świecie. Adapter PMC Motorsport używane są zarówno w samochodach typu Daily, jak i w profesjonalnych projektach przeznaczonych do zawodowego motorsportu.
Jakość potwierdzona certyfikatem
Od początku stawiamy na jakość wytwarzanych przez nas części. Po każdym etapie produkcji element jest kontrolowany. Każdy wyprodukowany przez nas podzespół jest grawerowany z numerem seryjnym produkcji. Jakość potwierdzamy certyfikatem ISO PN-EN ISO 9001:2015
Instrukcja montażu
!!! Części PMC Motorsport przeznaczone są do motorsportu i do użytku na torach wyścigowych. Części do montażu przez profesjonalistów z użyciem odpowiednich narzędzi w warsztatach do tego przystosowanych !!!
Adapter w całości nadaje się do recyklingu.
Do montażu adaptera niezbędne jest użycie koło zamachowego Chevrolet LS OE 12654640 12553054 12563136 12580709 12602448 12606620 12637677 12636325 (brak w zestawie)
Do montażu adaptera konwertera wymaga montażu adaptera skrzyni biegów PMC motorsport
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 6.2 Liter V8 Small Block LS3 Engine
Displacement: 6.2L / 376 cu. in.
Aspiration: Natural
Introduced: 2007 model year
Discontinued: –
Predecessor: LS6 / Gen 3 Small Block
Successor: LT1 / Gen V Small Block
Assembly: St. Catharines, Ontario, Canada
Specifications
| Type: | 6.2L Gen IV V8 Small Block |
| Engine Orientation; | Longitudinal |
| Displacement: | 6162cc (376.0 ci) |
| Compression ratio: | 10.7:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catharines, Ontario |
| Assembly site for Corvette Grand Sport Manual Coupe: | Performance Build Center (PBC), Wixom, MI |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92mm |
| Fuel system: | Sequential fuel injection |
| Fuel type: | Premium fuel recommended, not required |
| Valves per cylinder; | 2 |
| Bore Center (mm): | 111.76 |
| Engine Mass (kg/lbs): | 183 / 403 |
| Engine Mass (kg/lbs) Corvette Grand Sport Manual Coupe: | 211 / 466 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast nodular iron |
| Main bearing caps: | Powder metal |
| Crankshaft: | Cast iron with undercut and rolled fillets |
| Crankshaft Grand Sport Manual Coupe: | Forged steel crank |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged powder metal |
| Additional features | |
| Extended life spark plugs | |
| Extended life coolant | |
| Dry Sump Oil Lubrication System – Grand Sport Manual Coupe Only | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2009-2015 Chevrolet Camaro SS Coupe and Convertible
- 2008-2013 Chevrolet Corvette and Corvette Grand Sport
- 2008-2013 Chevrolet Corvette w/ Optional Exhaust
- 2015-2017 Chevrolet SS
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
GM 6.2 Liter V8 Small Block LT1
| Displacement: | 6.2L / 376 cu. in. |
| Aspiration: | Natural |
| Introduced: | 2014 model year |
| Discontinued: | - |
| Predecessor: | LS3 / Gen 4 Small Block |
| Successor: | LT2 |
| Assembly: | Tonawanda, New York |
Specifications
| Type: | 6.2L Gen V V8 Small Block |
| Displacement: | 6.2L (6162cc / 376 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 11.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Tonawanda, New York, USA |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92mm |
| Fuel system: | Direct Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6600 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Nodular Iron |
| Main bearing caps: | Cast Nodular |
| Crankshaft: | Forged Steel |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Variable Valve Timing (VVT) | |
| Electronic throttle control | |
| Extended life accessory drive belt | |
| Extended life coolant | |
| Extended life spark plugs | |
| Oil Life Monitor System | |
| Dexos 5W30 | |
| Dual-pressure control and variable displacement oil pump | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2014 Chevrolet C7 Corvette Stingray Base Exhaust
- 2014 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Base Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2017-2019 Chevrolet C7 Corvette Grand Sport
- 2016-present Chevrolet Camaro SS
- 2020-present Chevrolet Camaro LT1
GM 6.2 Liter Supercharged Small Block V8 LT4
| Displacement: | 6.2L / 376 cu. in. |
| Aspiration: | Forced Induction (Supercharger) |
| Introduced: | 2014 model year |
| Discontinued: | - |
| Predecessor: | LS9 / Gen 4 Small Block |
| Successor: | - |
| Assembly: | Tonawanda, New York (Z06, CTS-V, ZL1); Performance Build Center, Bowling Green Kentucky (CT5-V Blackwing) |
Specifications
| Displacement: | 6162cc (376 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 10.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly sites | |
| For CTS-V, Camaro ZL1 | Tonawanda, New York |
| For Corvette Z06: | Bowling Green, Kentucky |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92mm |
| Fuel system: | DI |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6600 RPM |
| Drive Belt Rib Count: | 8 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Cast Aluminum Supercharger |
| Exhaust manifold: | Cast Stainless (Corvette) or Fabricated Stainless (CTS-V) |
| Main bearing caps: | Cast Nodular |
| Crankshaft: | Forged steel |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Additional Features | |
| 1.74 L/rev Supercharger | |
| Integrated dual coolant-to-air-intercoolers | |
| Active Fuel Management | |
| Variable Valve Timing (VVT) | |
| Electronic throttle control | |
| Extended life coolant | |
| Extended life spark plugs | |
| Oil Life Monitor System | |
| Dexos 5W30 | |
| Dual-pressure control and variable displacement oil pump | |
| Dry sump (Corvette only) | |
| 58x crank timing | |
Vehicle Applications
- 2015 – 2019 Chevrolet C7 Corvette Z06 GM
- 2015 – 2019 Chevrolet C7 Corvette Z06
- 2016 – 2019 Cadillac CTS-V Sedan
- 2017 – present Chevrolet Camaro ZL1
- 2017 – present Chevrolet Camaro ZL1
- 2022 – present Cadillac CT5-V Blackwing
- 2022 – present Cadillac CT5-V Blackwing
- 2023 – present Cadillac Escalade-V
