Adapter kit GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (H)
Adapter kit GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (H)
Adapter kit GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (H)
Adapter kit GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (H)
Adapter kit GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (H)
Gearbox adapter plate GM Chevrolet LS - BMW Manual M57N N54 N57 N47 / automatic DCT 8HP
Flywheel GM Chevrolet LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55

Adapter kit GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (H)

  • PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set) GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55

999,00 EUR
incl. VAT / set
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

In a set

Gearbox adapter plate GM Chevrolet LS - BMW Manual M57N N54 N57 N47 / automatic DCT 8HP
Gearbox adapter plate GM Chevrolet LS - BMW Manual M57N N54 N57 N47 / automatic DCT 8HP (1 pcs.)
489,00 EUR / pcs.
Flywheel GM Chevrolet LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
Flywheel GM Chevrolet LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (1 pcs.)
510,00 EUR / pcs.

PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set) GM Chevrolet V8 LS - BMW N54 N55 S55 DCT DKG Getrag GS7D36SG (Ultralight)

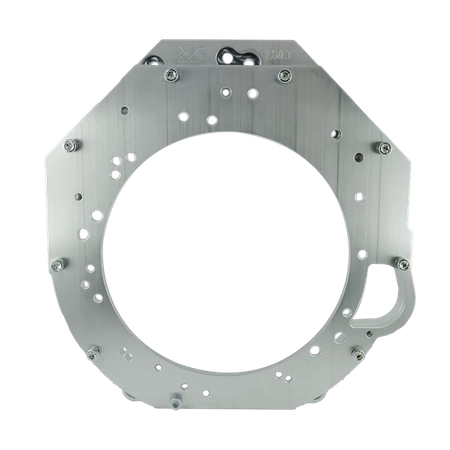

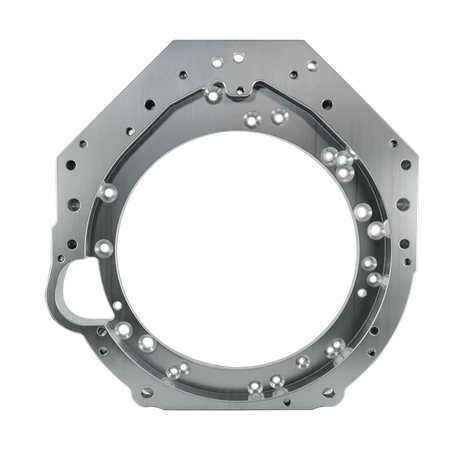

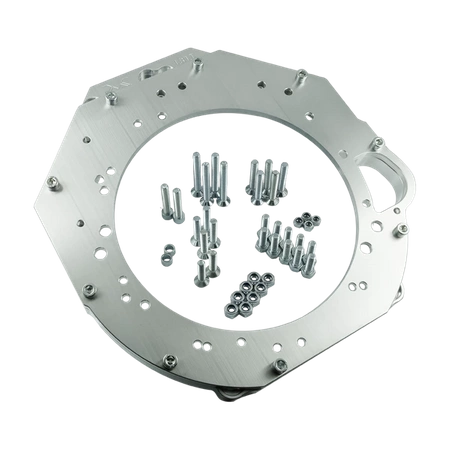

Aluminium adapter plate designed for the conversion of the GM Chevrolet LS LS1 LS3 LS6 LS7 Vortec with the DCT DKG Getrag GS7D36SG



Why choose PMC Motorsport parts and adapters?

  • Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
  • Professionalism. From design to implementation, our parts go a long way. We have measured each element for which we produce parts with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
  • Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
  • Perfect alignment - our adapters guarantee a perfect fit of the engine and gearbox
  • Made in EU. All our production and design departments are located in the European Union
  • Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com





Engine list:

  • GM 5.7 Liter V8 Small Block Chevrolet LS1
  • GM 6.0 Liter V8 Small Block Chevrolet LS2
  • GM 6.2 Liter V8 Small Block Chevrolet LS3
  • GM 5.7 Liter V8 Small Block Chevrolet LS6
  • GM 7.0 Liter V8 Small Block Chevrolet LS7
  • GM Small Block V8 Chevrolet Vortec 4800
  • GM Small Block V8 Chevrolet Vortec 5300
  • GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX)
  • GM Small Block V8 Chevrolet Vortec 6200


Automatic BMW GETRAG DKG DCT gearbox list :

  • BMW GETRAG DKG DCT GS7D36SG N54 S55 N55 7-speed
    • GS7D36SG - BMT 28 00 7 640 956 / 28 00 7640956
    • GS7D36SG - 28 00 7 585 538 / 28 00 7585538
    • GS7D36SG - 28 00 8 482 016 / 28 00 8482016
    • GS7D36SG - ABW 28 00 7 853 541 / 28 00 7853541
    • GS7D36SG - ABY 28 00 7 853 542 / 28 00 7853542
    • GS7D36SG - AC2 28 00 7 853 546 / 28 00 7853546
    • GS7D36SG - AC5  28 00 7 853 549 / 28 00 7853549
    • GS7D36SG - ADE 28 00 7 853 550 / 28 00 7853550
    • GS7D36SG - AEA 28 00 7 853 551 / 28 00 7853551
    • GS7D36SG - AEB 28 00 7 853 552 / 28 00 7853552
    • GS7D36SG - AEE 28 00 7 853 554 / 28 00 7853554
    • GS7D36SG - AEG 28 00 7 853 555 / 28 00 7853555
    • GS7D36SG - AEP 28 00 7 853 557 / 28 00 7853557



Manual



 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Symbol
A-LS-DCT6-H
Producer code
5903707409914
GM Chevrolet engine list
Chevrolet LS1 6-crankshaft boltsMore

GM 5.7 Liter V8 Small Block LS1 Engine

Displacement: 5.7L / 346 cu. in.

Aspiration: Natural

Introduced: 1997 model year

Discontinued: 2005

Predecessor: LT1 / Gen 2 Small Block

Successor: LS6

;Assembly: Saint Catherines, Ontario, Canada

Specifications

Type: 5.7L V8 Gen III Small Block
Engine Orientation: Longitudinal
Engine Mass (kg/lbs): 177 / 390
Displacement: 5,665cc (5.7L; 346ci)
Compression ratio: 10.1.:1
Bore x stroke: 99.06 x 91.948mm
Bore Center (mm): 111.76
Valve configuration: Overhead valves
Valves per cylinder: 2
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Fuel system: Sequential fuel injection
Recommended fuel: Regular Unleaded
Emissions controls
Catalytic converter
Positive crankcase ventilation
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Composite
Exhaust manifold: Cast Iron
Main bearing caps: Steel
Crankshaft: Cast Iron
Camshaft: Billet Steel
Connecting rods:

Forged Powder Metal



Vehicle Applications

GM Chevrolet

    • Chevrolet Corvette 1997-2000
    • Chevrolet Corvette 2001-2004
    • Chevrolet Camaro Z28 1998-2000
    • Chevrolet Camaro SS 1998-2000
    • Chevrolet Camaro Z28 2001-2002
    • Chevrolet Camaro SS 2001-2002

Pontiac

    • Pontiac Firebird Formula 1998-2000
    • Pontiac Firebird Trans Am 1998-2000
    • Pontiac Firebird Formula 2001-2002
    • Pontiac Firebird Trans Am 2001-2002

Holden

    • Holden VT.II Commodore, VT.II Calais 1999–2000
    • Holden Statesman, Caprice 1999–2003
    • Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
    • Holden Monaro 2001–2002
    • Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
    • Holden Berlina, Ute S, One Tonner S 2003-2004
    • Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
    • Holden Monaro 2003-2004
    • Holden Statesman 2003-2004
    • Holden Adventra 2003-2005
    • Holden VY.II Crewman 2003-2005
    • Holden Berlina, Calais, One Tonner, Crewman 2004-2005
    • Holden Statesman 2004-2005
    • Holden Commodore SV8 and SS, Ute SS 2004-2005
    • Holden Caprice 2004-2005
    • Holden Monaro 2004-2005
    • Holden Adventra 2005-2006
    • Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
    • Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
    • Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
    • Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
    • Holden Special Vehicles HSV V2.II GTO Coupe
    • Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
    • Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
    • Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
    • Holden Special Vehicles HSV V2 Coupe 4 2004
    • Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
    • Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
    • Holden Special Vehicles – Callaway HSV VT.II GTS 2000
    • Holden Special Vehicles – Callaway HSV VX GTS 2000–2001
    • Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
    • Holden Special Vehicles – Callaway VX SV300 2001–2002
    • Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
    • Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
Chevrolet LS2 6-crankshaft boltsMore

GM 6.0 Liter V8 Small Block LS2 Engine

Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada



Specifications

Type: 6.0L Gen IV V8 Small Block
Displacement: 6.0L (5965cc / 364 ci)
Engine orientation: Longitudinal
Compression ratio: 10.9:1
Valve configuration: Overhead valves
Valves per cylinder: 2
Assembly site: Saint Catherines, Ontario, Canada
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 101.6 x 92mm
Fuel system: Sequential Port Fuel Injection
Fuel type: Premium Recommended
Maximum Engine Speed: 6500 RPM
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Composite
Exhaust manifold: Cast Iron
Main bearing caps: Cast Iron
Crankshaft: Cast Iron
Camshaft: Billet Steel
Connecting rods: Forged Powder Metal
Additional Features
Active Fuel Management
Electronic throttle control
Oil Life Monitor System
58x crank timing
Emissions Controls
Catalytic converter
Three-way catalyst
Positive crankcase ventilation



Vehicle Applications

  • 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
  • 2005-2006 Chevrolet SSR
  • 2005-2006 Pontiac GTO
  • 2006-2009 Chevrolet TrailBlazer SS
  • 2006-2007 Cadillac CTS-V
  • 2008-2009 Saab 9-7X Aero
Chevrolet LS3 6-crankshaft bolts
Chevrolet LS6 6-crankshaft boltsMore

GM 5.7 Liter V8 Small Block LS6 Engine



Displacement:5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 2001 model year
Discontinued: 2005
Predecessor: LS1 / Gen 3 Small Block
Successor: LS2
Assembly: Saint Catherines, Ontario, Canada





Specifications

Type: 5.7L Gen III V8 Small Block
Displacement: 5.7L (5670cc / 346 ci)
Engine orientation: Longitudinal
Engine Mass: 458 pounds / 207.745 kilograms
Compression ratio: 10.5:1
Valve configuration: Overhead valves
Valves per cylinder: 2
Assembly site: St. Catherine's, Ontario, Canado
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 99 x 92mm
Fuel system: Sequential Port-fuel Injection
Fuel type: Premium Recommended
Maximum Engine Speed: 6500 RPM
Emissions controls
Catalytic converter
Positive crankcase ventilation
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Composite
Exhaust manifold: Cast Iron
Main bearing caps: Steel
Crankshaft: Cast Iron
Camshaft: Billet Steel
Connecting rods: Forged Powder Metal



Vehicle Applications

  • 2001 Chevrolet Corvette C5 Z06
  • 2002-2004 Chevrolet Corvette C5 Z06
  • 2004-2005 Cadillac CTS-V



Chevrolet LS7 6-crankshaft boltsMore

GM 7.0 Liter V8 LS7 Engine

Displacement:7.0L / 427 cu. in.
Aspiration: Natural
Introduced: 2006 model year
Discontinued: 2015
Predecessor: LS2 / Gen 3 Small Block
Successor:
Assembly: Wixom, Michigan



Specifications

Type: 7.0L Gen IV V8 Small Block
Displacement: 7008 cc (427.6 ci)
Engine Orientation: Longitudinal
Compression ratio: 11.0:1
Valve configuration: Overhead valves
Valves per cylinder: 2
Assembly site: Performace Build Center in Wixom, Michigan
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 104.8 X 101.6
Bore Center (mm): 111.76
Bore Area (cm2) (total engine bore area): 689.75
Fuel system: Sequential fuel injection
Fuel Type: Premium Fuel required
Engine Mass (kg/lbs): 206 / 454
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Composite
Exhaust manifold: Stainless Steel
Main bearing caps: Forged steel
Crankshaft: Forged 4140 steel
Camshaft: Hollow steel
Connecting rods: Forged Titanium
Additional features
Extended life spark plugs
Titanium Intake Valves
Extended life coolant
Oil level sensor
Oil Life System
Emissions controls
Catalytic converter
Three-way catalyst
Positive crankcase ventilation



Vehicle

  • 2014 – 2015 Chevrolet Camaro Z/28
  • 2011 – 2013 Chevrolet Corvette C6 Z06
  • 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet LSX 6-crankshaft bolts
Chevrolet Vortec 4800 LR4
Chevrolet Vortec 5300 LM7
Chevrolet Vortec 5300 LM4
Chevrolet Vortec 5300 L59
Chevrolet Vortec 5300 L33
Chevrolet Vortec 6000 L96
Chevrolet Vortec 6000 LQ4
Chevrolet Vortec 6000 LQ9
Chevrolet Vortec 6000 L77
GM Small Block V8 Chevrolet Vortec 6000 LY6
Chevrolet Vortec 6000 LFA
Chevrolet Vortec 6000 LZ1
Chevrolet Vortec 6200 L92
Chevrolet Vortec 6200 L9H
Chevrolet Vortec 6200 L94
Chevrolet Vortec 6000 L76
Automatic dual-clutch GETRAG DCT DKG GS7D36SG list:
BMW N54 N55 DCT DKG GS7D36SGMore

BMW GETRAG (GETRAG GS7D36SG) DCT DKG 7-speed

  • BMW Engine: N54 N54B30A / N55 N55B30A
  • BMW OE:  28007585538 / 28 00 7585538
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.780
  • 2 - 2.933
  • 3 - 2.153
  • 4 - 1.678
  • 5 - 1.390
  • 6 - 1.203
  • 7 - 1.000

BMW 1-Series 1er E82 E88

  • 135i N55B30 Coupé ECE
  • 135i N55B30 Coupé USA

BMW 3-Series 3er E92 E93 LCI

  • 335i N54 ECE
  • 335i N55 ECE
  • 335i N55T USA

BMW Z4 E89

  • Z4 35i N54
  • Z4 35i N54
  • Z4 35is N54T
  • Z4 35is N54T
BMW N54 DCT DKG GS7D36SG BE2More

BMW GETRAG (GETRAG GS7D36SG) DCT DKG BE2 7-speed

  • BMW Engine: N54 N54B30A
  • BMW OE:  28008647464 / 28 00 8647464
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.780
  • 2 - 2.933
  • 3 - 2.153
  • 4 - 1.678
  • 5 - 1.390
  • 6 - 1.203
  • 7 - 1.000

BMW 3-Series 3er E92 E93 LCI

  • 335i N54 ECE

BMW Z4 E89

  • Z4 35i N54
  • Z4 35i N54
  • Z4 35is N54T
  • Z4 35is N54T
BMW N55 DCT DKG GS7D36SG AC2More

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAC2 AC2 7-speed

  • BMW Engine:  N55 N55B30A
  • BMW OE: 28 00 7853546 / 28007853546
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA
BMW N55 S55 DCT DKG GS7D36SG ABEMore

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TABE ABE 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28007853552 / 28 00 7853552
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA
BMW N55 S55 DCT DKG GS7D36SG AEBMore

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAEB AEB 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28007853552 / 28 00 7853552
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA
BMW N55 S55 DCT DKG GS7D36SG AEPMore

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAEP AEP 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28 00 7853557 / 28007853557
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA
  • M2 Competition S55 Coupé ECE
  • M2 Competition S55 Coupé USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA
BMW N55 S55 DCT DKG GS7D36SG AE2More

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAE2 AE2 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28 00 7853559 / 28007853559
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA
  • M2 Competition S55 Coupé ECE
  • M2 Competition S55 Coupé USA
  • M2 CS S55 Coupé ECE
    M2 CS S55 Coupé USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA

MS BMW Motorsport

  • F82 M4 GT4 S55 Coupé USA
  • M2 CS Racing S55 Coupé USA
Clutch Set
Set with Clutch
No
Flywheel Type
Single mass
Starter required (not included)
Chevrolet LS (OE)
Flexplate / ring gear / Drive plate required
Chevrolet LS OE 12654640 12553054 12563136 12580709 12602448 12606620 12637677
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Gearbox adapter thickness
35mm / 1.37"
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Piasta DCT
Product sales codes included
F0M57-LS (4421)
K0DCT-R6-LS (3111)
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
pixel
