STAGE 1 Ford Barra - BMW M57N2 6-speed HGU HGK / N54 - 240mm / 9.45"

  • PMC Motorsport STAGE 1 adapter kit Ford Barra - BMW M57N2 ZF GS6-53DZ HGU HGK 6-speed / BMW N54 135i 335i 535i ZF GS6-53BZ 6-speed - 240mm / 9.45" + Sachs XTend 3000 951 952 max. 650Nm / 479,25 lb/ft
  • STAGE 1 Ford Barra - BMW M57N2 6-speed HGU HGK / N54 - 240mm / 9.45"
  • STAGE 1 Ford Barra - BMW M57N2 6-speed HGU HGK / N54 - 240mm / 9.45"
  • STAGE 1 Ford Barra - BMW M57N2 6-speed HGU HGK / N54 - 240mm / 9.45"
  • STAGE 1 Ford Barra - BMW M57N2 6-speed HGU HGK / N54 - 240mm / 9.45"
  • STAGE 1 Ford Barra - BMW M57N2 6-speed HGU HGK / N54 - 240mm / 9.45"
  • SACHS XTend 3000 951 952 / 3000951952
  • Flywheel Ford Barra - BMW M57N GS6-53DZ HGU HGK / N54 GS6-53BZ - 240mm / 9.45"
  • Gearbox Adapter Plate Ford Barra - Manual / Automatic DCT 8HP BMW
1 213,00 EUR
/ set
You save 0.00% (0.00EUR) when buying in a set.

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
We care about your comfort, that's why our shop offers returns on favorable terms.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Ford Barra - BMW M57N2 ZF GS6-53DZ HGU HGK 6-speed / BMW N54 135i 335i 535i ZF GS6-53BZ 6-speed - 240mm / 9.45" + Sachs XTend 3000 951 952 max. 650Nm / 479,25 lb/ft

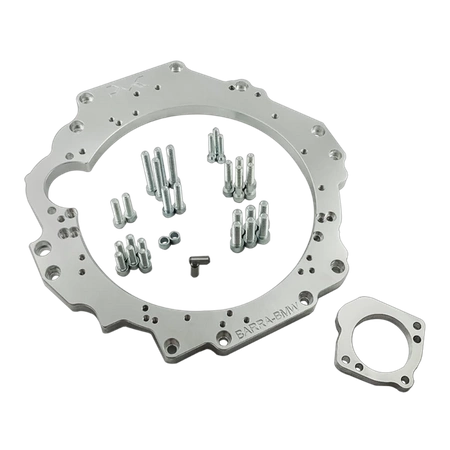

Aluminum adapter enabling to mate (SWAP / conversion) the Ford Barra engine, with the manual ZF (ZF Friedrichshafen)  gearbox from BMW.




Replace the automatic transmission with a manual transmission from BMW

Why is it worth choosing gearboxes from BMW?

  • Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
  • Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque(some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)



Want to SWAP Ford Barra on your BMW (e30 e36 e46 e34 e39 e90 e91 e92 e60 e61 e81 e82 e87)? Our adapter is the solution for you.



Why choose PMC Motorsport parts and adapters?

  • Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
  • Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
  • Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
  • Perfect alignment - our adapters guarantee an ideal fit of the engine and gearbox
  • Made in EU. All our production and design departments are located in the European Union
  • Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com

Our kits are often used in SWAP Ford Barra on other cars, e.g. Nissan S13 / S14 / S15 / PS13 / 300ZX / 350Z Z33 / 370Z Z34






Engine list:

  • Ford Barra ( Falcon , Territory )
    • Ford Barra 182
    • Ford Barra 190
    • Ford Barra 195
    • Ford Barra 240T
    • Ford Barra 245T
    • Ford Barra 270T (BA / BF FPV)
    • Ford Barra 270T (FG)
    • Ford Barra 325T


Manual BMW gearbox list (Petrol) :

  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-53BZ 6-speed
    • BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ HGX (THGX)
    • BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ JGD (TJGD)
    • BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ JGF (TJGF)
    • BMW ZF (ZF Friedrichshafen) N54 E8x 135i Z4 35i S6-53 GS6-53BZ JGK (TJGK)

Manual BMW gearbox list (Diesel) :

  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed
    • BMW ZF (ZF Friedrichshafen) M57N2 E9x 330D S6-53 GS6-53DZ HGU (THGU)
    • BMW ZF (ZF Friedrichshafen) M57N2 E9x 330D S6-53 GS6-53DZ HGK (THGK)



Manual

  • Use the starter from BMW M50 M52 M54 or M57
  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
  • Use a 240mm clutch disc with a spline dedicate to your gearbox.
  • Replace the original custom pivot pin with the one from the kit.





 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Tech specs:
Ford engine list:
Ford Barra

Ford Barra ( Falcon, Territory )

  • Ford Barra 182
  • Ford Barra 190
  • Ford Barra 195
  • Ford Barra 240T
  • Ford Barra 245T
  • Ford Barra 270T (BA / BF FPV)
  • Ford Barra 270T (FG)
  • Ford Barra 325T
Manual gearbox list (Petrol):
BMW N54 ZF GS6-53BZ code HGX 6-speed

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE: 23 00 7 526 820 / 23 00 7526820 / 23007526820
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677



BMW 3-Series 3er E90 E91 E92 E93 / LCI

  • E90 335i N54B30A
  • E90N 335i N54B30A
  • E91 335i N54B30A
  • E91N 335i N54B30A
  • E92 335i N54B30A
  • E92N 335i N54B30A
  • E93 335i N54B30A
  • E93N 335i N54B30A

BMW 5-Series 5er E60 LCI

  • E60 535i N54B30A
,
BMW N54 ZF GS6-53BZ code JGK 6-speed

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE: 23 00 7 581 860 / 23 00 7581860 / 23007581860
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677

BMW 1-Series 1er E81 E88

  • E82 135i N54B30A
  • E88 135i BMW E89 Z4 35i N54B30A

BMW BMW E89 Z4 35i N54B30A

,
BMW N54 ZF GS6-53BZ code JGF 6-speed

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGF code JGF 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE:
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 081 104 / 23.00-4545952 / 23 00 4545952 / 23004545952

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677

BMW 3-Series 3er E90 E91 E92 E93 LCI

  • E90 335i N54B30
  • E90N 335i N54B30
  • E91 335i N54B30
  • E91N 335i N54B30
  • E92 335i N54B30
  • E92N 335i N54B30
  • E93 335i N54B30
  • E93N 335i N54B30

BMW 5-Series 5er E60 LCI

  • E60N 535i N54B30
,
BMW N54 ZF GS6-53BZ code JGD 6-speed

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE: 23 00 7 567 242 / 23 00 7567242 / 23007567242
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677



BMW 3-Series 3er E90 E91 E92 E93 / LCI

  • E90 335i N54B30A
  • E90N 335i N54B30A
  • E91 335i N54B30A
  • E91N 335i N54B30A
  • E92 335i N54B30A
  • E92N 335i N54B30A
  • E93 335i N54B30A
  • E93N 335i N54B30A

BMW 5-Series 5er E60 LCI

  • E60 535i N54B30A
Manual gearbox list (Diesel):
BMW M57N2 ZF GS6-53DZ code HGU 6-speed

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU 6-speed

  • BMW Engine: M57N2 306D3
  • BMW OE : 23 00 7 571 420 / 23 00 7571420 / 23007571420
  • Bell housing: 1067 401 061 / 1067401061
  • Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 / 23007565213

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 3-Series 3er E90 E91 E92 E93

  • E90 325D M57N2
  • E90 330D M57N2
  • E90N 325D M57N2
  • E91 325D M57N2
  • E91 330D M57N2
  • E91N 325D M57N2
  • E92 325D M57N2
  • E92 330D M57N2
  • E93 325D M57N2
  • E93 330D M57N2
,
BMW M57N2 ZF GS6-53DZ code HGK 6-speed

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK 6-speed

  • BMW Engine: M57N2 306D3
  • BMW OE : 23 00 7 560 725 / 23 00 7560725 / 23007560725
  • Bell housing: 1067 401 061 / 1067401061
  • Sticker number: 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 3-Series 3er E90 E91 E92 E93

  • E90 325D M57N2
  • E90 330D M57N2
  • E90N 325D M57N2
  • E91 325D M57N2
  • E91 330D M57N2
  • E91N 325D M57N2
  • E92 325D M57N2
  • E92 330D M57N2
  • E93 325D M57N2
  • E93 330D M57N2
Clutch Set
Set with Clutch:
Yes
Max torque:
650Nm / 479,25 lb/ft
Flywheel Type:
Single Disc
Diameter of Friction Plate:
240mm / 9.45"
Clutch Set included:
Sachs XTend 3000 951 952 (M57N M57N2)
Self-adjusting:
Yes
Clutch disc:
Included
Spline:
32,5x35-26N
Spline Count:
26
Release bearing required:
Included
Clutch fork required:
Included
Clutch Slave Cylinder required:
BMW OE
Starter required (not included):
BMW M50-M54 OE 12 41 2 354 709 / 12 41 2354709
ADDITIONAL INFORMATION
Adapter Kit Type:
Motorsport
,
Daily
,
Drift
Gearbox adapter thickness:
20mm / 0.78"
Replaceable friction surface:
Yes

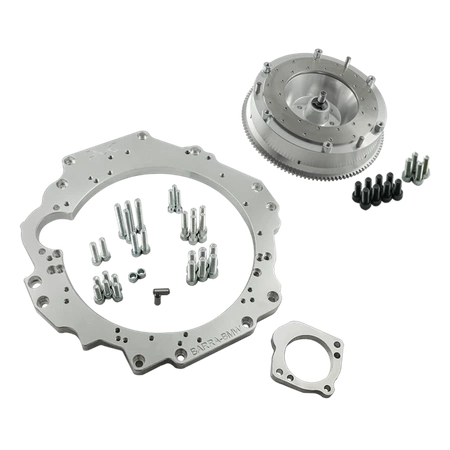

Set includes:
Aluminium gearbox adapter
,
Gearbox adapter bolts
,

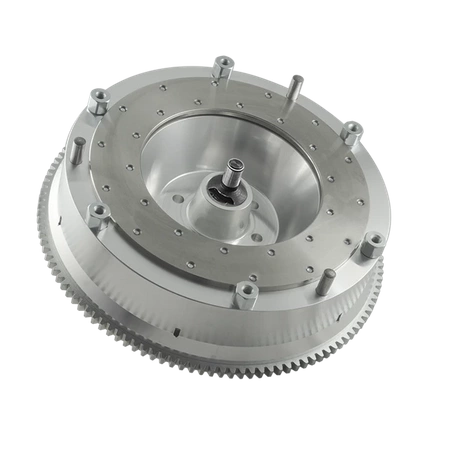

Custom Flywheel
,
Crankshaft bolts kit
,
Clutch cover - pressure plate bolts kit
,
Custom Clutch fork pivot pin / Ball
,

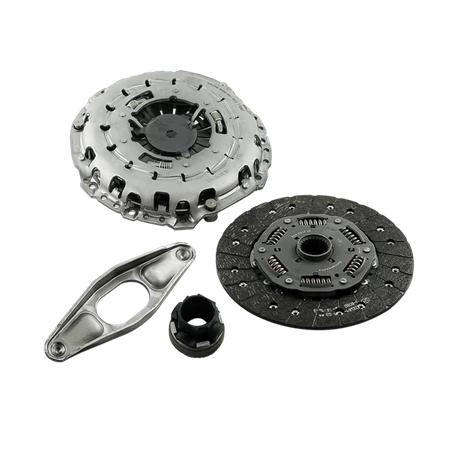

Clutch kit Sachs XTend 3000 951 952
,
Adapter rozrusznika
Product sales codes included:
K0HGU-240-BAR (3443)
,
F0BMW-BAR (3431)
,
SACHS 952 (1739)
EAN:
5903707408801
Kod sprzedażowy zestawu:
S1-BAR-HGU-952
