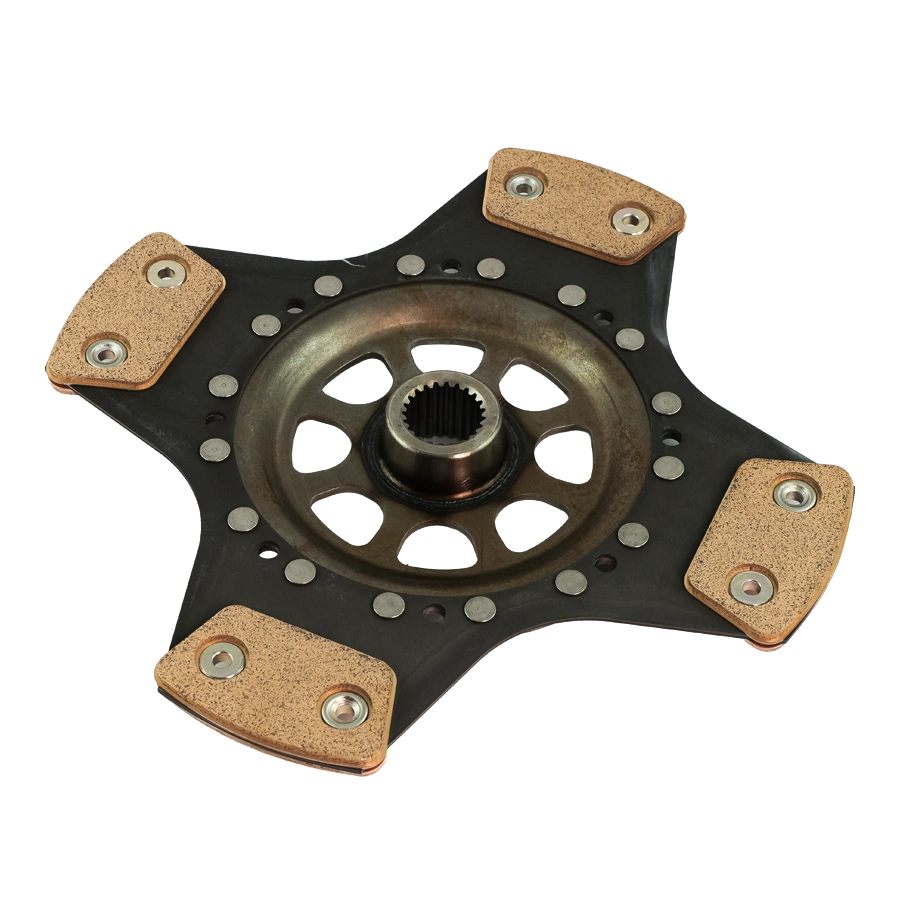

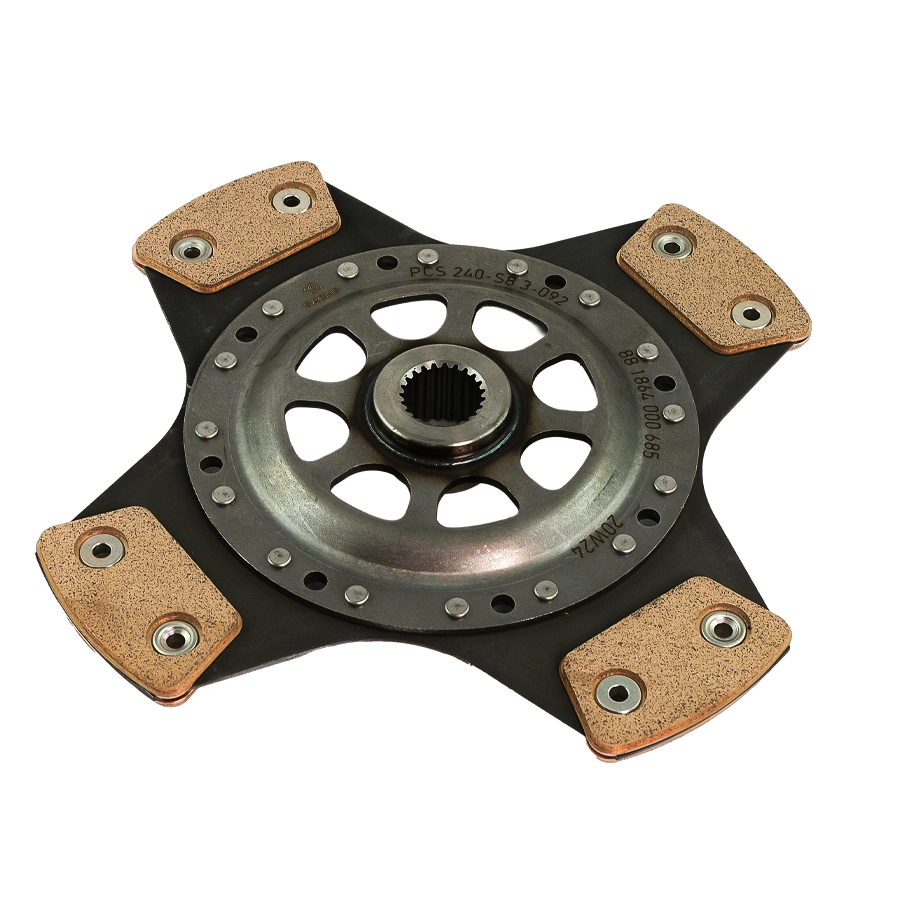

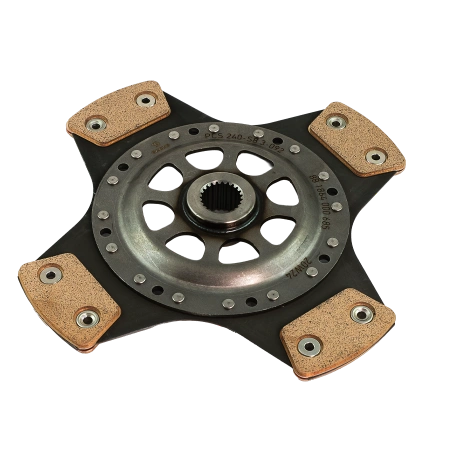

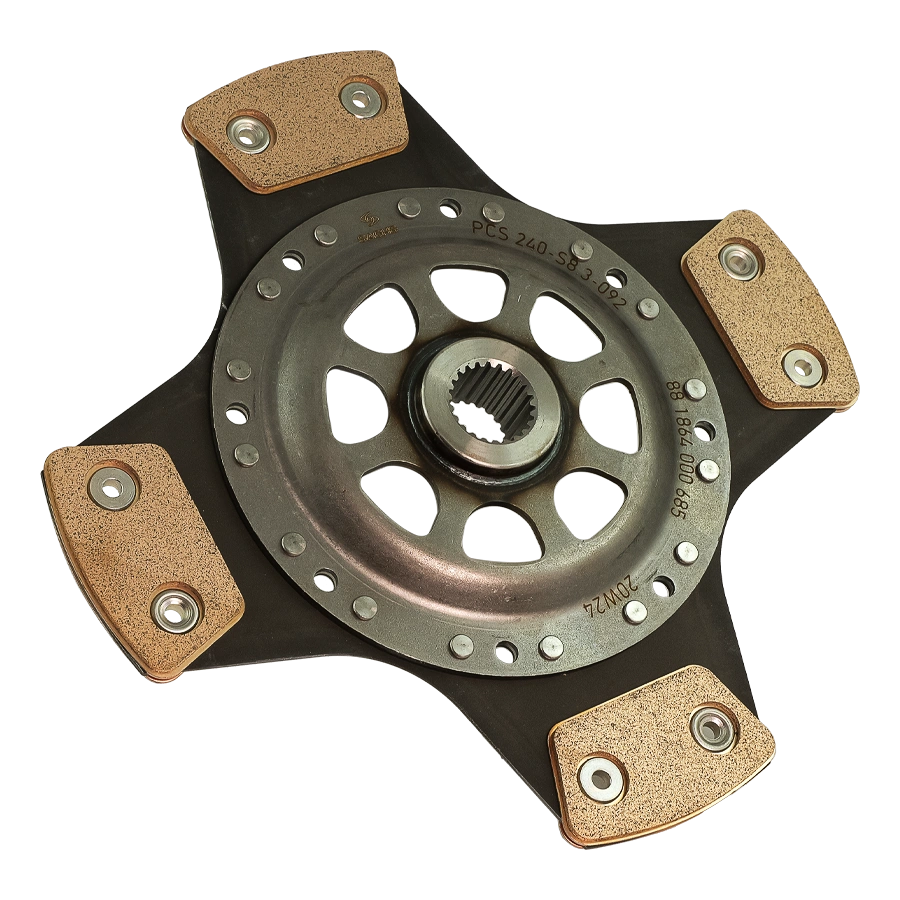

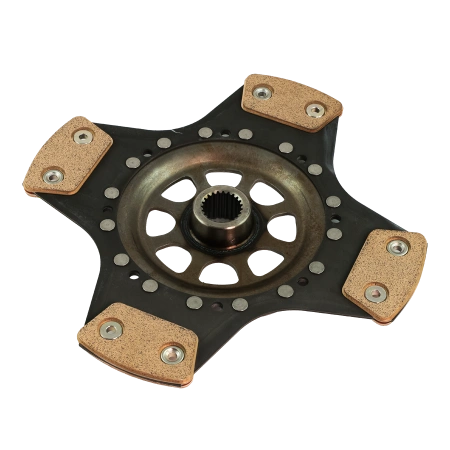

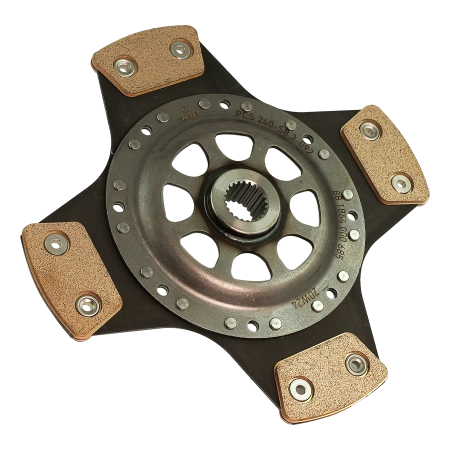

Sachs Racing Ceramic Clutch Disc - 881864.000685 - 4 Pad - VAG - 21.8x24.2-23N - 240mm / 9.45"

Designed to make a difference

The philosophy and key to success for ZF SACHS Race Engineering is the continuous search for improvement and the desire to push the boundaries of what is possible. Precision engineering and quality have made SACHS Performance clutches and suspensions an integral part of the most successful racing cars in the world.

SACHS Racing - Clutch Disc - Sintered metal, rigid design

Sintered clutch discs are subject to very high loads and are complex components with a compact design. In addition to transmitting torque, they fulfill additional tasks such as damping torsional vibrations and providing exceptionally high heat resistance. Rigid clutch discs have fewer components than the spring-loaded version and are less prone to failure at the limit, while offering higher torque transmission capabilities.

SACHS Racing Clutch Disc | 000685 - 881864.000685

Advantages at a glance:

• High transmittable torque
• Higher thermal load capacity than organic friction discs
• Higher burst speed
• Lightweight, thus low mass and inertia
• High resistance to dirt
• Aggressive start-up behavior
• Simple replacement of the standard clutch disc [P&P]

Technology

The SACHS Racing sintered metal clutch disc 881864.000685 has a higher thermal load capacity and higher speed resistance than organic standard clutch discs and is particularly resistant to dirt and oil. It enables a harder start, i.e., sudden clutch engagement and the transmission of significantly higher torques. Combined with the SACHS Performance pressure plate, you get the ideal clutch for motorsport and extreme performance vehicles. - Benefit from top quality combined with solid motorsport expertise.

Lining suspension usually improves starting comfort and ensures even support of the linings. Lining springs are wavy segments of spring plates with a spring travel of up to approx. 1 mm, which are riveted to the clutch disc carrier plate on the gearbox side. In high-performance SACHS Racing clutch discs, this lining suspension is typically omitted in favor of higher transmittable torque compared to a standard clutch disc.

Sachs Race Engineering (SRE) is the technological partner for all well-known racing teams, from Formula 1 and DTM to individual cups and the most exclusive car manufacturers.

Areas of Application: TUNING (Chip tuning, Turbo/Supercharger conversions), SPRINT (1/4 mile, drag racing), COMPETITION (Rally, e.g., Group N), CIRCUIT (Endurance racing, club sport, autocross), EVENTS (Hill climb, slalom, drift).

AUDI
034 141 032 L
034 141 033
078 141 031 C
078 141 031 D
078 141 031 N
078 141 031 P
078 141 031 S
078 141 032 A

Skoda
078 141 032 A
078 141 032 AX

VOLKSWAGEN
034 141 032 L
034 141 033
078 141 031 C
078 141 031 D
078 141 031 N
078 141 031 P
078 141 032 A
