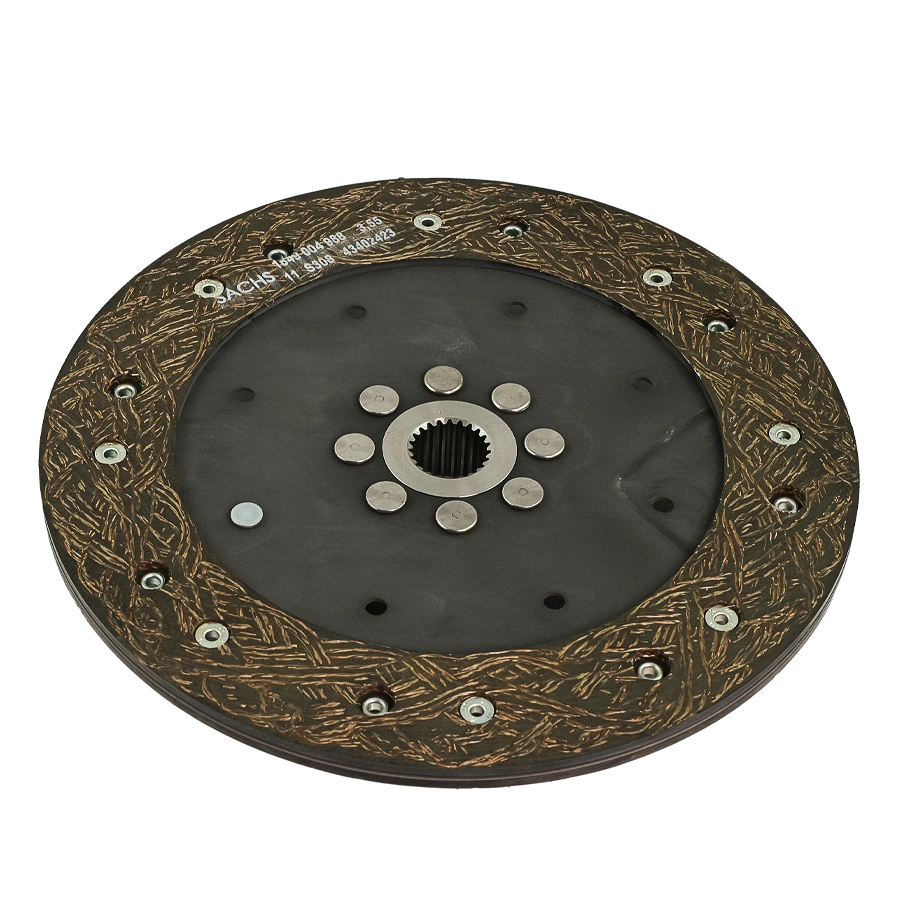

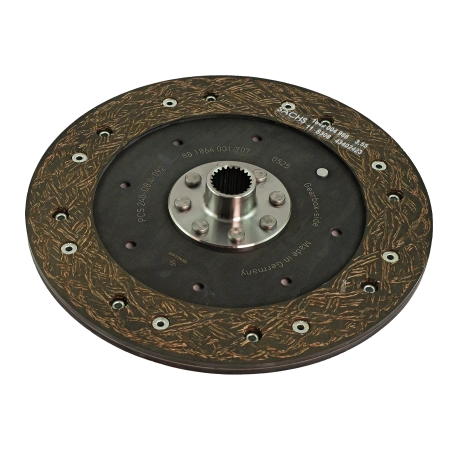

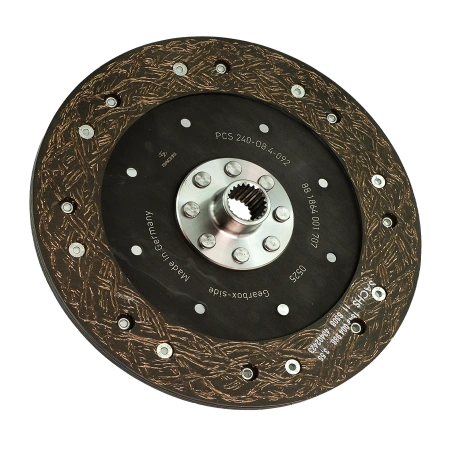

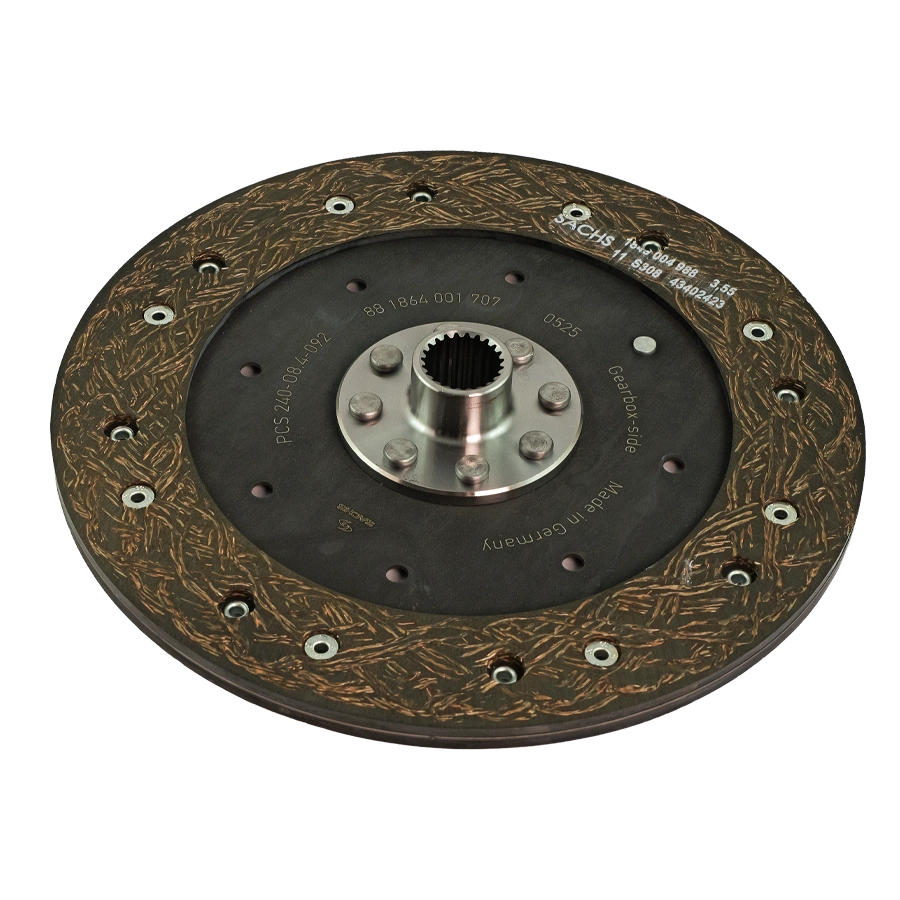

Sachs Performance Clutch Disc 881864.001707 - VAG - 21.8x24.2-23N - 240mm / 9.45"

Diameter [mm]: 240 - Number of teeth: 23 - Hub profile: 21.8x24.2-23N Rigid clutch disc with special organic friction materials

Designed to make a difference

For decades, SACHS Performance clutches from ZF Race Engineering have delivered measurable performance in tuning and motorsports. The goal: to constantly improve and push the boundaries of what is possible. From the lightest clutch in Formula 1 to proven systems in WRC, DTM, NASCAR, Le Mans, and the Dakar Rally—this expertise goes directly into every Performance product. As a long-standing OE supplier for nearly all leading manufacturers, SACHS combines high-performance experience with manufacturing competence: higher torque reserves, precise modulation, and durable performance—tailored to numerous vehicle models and power configurations.

SACHS Performance Clutch Disc - Organic, Rigid Design

Clutch discs are subject to heavy loads and are complex components with a compact design. In addition to transmitting torque, they fulfill additional tasks such as damping torsional vibrations, providing good operating comfort, and high heat resistance. Rigid clutch discs have fewer components than the sprung version and are less prone to failure at the limit, while offering higher torque transmission capabilities.

SACHS Performance Clutch Disc | 001707 - 881864.001707

Advantages at a glance:

• Higher transmittable torque
• Higher thermal load capacity
• Higher burst speed
• Longer service life
• Engagement behavior similar to OE/Series
• Simple replacement of the standard clutch disc

Technology

The SACHS Performance clutch disc 881864.001707 with organic lining has a higher thermal load capacity, is more resistant to high speeds, and has a higher coefficient of friction than conventional organic linings. It also allows for the transmission of higher torques. Combined with the SACHS Performance clutch pressure plate, you get the ideal clutch for higher demands and the ambitious sporty driver.

The sprung lining suspension improves start-up comfort and ensures even lining support. Lining springs are wavy segments of the spring plate with a spring travel of up to approx. 1 mm, which are riveted to the clutch disc carrier plate on the gearbox side. In the case of high-performance SACHS Performance clutch discs, this lining suspension is sometimes omitted in favor of higher transmittable torque compared to the standard clutch disc.

Sachs Race Engineering (SRE) is a technical partner to all well-known racing teams, from Formula 1 and DTM to individual cups and the most exclusive premium car manufacturers.

Areas of Application

TUNING
Chip tuning,
Turbo and supercharger conversions

SPRINTS
1/4 mile racing,
Acceleration racing

COMPETITION
Rallying
(e.g., Group N)

TOWING
Vehicles with maximum load
and high stress

CIRCUIT
Endurance racing,
Club sport and autocross

EVENTS
Hill climbs, slalom,
drifting

Vehicle Manufacturer Numbers
AUDI
034 141 032 L
034 141 033
078 141 031 C
078 141 031 D
078 141 031 N
078 141 031 P
078 141 031 S
078 141 032 A

SKODA
078 141 032 A
078 141 032 AX

VOLKSWAGEN
034 141 032 L
034 141 033
078 141 031 C
078 141 031 D
078 141 031 N
078 141 031 P
078 141 032 A
