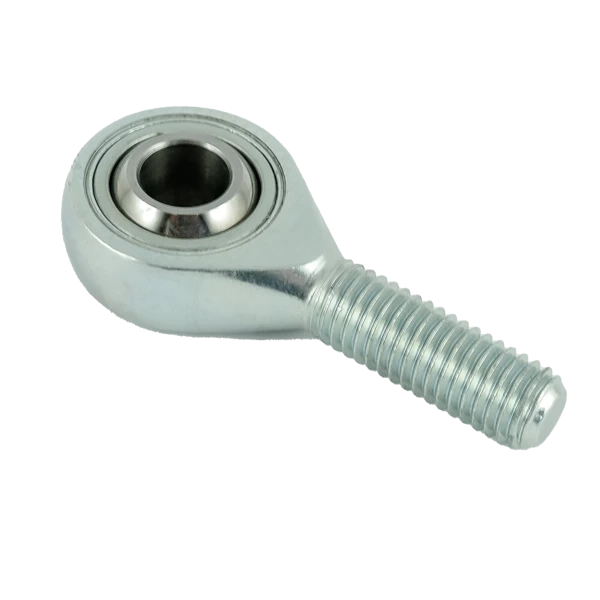

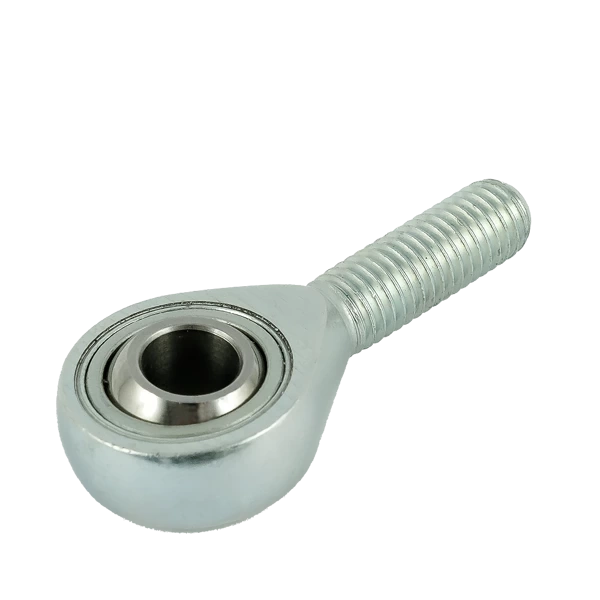

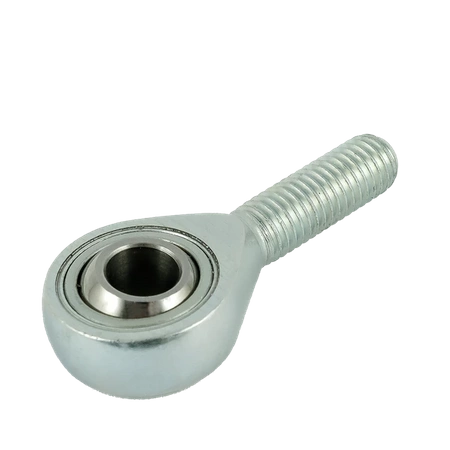

Tie rod end / tie rod end - uniball GAXS 16 FLURO - M16 right (male)
- Tie rod end / tie rod end - uniball GAXS 16 FLURO - M16 right (male)
GAXS 16 FLURO rod end - M16
GAXS Series - Rod end with external thread made of heat-treated steel, galvanized, lubricated through a concave ball grease nipple. For use under high tensile/compressive loads. Dimensional Series K - for demanding applications.
Friction pair - chrome-plated steel/bronze
Housing: heat-treated steel [DE FR IT 42CrMo4, SE 2244, GB 708M40, US Aisi4140], forged
Bearing liner: special bronze CuSn8
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
21 / 0.83"
T - width of the outer ring [mm /inch]
15 / 0.59"
L- Lenght [mm /inch]
66 / 2.60"
GM - Thread length [mm /inch]
40 / 1.57"
Deflection angle
30°
Maximum static load [kN / lbs]
67.5 / 15174.60
Maximum dynamic load [kN / lbs]
21.5 / 4833.39
Weight
189 g / 0,41667 lbs
