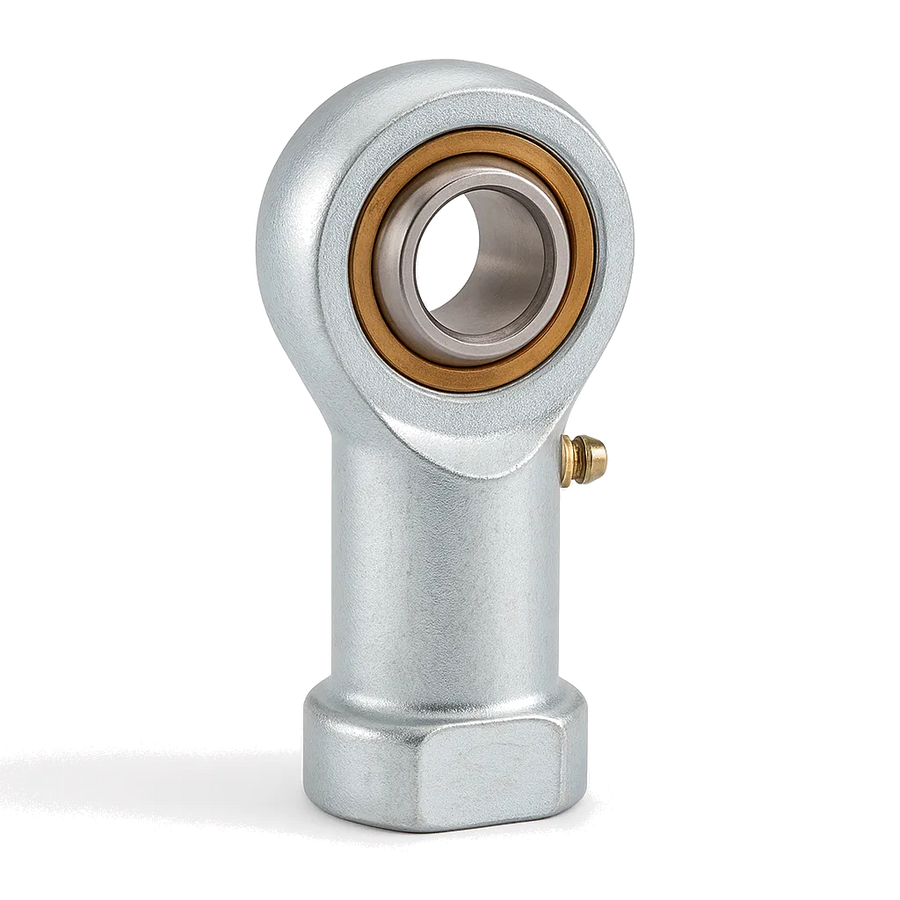

Tie rod end / rod end – uniball GILS 6 FLURO – M6 left-hand internal (female)
- GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting. Designed for use at higher rotational speeds.
FLURO GILS Rod End
GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.
For use at higher rotational speeds.
Sliding pair: steel / bronze.
Housing:
up to size 12 – free-cutting steel [DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L 13], turned
from size 14 – heat-treatable steel [DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023], forged
size 50 – heat-treatable steel C45, turned
Bearing bushing – special bronze CuSn8
Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
20 / 0.79"
W - width of the inner ring [mm /inch]
9 / 0.35"
T - width of the outer ring [mm /inch]
6.75 / 0.27"
L- Lenght [mm /inch]
30 / 1.18"
GM - Thread length [mm /inch]
12 / 0.47"
Deflection angle
26°
Maximum static load [kN / lbs]
8.9 / 2000.8
Maximum dynamic load [kN / lbs]
4.3 / 966.68
Weight
27 g / 0.060 lbs
