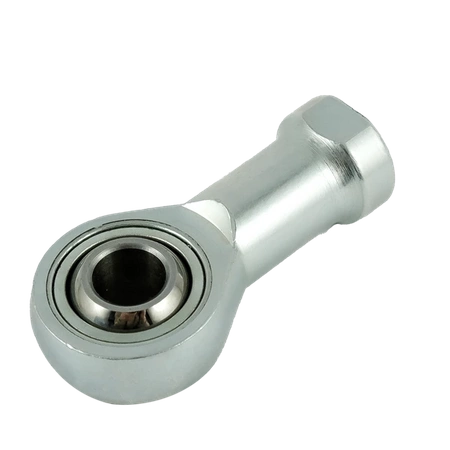

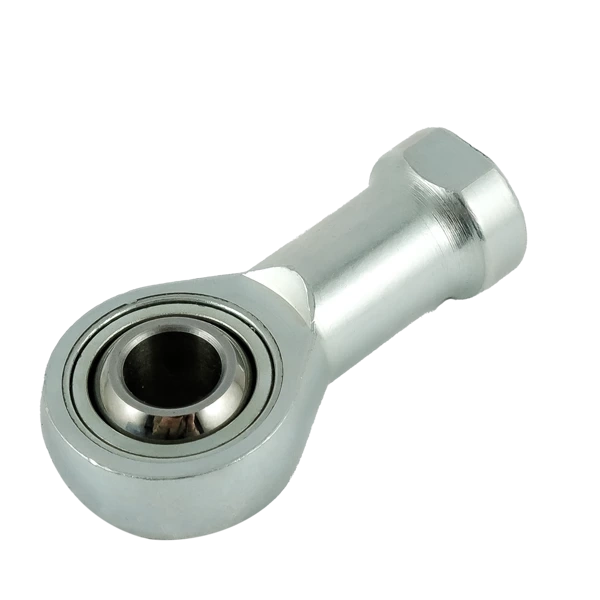

Rod end / tie rod end - uniball GILRSW 30 FLURO - M30x2 left-hand internal (female)
- GIRSW Series – Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free). Suitable for high dynamic tensile/compressive loads in corrosion-prone environments.
FLURO GIRSW Rod End
GIRSW Series - Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free).
Suitable for high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction pair: chromed steel / PTFE
Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned
Bearing bushing - special bronze CuSn8 with bonded PTFE layer
Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
34°
Maximum static load [kN / lbs]
155.0 / 34845.38
Maximum dynamic load [kN / lbs]
168 / 37767.90
Weight
1130 g / 2.491 lbs
