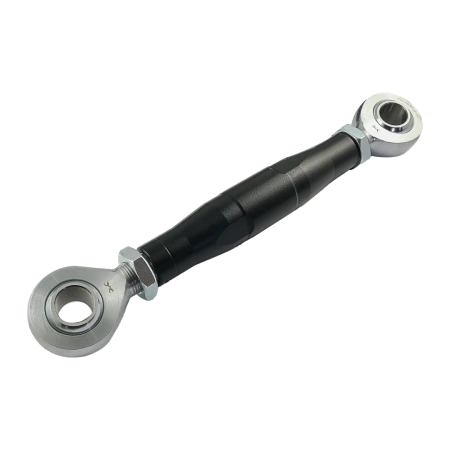

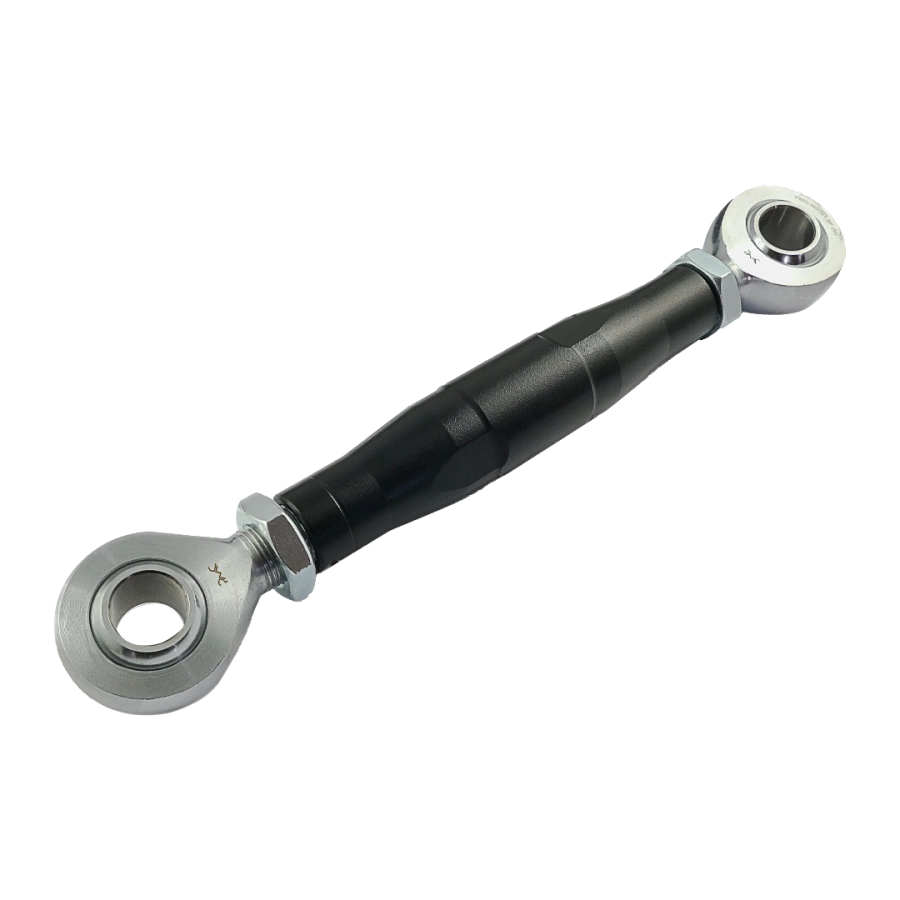

PMC Technik Double-Threaded Steel Arm / Tube – M10 (Right / Left) + M10 Uniball

The PMC Technik double-threaded steel arm / tube is a high-quality steel tube with an outer diameter of 20mm (0.79") and a wall thickness of 2.6mm (0.102"), designed for both track motorsport and off-road applications. Choose the right tube length for adjustable control arms, steering tie rods, etc.

Hydraulics and Pneumatics: Connections for hydraulic and pneumatic cylinders.

Automotive Industry: Suspensions, steering systems.

Agricultural Machinery: Joints in agricultural machines.

Construction Machinery: Joints in construction machines.

Tube Specification

Durability: Made from durable S355 steel (EN 10025-2 / carbon-manganese steel), this arm is built to withstand extreme forces, making it ideal for demanding motorsport applications.

Corrosion Resistance: A durable black powder coating (RAL 9005 - fine structure) protects against rust and wear, ensuring a long service life even in harsh conditions.

Versatile Application: With M10 threads on both ends (left and right threads), it offers flexibility for various adjustments and connections in suspension or steering systems in motorsport and tuning projects.

Precise Construction: The precise dimensions ensure a tight and secure fit, contributing to the overall stability and performance of your vehicle.

Uniball Specification

Maintenance-Free Uniball / Anti-Corrosion Protected / Does Not Require Rubber Covers

Lubrication-free Operation: Reduces the need for maintenance and associated costs.

High Load Capacity: Ideal for handling large constant directional loads.

Corrosion Resistance: Can be used in uniball in harsh weather conditions.

Long Service Life: Durability even in difficult operating conditions.

PTFE

Polytetrafluoroethylene (PTFE) is a polymer consisting of carbon and fluorine atoms. Thanks to its unique chemical structure, PTFE has exceptional physical and chemical properties.

Low Friction: PTFE has one of the lowest friction coefficients of all solid materials, making it ideal for applications requiring smooth, lubrication-free operation.
High Temperature Resistance: PTFE can operate in a wide temperature range from -50°C to +150°C.
Chemical Resistance: PTFE is resistant to almost all chemicals, making it ideal for use in aggressive environments.
Electrical Insulation: PTFE is an excellent electrical insulator, allowing it to be used in applications requiring protection against voltage surges.

Whether you are building a custom suspension link or an adjustable control arm, the PMC Technik threaded steel arm provides the strength and reliability you need.
