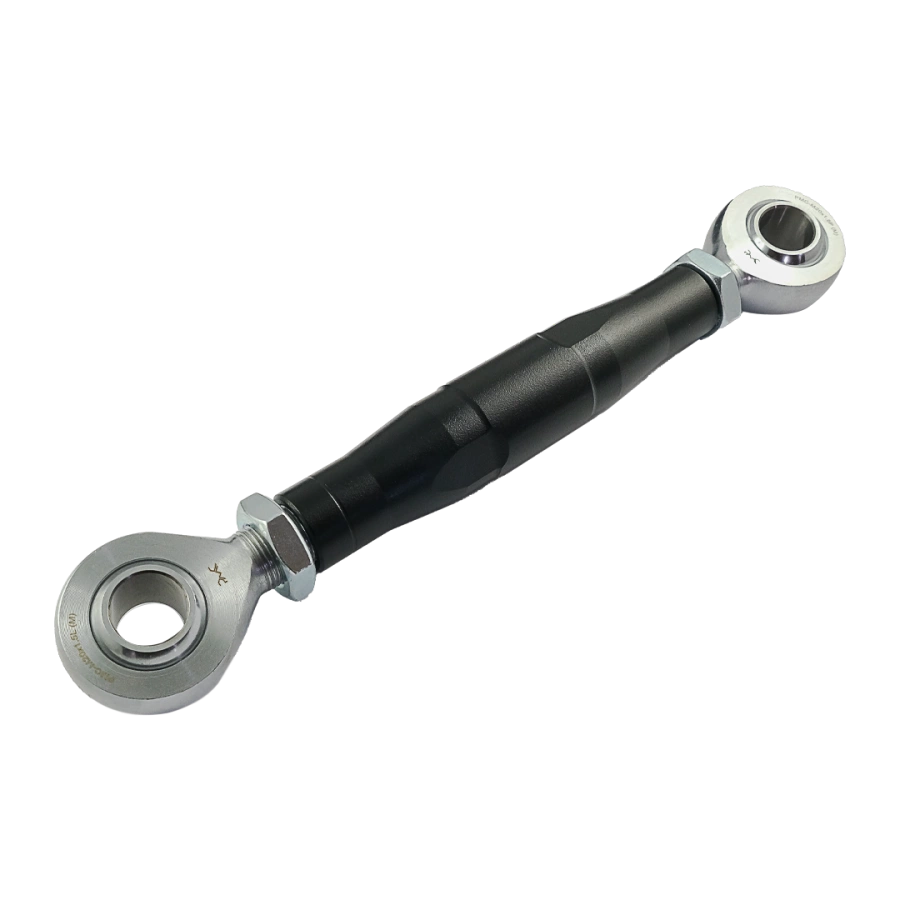

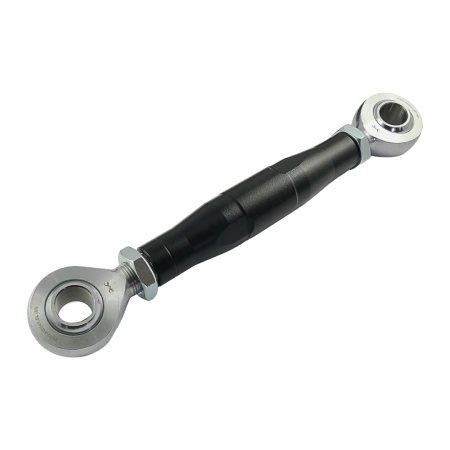

Steel Arm / Tube, Double-Threaded – M14x1.5 - (322 – 350 / 12,68" – 13,78") + Uniball
- The PMC technik steel arm / double-threaded tube is exactly what you need – this high-quality steel tube with an outer diameter of 25mm / 0,984" and wall thickness of 2,9mm / 0,11" is designed for ultimate durability.
In a set
PMC technik steel arm / tube threaded on both sides – M14x1.5 (right / left) + M14x1.5 Uniball
The PMC technik steel arm / tube threaded on both sides is a high-quality steel tube with an outer diameter of 25mm / 0.984" and a wall thickness of 2.9mm / 0.11", designed for track motorsport and off-road. Choose the appropriate tube length for adjustable control arms, tie rod ends, etc.
Hydraulics and pneumatics: Connections for hydraulic and pneumatic cylinders.
Automotive industry: Suspensions, steering systems.
Agricultural machinery: Joints for agricultural machines.
Construction machinery: Joints in construction machinery.
Tube Specification
Strength: Made of durable S355 steel (EN 10025-2 / carbon-manganese steel), this arm is built to withstand extreme forces, making it ideal for demanding motorsport applications.
Corrosion Resistance: Durable black powder coating (RAL 9005 - fine structure) protects against rust and wear, ensuring a long service life even in difficult conditions.
Versatile Application: With M14x1.5 threads on both ends (left and right thread), it offers flexibility for various adjustments and connections in suspension or steering systems for motorsport and tuning projects.
Precision Engineering: Precise dimensions ensure a tight and secure fit, contributing to the overall stability and performance of your vehicle.
Uniball Specification
Maintenance-free Uniball / corrosion-protected / does not require the use of rubber covers
Lubrication-free operation: Reduces the need for maintenance and associated costs.
High load capacity: Ideal for carrying large constant directional loads.
Corrosion resistance: Can be used in uniballs in harsh weather conditions.
Long life: Durability even in difficult operating conditions.
PTFE
Polytetrafluoroethylene (PTFE) is a polymer consisting of carbon and fluorine atoms. Thanks to its unique chemical structure, PTFE has exceptional physical and chemical properties.
Low friction: PTFE has one of the lowest friction coefficients of any solid material, making it ideal for applications requiring smooth operation without lubrication.
High temperature resistance: PTFE can operate in a wide temperature range from -50°C to +150°C.
Chemical resistance: PTFE is resistant to almost all chemicals, making it ideal for use in aggressive environments.
Electrical insulation: PTFE is an excellent electrical insulator, allowing it to be used in applications requiring protection against surges.
Whether you are building a custom suspension link or an adjustable control arm, the PMC technik threaded steel arm provides the strength and reliability you need.
