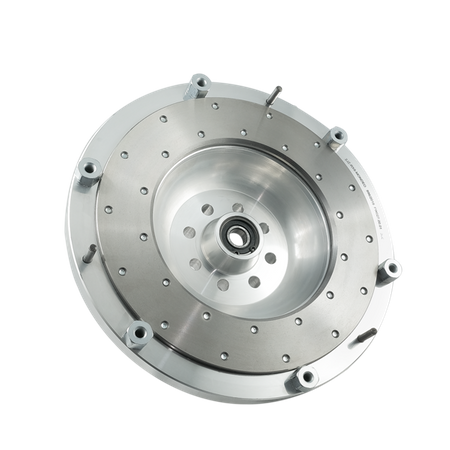

  • PMC Motorsport Lightweight custom aluminium flywheel Toyota JZ 1JZ 2JZ - Mazda RX8 RX-8 - 240mm / 9.45"
499,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

PMC Motorsport custom aluminum flywheel Toyota JZ 1JZ 2JZ - Mazda RX-8 - 240mm / 9.45"



Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the Mazda RX-8 gearbox

  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Why choose PMC Motorsport parts and adapters?

  • Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
  • Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
  • Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
  • Perfect alignment - our adapters guarantee a perfect fit of the engine and gearbox
  • Made in EU. All our production and design departments are located in the European Union
  • Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com




Engine list:

  • Toyota JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ (non VVT-i / VVT-i version)

Gearbox list (Petrol):

  • Mazda RX-8



Manual

  • An adapter is required to connect the engine to the gearbox
  • Use the flywheel / ring gear from the automatic version and one spacer (OE 4.5mm) between the engine block and the flexplate
  • Use pressure plate from BMW E39 E60 530D








 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Symbol
K0RX8-FB-JZ
Producer code
5903707404971
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

Toyota 1JZ (non VVT-i / VVT-i version)

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

Toyota 2JZ (non VVT-i / VVT-i version)

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox list (Petrol)
Mazda RX-8 5-speed
Mazda RX-8 6-speed
Clutch Set
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Recommended clutch pressure plate
SACHS XTend 3000 951 877 (BMW M57)
SACHS XTend 3000 951 952 (M57N M57N2)
SACHS PERFORMANCE 88 308 200 1243 / 883082.001243
Clutch disc
z zestawu sprzęgła LUK 624 3297 09 OE LUK 324 0430 10
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE)
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Flywheel weight
4.6 kg / 10.14 lbs
Tightening torque for flywheel bolts
72Nm + glue
Set includes
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Material
Aluminium
Replaceable friction surface
Yes
Gearbox adapter required
F0RX8-JZ
Product sales codes included
K0RX8-FB-JZ (978)
EAN
5903707404971
