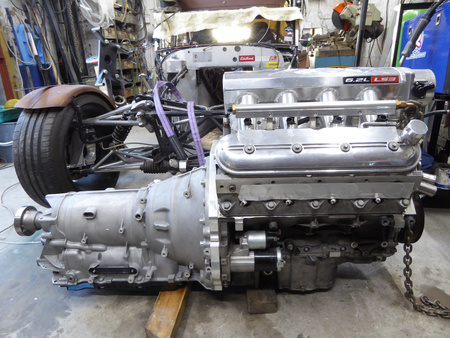

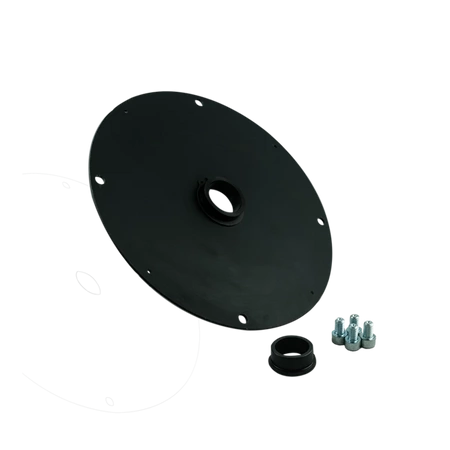

Getriebeadapter Kit GM Chevrolet LS - Jaguar Diesel ZF 8HP 8HP70
- PMC Motorsport Getriebeadapter Kit (Adaptersatz / Satz / Adaptersystem / Tauschsatz / Umrüstsatz / SWAP) GM Chevrolet V8 LS - Jaguar Diesel ZF 8HP 8HP70
Produkte im Set

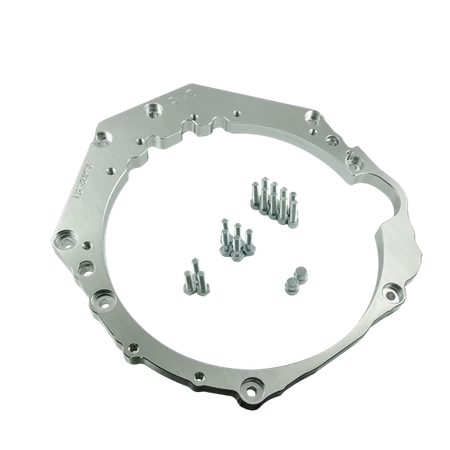

PMC Motorsport Getriebeadapter Kit (Adaptersatz / Satz / Adaptersystem / Tauschsatz / Umrüstsatz / SWAP) GM Chevrolet V8 LS - Jaguar Diesel ZF 8HP 8HP70

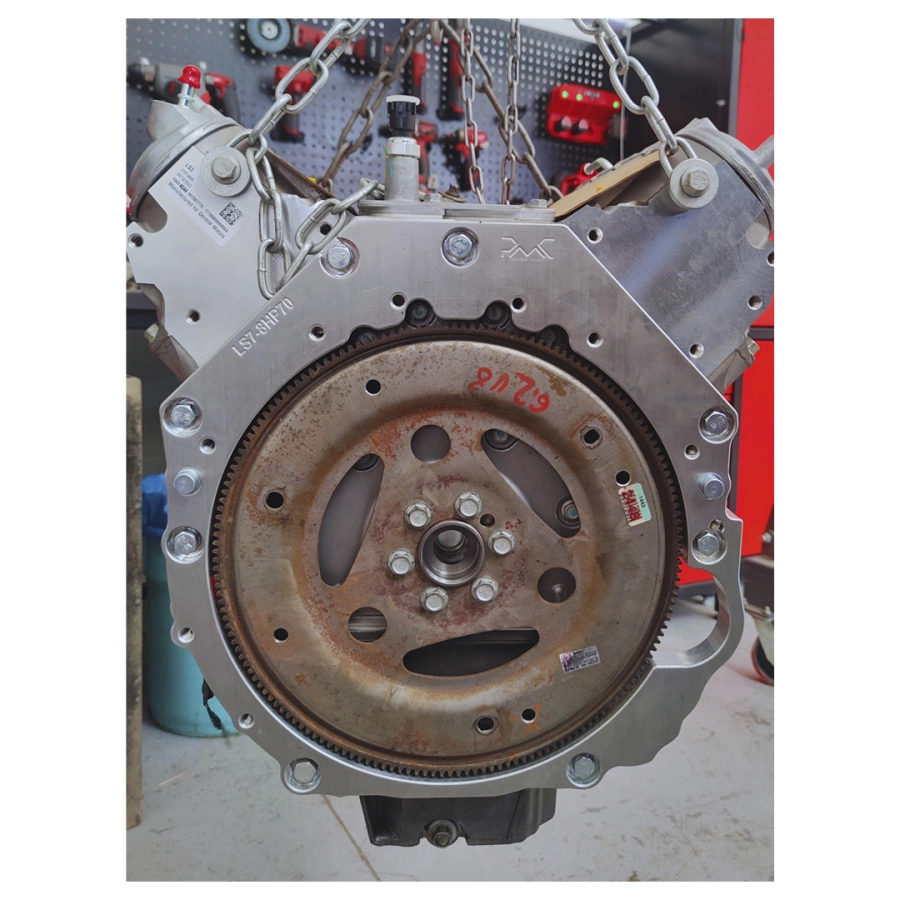

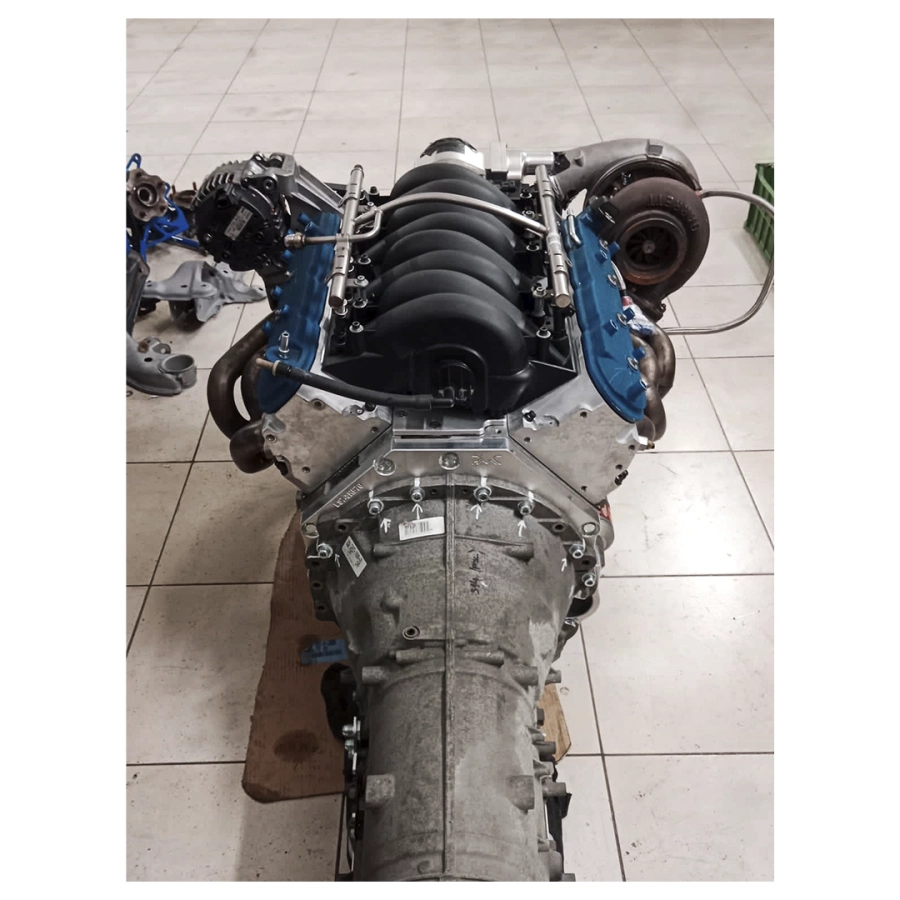

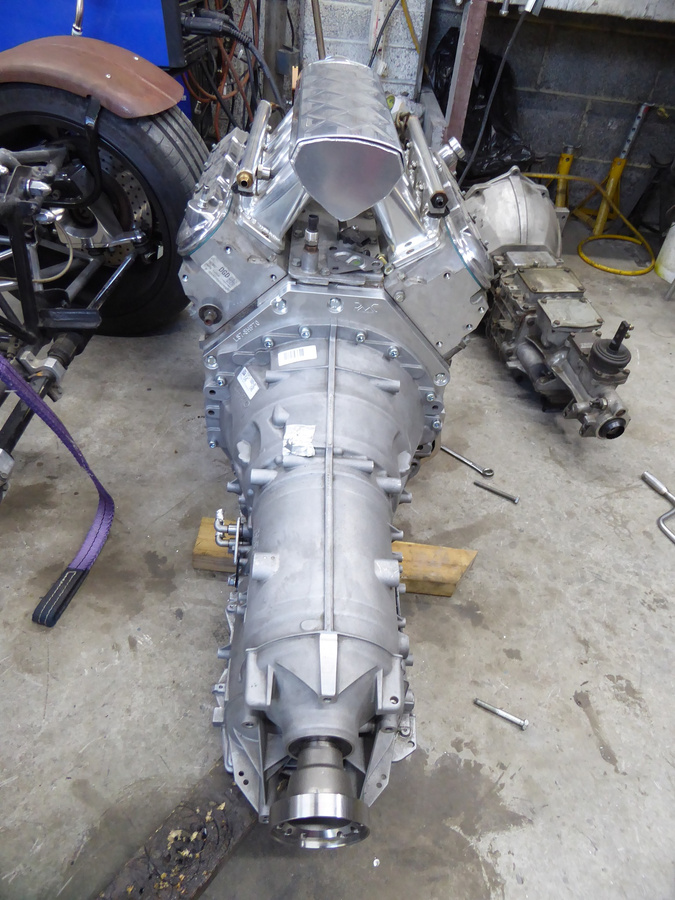

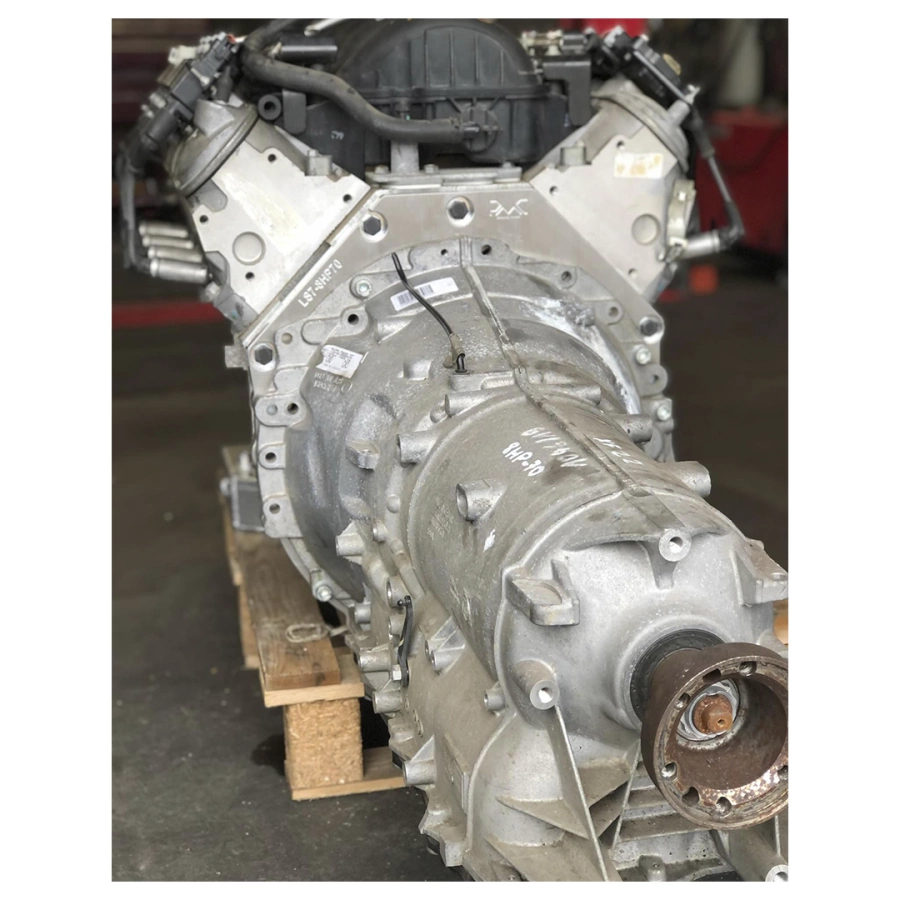

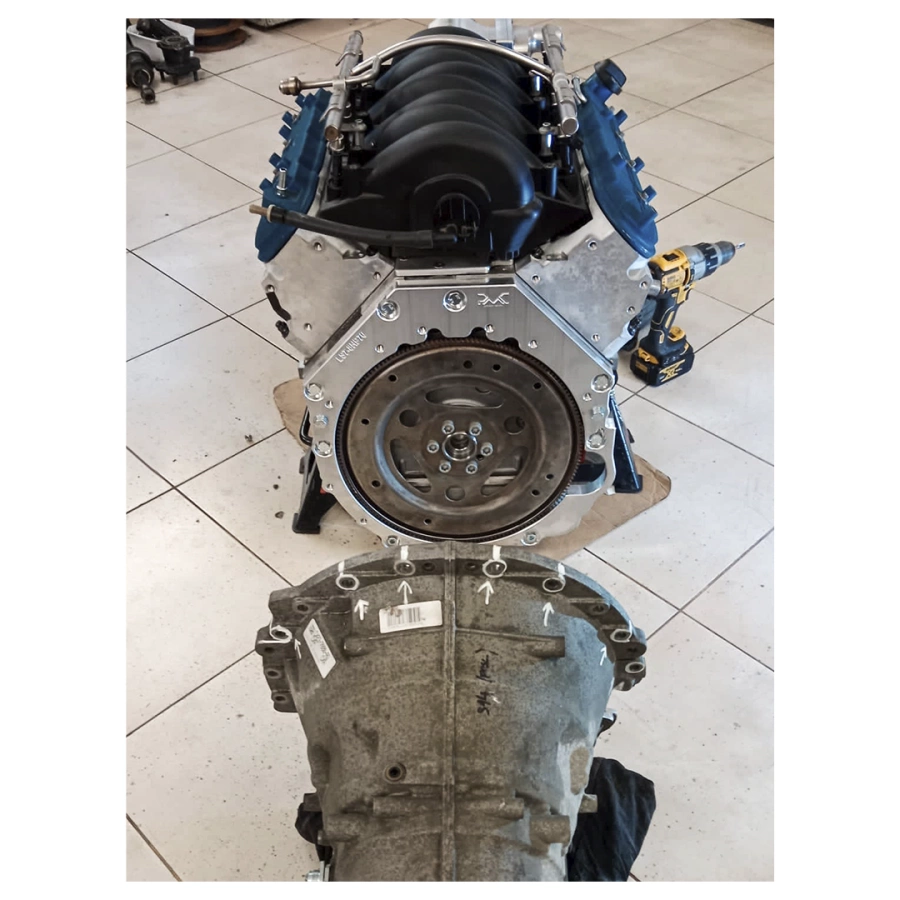

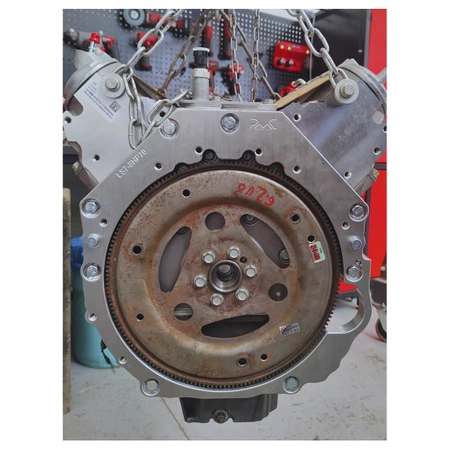

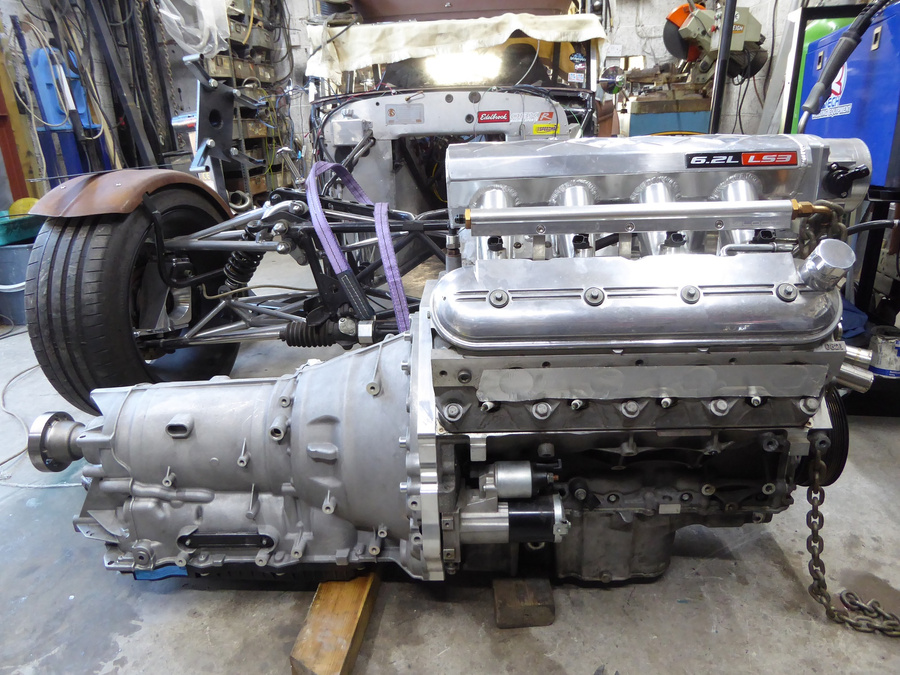

Das Adapter-Kit ermöglicht dem Benutzer den Anschluss von Motoren der GM Chevrolet LS LS1 LS3 LS6 LS7 LT1 LT4 LSA LSX Vortec mit dem ZF (ZF Friedrichshafen) Automatikgetriebe von Jaguar.
Warum PMC Motorsport Teile und Adapter wählen?
- Die Erfahrung. Tausende von produzierten Adaptern und zufriedene Kunden in der ganzen Welt. Unsere Adapter werden sowohl in Daily Cars als auch in professionellen Konstruktionen für den professionellen Motorsport eingesetzt.
- Professionalität. Vom Design bis zur Umsetzung, unsere Teile gehen einen langen Weg. Jedes Bauteil, für das wir Teile herstellen, wurde von uns mit einem Messarm und einem 3D-Scanner vermessen. Der Prototyp wird zahlreichen Tests unterzogen, um alle möglichen Probleme bei seiner Verwendung auszuschließen. Für unsere Produktion verwenden wir nur zertifizierte Materialien von zuverlässigen Lieferanten. Wir verfügen über einen modernen CNC-Maschinenpark und erfahrene Mitarbeiter.
- Qualität. Von Anfang an legen wir Wert auf die Qualität der von uns produzierten Teile. Nach jedem Produktionsschritt wird das Bauteil geprüft. Jedes von uns produzierte Bauteil wird mit der Produktionsnummer versehen. Wir bestätigen unsere Qualität mit dem ISO-Zertifikat PN-EN ISO 9001:2015
- Perfekter Rundlauf - unsere Adapter garantieren einen perfekten Sitz zwischen Motor und Getriebe
- Hergestellt in der EU. Unsere gesamte Produktions- und Konstruktionsabteilung befindet sich in der Europäischen Union
- Hilfe bei der Auswahl und Unterstützung nach dem Kauf. Unser Team hilft Ihnen bei der Auswahl des richtigen Produkts. Und wenn Sie während des Einbaus Zweifel haben, bieten sie Ihnen technische Unterstützung. Sie können uns über Facebook, Instagram und E-Mail kontaktieren: office@pmcmotorsport.com
Motoren liste: |
|
ZF 8HP Getriebe liste: |
|
Installationsanleitung:
Made in EU
ISO certificate
Marke
Symbol
A-LS-JAG
Herstellercode
5903707410040
Motormodell Chevrolet
Chevrolet LS1 6-KurbelwellenschraubenMehr
GM 5.7 Liter V8 Small Block LS1 Engine
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
Predecessor: LT1 / Gen 2 Small Block
Successor: LS6
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 5.7L V8 Gen III Small Block |
| Engine Orientation: | Longitudinal |
| Engine Mass (kg/lbs): | 177 / 390 |
| Displacement: | 5,665cc (5.7L; 346ci) |
| Compression ratio: | 10.1.:1 |
| Bore x stroke: | 99.06 x 91.948mm |
| Bore Center (mm): | 111.76 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Fuel system: | Sequential fuel injection |
| Recommended fuel: | Regular Unleaded |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: |
Forged Powder Metal |
Vehicle Applications
- 1997-2000 Chevrolet Corvette
- 2001-2004 Chevrolet Corvette
- 1998-2000 Chevrolet Camaro Z28
- 1998-2000 Chevrolet Camaro SS
- 2001-2002 Chevrolet Camaro Z28
- 2001-2002 Chevrolet Camaro SS
- 1998-2000 Pontiac Firebird Formula
- 1998-2000 Pontiac Firebird Trans Am
- 2001-2002 Pontiac Firebird Formula
- 2001-2002 Pontiac Firebird Trans Am
- 1999–2000 Holden VT.II Commodore, VT.II Calais
- 1999–2003 Holden Statesman, Caprice
- 2000–2002 Holden VX Commodore, VX Berlina, VX Calais, VU Ute
- 2001–2002 Holden Monaro
- 2002-2003 Holden Commodore SV8 and SS, Ute S and SS, Monaro
- 2003-2004 Holden Berlina, Ute S, One Tonner S
- 2003-2004 Holden Commodore SV8 and SS, Calais, Ute SS, Caprice
- 2003-2004 Holden Monaro
- 2003-2004 Holden Statesman
- 2003-2005 Holden Adventra
- 2003-2005 Holden VY.II Crewman
- 2004-2005 Holden Berlina, Calais, One Tonner, Crewman
- 2004-2005 Holden Statesman
- 2004-2005 Holden Commodore SV8 and SS, Ute SS
- 2004-2005 Holden Caprice
- 2004-2005 Holden Monaro
- 2005-2006 Holden Adventra
- 1999–2000 Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange
- 2000-2002 Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange
- 2001-03 Holden Special Vehicles HSV V2.I GTO Coupe
- 2002-2003 Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo
- 2003 Holden Special Vehicles HSV V2.II GTO Coupe
- 2003-2004 Holden Special Vehicles HSV V2.III GTO Coupe
- 2003-2004 Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange
- 2003-2005 Holden Special Vehicles HSV Y-Series Avalanche
- 2004 Holden Special Vehicles HSV V2 Coupe 4
- 2004-2005 Holden Special Vehicles HSV Z-Series Coupe 4
- 2004-2005 Holden Special Vehicles HSV Y-Series Avalanche XUV
- 2000 Holden Special Vehicles – Callaway HSV VT.II GTS
- 2000–2001 Holden Special Vehicles – Callaway HSV VX GTS
- 2000-2001 Holden Special Vehicles – Callaway HSV VX Senator 300
- 2001–2002 Holden Special Vehicles – Callaway VX SV300
- 2001–2004 Holden Special Vehicles – Callaway HSV V2 GTS Coupe
- 2002–2004 Holden Special Vehicles – Callaway HSV Y-Series GTS
Chevrolet LS2 6-śrub wału korbowegoMehr
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
Chevrolet LS3 6-śrub wału korbowego
Chevrolet LS6 6-śrub wału korbowegoMehr
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
Chevrolet LS7 6-śrub wału korbowegoMehr
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet LSX 6-śrub wału korbowego
Chevrolet Vortec 4800 LR4
Chevrolet Vortec 5300 LM7
Chevrolet Vortec 6000 L96
Chevrolet Vortec 5300 L59
Chevrolet Vortec 5300 LM4
Chevrolet Vortec 5300 L33
Chevrolet Vortec 6000 LQ4
Chevrolet Vortec 6000 LQ9
Chevrolet Vortec 6000 L77
GM Small Block V8 Chevrolet Vortec 6000 LY6
Chevrolet Vortec 6000 LFA
Chevrolet Vortec 6000 LZ1
Chevrolet Vortec 6200 L92
Chevrolet Vortec 6200 L9H
Chevrolet Vortec 6200 L94
Chevrolet LSA 8-śrub wału korbowegoMehr
GM 6.2 Liter V8 Supercharged LSA Engine
| Displacement: | 6.2L / 376 cu. in. |
|---|---|
| Aspiration: | Supercharged |
| Introduced: | 2009 model year |
| Discontinued: | 2015 |
| Predecessor: | LS3 / Gen IV Small Block |
| Successor: | LT4 / Gen V Small Block |
| Assembly: | St. Catharines, Ontario, Canada |
Specifications
| Type: | 6.2L Gen IV V8 Small Block |
| Displacement: | 6162 cc (376 ci) |
| Engine Orientation | Longitudinal |
| Compression ratio: | 9.1:1 |
| Valve configuration: | Overhead valves (2 valves per cylinder) |
| Assembly site: | Silao, Mexico |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92 mm |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6200 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | A356-T6 rotocast cast aluminum |
| Intake manifold: | Cast aluminum |
| Exhaust manifold CTS: | High silicon / high moly cast iron |
| Exhaust manifold Camaro: | Cast stainless steel |
| Main bearing caps: | Nodular Iron |
| Crankshaft: | Forged steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged powder metal |
| Additional features | |
| 1.9 L/rev Supercharger | |
| Integrated single coolant to air intercooler | |
| Piston oil spray cooling | |
| Direct mount ignition coils | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Valves per cylinder | 2 |
| Bore Center (mm) | 111.76 |
Vehicle Applications
- 2012-2015 Chevrolet Camaro ZL1
- 2008-2013 Cadillac CTS-V
Chevrolet LSX 376 454 8-śrub wału korbowego
Chevrolet Vortec 6000 L76
Automatikgetriebe ZF 8HP
Jaguar Diesel ZF 8HP 8HP70
Kupplung sets
Anlasser erforderlich (nicht im Lieferumfang enthalten)
Chevrolet LS (OE)
Schwungrad Automatik erforderlich
Chevrolet LS OE 12580709
Chevrolet LSX LSA
WEITERE INFORMATIONEN
Adapterkit-Typ
Daily
Race
Drift
Getriebe adapter dicke
25mm / 0.98"
Set enthält
Aluminium-Getriebeadapter
Schrauben des Getriebeadapters
Produktverkaufscodes
F0JAG-LS (1836)
AK0JAG-LS (1840)
EAN
5903707410040
Verkaufscode für das Set
A-LS-JAG
Stelle eine Frage
Ihre Bewertung schreiben
