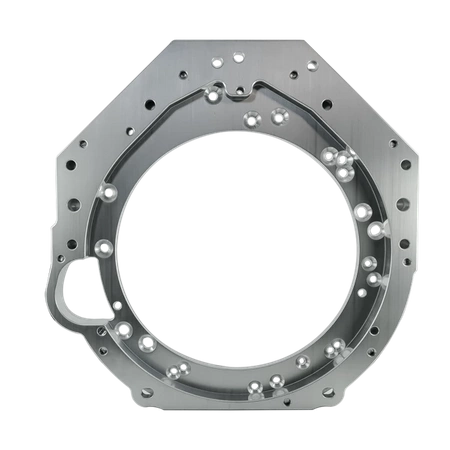

Kit adaptador GM Chevrolet V8 LS - BMW DCT DKG Getrag GS7D36SG N54 N55 S55 (H)
- PMC Motorsport Kit adaptador caja de cambios (set / juego de conversión) GM Chevrolet V8 LS - BMW N54 N55 S55 DCT DKG Getrag GS7D36SG

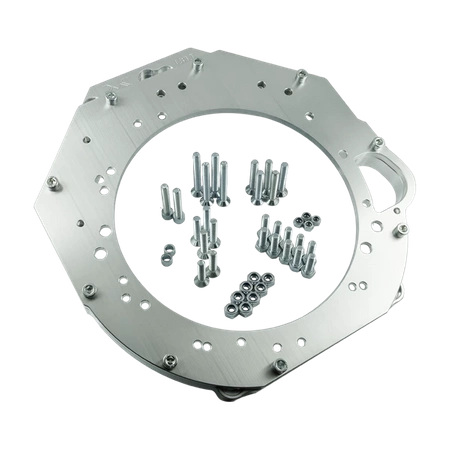

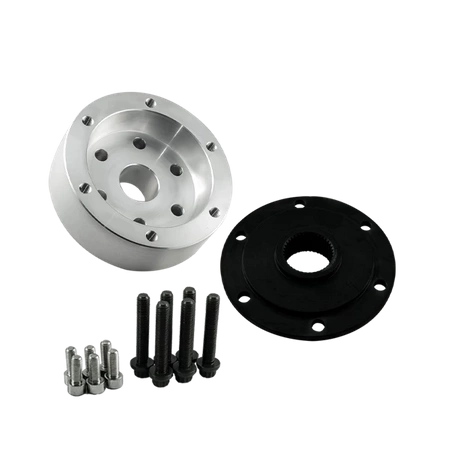

En el kit
PMC Motorsport Kit adaptador caja de cambios (set / juego de conversión) GM Chevrolet V8 LS - BMW N54 N55 S55 DCT DKG Getrag GS7D36SG

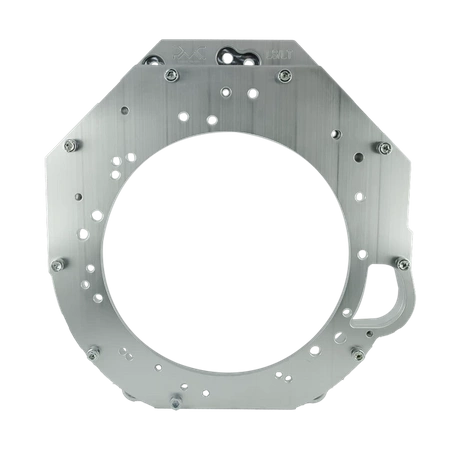

Adaptador de aluminio diseñado para la conversión de los motores GM Chevrolet LS LS1 LS3 LS6 LS7 Vortec con la caja de cambios automática BMW N54 N55 S55 DCT DKG Getrag GS7D36SG
¿Por qué elegir las piezas y adaptadores de PMC Motorsport?
- Experiencia. Miles de adaptadores fabricados y clientes satisfechos en todo el mundo. Nuestros adaptadores se utilizan tanto en coches de uso diario como en proyectos profesionales de motorsport.
- Profesionalidad. Desde el diseño hasta la puesta en marcha, nuestras piezas recorren un largo camino. Los elementos para los cuales las piezas son diseñadas, son medidos por nosotros con un brazo de medición y un escáner 3D. El prototipo se somete a numerosas pruebas para eliminar todos los posibles problemas en su uso. Durante la producción, utilizamos únicamente materiales certificados de proveedores fiables. Disponemos de un moderno parque de máquinas CNC y de empleados experimentados.
- Calidad. Desde el principio, nos centramos en la calidad de las piezas que fabricamos. Después de cada etapa de producción, cada pieza es inspeccionada. Cada componente que fabricamos lleva grabado el número de serie de producción. Comprobamos la calidad con el certificado ISO PN-EN ISO 9001:2015
- Alineación perfecta. Nuestros adaptadores garantizan un encaje perfecto del motor y la caja de cambios.
- Fabricado en la UE. Todo nuestro departamento de producción y diseño se encuentra en la Unión Europea.
- Asesoramiento y soporte posventa. Nuestro equipo le ayudará a elegir el producto adecuado. En caso de duda durante la instalación, le proporcionaremos soporte técnico. Puede ponerse en contacto con nosotros a través de Facebook, Instagram y correo electrónico: office@pmcmotorsport.com
|
|
Lista de cajas de cambios automáticas BMW GETRAG DKG DCT: |
|
Instrucciones
Made in EU
ISO certificate
Envíos a todo el mundo
Devolución hasta 30 días | * El reembolso cubre solamente productos sin uso
Fabricante
Código
A-LS-DCT6-H
Código del fabricante
5903707409914
Modelo del Motor Chevrolet
Chevrolet LS1 6-pernos cigüeñalMás
GM 5.7 Liter V8 Small Block LS1 Engine
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
Predecessor: LT1 / Gen 2 Small Block
Successor: LS6
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 5.7L V8 Gen III Small Block |
| Engine Orientation: | Longitudinal |
| Engine Mass (kg/lbs): | 177 / 390 |
| Displacement: | 5,665cc (5.7L; 346ci) |
| Compression ratio: | 10.1.:1 |
| Bore x stroke: | 99.06 x 91.948mm |
| Bore Center (mm): | 111.76 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Fuel system: | Sequential fuel injection |
| Recommended fuel: | Regular Unleaded |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: |
Forged Powder Metal |
Vehicle Applications
- 1997-2000 Chevrolet Corvette
- 2001-2004 Chevrolet Corvette
- 1998-2000 Chevrolet Camaro Z28
- 1998-2000 Chevrolet Camaro SS
- 2001-2002 Chevrolet Camaro Z28
- 2001-2002 Chevrolet Camaro SS
- 1998-2000 Pontiac Firebird Formula
- 1998-2000 Pontiac Firebird Trans Am
- 2001-2002 Pontiac Firebird Formula
- 2001-2002 Pontiac Firebird Trans Am
- 1999–2000 Holden VT.II Commodore, VT.II Calais
- 1999–2003 Holden Statesman, Caprice
- 2000–2002 Holden VX Commodore, VX Berlina, VX Calais, VU Ute
- 2001–2002 Holden Monaro
- 2002-2003 Holden Commodore SV8 and SS, Ute S and SS, Monaro
- 2003-2004 Holden Berlina, Ute S, One Tonner S
- 2003-2004 Holden Commodore SV8 and SS, Calais, Ute SS, Caprice
- 2003-2004 Holden Monaro
- 2003-2004 Holden Statesman
- 2003-2005 Holden Adventra
- 2003-2005 Holden VY.II Crewman
- 2004-2005 Holden Berlina, Calais, One Tonner, Crewman
- 2004-2005 Holden Statesman
- 2004-2005 Holden Commodore SV8 and SS, Ute SS
- 2004-2005 Holden Caprice
- 2004-2005 Holden Monaro
- 2005-2006 Holden Adventra
- 1999–2000 Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange
- 2000-2002 Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange
- 2001-03 Holden Special Vehicles HSV V2.I GTO Coupe
- 2002-2003 Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo
- 2003 Holden Special Vehicles HSV V2.II GTO Coupe
- 2003-2004 Holden Special Vehicles HSV V2.III GTO Coupe
- 2003-2004 Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange
- 2003-2005 Holden Special Vehicles HSV Y-Series Avalanche
- 2004 Holden Special Vehicles HSV V2 Coupe 4
- 2004-2005 Holden Special Vehicles HSV Z-Series Coupe 4
- 2004-2005 Holden Special Vehicles HSV Y-Series Avalanche XUV
- 2000 Holden Special Vehicles – Callaway HSV VT.II GTS
- 2000–2001 Holden Special Vehicles – Callaway HSV VX GTS
- 2000-2001 Holden Special Vehicles – Callaway HSV VX Senator 300
- 2001–2002 Holden Special Vehicles – Callaway VX SV300
- 2001–2004 Holden Special Vehicles – Callaway HSV V2 GTS Coupe
- 2002–2004 Holden Special Vehicles – Callaway HSV Y-Series GTS
Chevrolet LS2 6-pernos cigüeñalMás
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
Chevrolet LS3 6-pernos cigüeñal
Chevrolet LS6 6-pernos cigüeñalMás
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
Chevrolet LS7 6-pernos cigüeñalMás
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet LSX 6-pernos cigüeñal
Chevrolet Vortec 4800 LR4
Chevrolet Vortec 5300 LM7
Chevrolet Vortec 5300 LM4
Chevrolet Vortec 5300 L59
Chevrolet Vortec 5300 L33
Chevrolet Vortec 6000 L96
Chevrolet Vortec 6000 LQ4
Chevrolet Vortec 6000 LQ9
Chevrolet Vortec 6000 L77
GM Small Block V8 Chevrolet Vortec 6000 LY6
Chevrolet Vortec 6000 LFA
Chevrolet Vortec 6000 LZ1
Chevrolet Vortec 6200 L92
Chevrolet Vortec 6200 L9H
Chevrolet Vortec 6200 L94
Chevrolet Vortec 6000 L76
Doble embrague automático GETRAG DCT DKG GS7D36SG
BMW N54 N55 DCT DKG GS7D36SGMás
BMW GETRAG (GETRAG GS7D36SG) DCT DKG 7-speed
- BMW Engine: N54 N54B30A / N55 N55B30A
- BMW OE: 28007585538 / 28 00 7585538
- Bell housing:
- Sticker number:
Ratio:
- R - 4.350
- 1 - 4.780
- 2 - 2.933
- 3 - 2.153
- 4 - 1.678
- 5 - 1.390
- 6 - 1.203
- 7 - 1.000
BMW 1-Series 1er E82 E88
- 135i N55B30 Coupé ECE
- 135i N55B30 Coupé USA
BMW 3-Series 3er E92 E93 LCI
- 335i N54 ECE
- 335i N55 ECE
- 335i N55T USA
BMW Z4 E89
- Z4 35i N54
- Z4 35i N54
- Z4 35is N54T
- Z4 35is N54T
BMW N54 DCT DKG BE2 GS7D36SGMás
BMW GETRAG (GETRAG GS7D36SG) DCT DKG BE2 7-speed
- BMW Engine: N54 N54B30A
- BMW OE: 28008647464 / 28 00 8647464
- Bell housing:
- Sticker number:
Ratio:
- R - 4.350
- 1 - 4.780
- 2 - 2.933
- 3 - 2.153
- 4 - 1.678
- 5 - 1.390
- 6 - 1.203
- 7 - 1.000
BMW 3-Series 3er E92 E93 LCI
- 335i N54 ECE
BMW Z4 E89
- Z4 35i N54
- Z4 35i N54
- Z4 35is N54T
- Z4 35is N54T
BMW N55 DCT DKG GS7D36SG AC2Más
BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAC2 AC2 7-speed
- BMW Engine: N55 N55B30A
- BMW OE: 28 00 7853546 / 28007853546
- Bell housing:
- Sticker number:
Ratio:
- R - 4.350
- 1 - 4.806
- 2 - 2.593
- 3 - 1.707
- 4 - 1.277
- 5 - 1.000
- 6 - 0.844
- 7 - 0.671
BMW 2-Series 2er E87 LCI M2
- M2 N55 ECE
- M2 N55 USA
BMW N55 S55 DCT DKG GS7D36SG ABEMás
BMW GETRAG (GETRAG GS7D36SG) DCT DKG TABE ABE 7-speed
- BMW Engine: N55 N55B30A / S55B30A
- BMW OE: 28007853552 / 28 00 7853552
- Bell housing:
- Sticker number:
Ratio:
- R - 4.350
- 1 - 4.806
- 2 - 2.593
- 3 - 1.707
- 4 - 1.277
- 5 - 1.000
- 6 - 0.844
- 7 - 0.671
BMW 2-Series 2er E87 LCI M2
- M2 N55 ECE
- M2 N55 USA
BMW 3-Series 3er E80 LCI M3
- M3 S55 ECE
- M3 N55 US
BMW 4-Series 4er E82 E83 LCI M4
- M4 S55 Coupé ECE
- M4 S55 Coupé USA
- M4 GTS S55 Coupé ECE
- M4 GTS S55 Coupé USA
- M4 CS S55 Coupé ECE
- M4 CS S55 Coupé USA
- M4 S55 Cabrio ECE
- M4 S55 Cabrio USA
BMW N55 S55 DCT DKG GS7D36SG AEBMás
BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAEB AEB 7-speed
- BMW Engine: N55 N55B30A / S55B30A
- BMW OE: 28007853552 / 28 00 7853552
- Bell housing:
- Sticker number:
Ratio:
- R - 4.350
- 1 - 4.806
- 2 - 2.593
- 3 - 1.707
- 4 - 1.277
- 5 - 1.000
- 6 - 0.844
- 7 - 0.671
BMW 2-Series 2er E87 LCI M2
- M2 N55 ECE
- M2 N55 USA
BMW 3-Series 3er E80 LCI M3
- M3 S55 ECE
- M3 N55 US
BMW 4-Series 4er E82 E83 LCI M4
- M4 S55 Coupé ECE
- M4 S55 Coupé USA
- M4 GTS S55 Coupé ECE
- M4 GTS S55 Coupé USA
- M4 CS S55 Coupé ECE
- M4 CS S55 Coupé USA
- M4 S55 Cabrio ECE
- M4 S55 Cabrio USA
BMW N55 S55 DCT DKG GS7D36SG AEPMás
BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAEP AEP 7-speed
- BMW Engine: N55 N55B30A / S55B30A
- BMW OE: 28 00 7853557 / 28007853557
- Bell housing:
- Sticker number:
Ratio:
- R - 4.350
- 1 - 4.806
- 2 - 2.593
- 3 - 1.707
- 4 - 1.277
- 5 - 1.000
- 6 - 0.844
- 7 - 0.671
BMW 2-Series 2er E87 LCI M2
- M2 N55 ECE
- M2 N55 USA
- M2 Competition S55 Coupé ECE
- M2 Competition S55 Coupé USA
BMW 3-Series 3er E80 LCI M3
- M3 S55 ECE
- M3 N55 US
BMW 4-Series 4er E82 E83 LCI M4
- M4 S55 Coupé ECE
- M4 S55 Coupé USA
- M4 GTS S55 Coupé ECE
- M4 GTS S55 Coupé USA
- M4 CS S55 Coupé ECE
- M4 CS S55 Coupé USA
- M4 S55 Cabrio ECE
- M4 S55 Cabrio USA
BMW N55 S55 DCT DKG GS7D36SG AE2Más
BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAE2 AE2 7-speed
- BMW Engine: N55 N55B30A / S55B30A
- BMW OE: 28 00 7853559 / 28007853559
- Bell housing:
- Sticker number:
Ratio:
- R - 4.350
- 1 - 4.806
- 2 - 2.593
- 3 - 1.707
- 4 - 1.277
- 5 - 1.000
- 6 - 0.844
- 7 - 0.671
BMW 2-Series 2er E87 LCI M2
- M2 N55 ECE
- M2 N55 USA
- M2 Competition S55 Coupé ECE
- M2 Competition S55 Coupé USA
- M2 CS S55 Coupé ECE
M2 CS S55 Coupé USA
BMW 3-Series 3er E80 LCI M3
- M3 S55 ECE
- M3 N55 US
BMW 4-Series 4er E82 E83 LCI M4
- M4 S55 Coupé ECE
- M4 S55 Coupé USA
- M4 GTS S55 Coupé ECE
- M4 GTS S55 Coupé USA
- M4 CS S55 Coupé ECE
- M4 CS S55 Coupé USA
- M4 S55 Cabrio ECE
- M4 S55 Cabrio USA
MS BMW Motorsport
- F82 M4 GT4 S55 Coupé USA
- M2 CS Racing S55 Coupé USA
Kit de embrague
Kit con embrague
No
Tipo de volante de inercia
Monomasa
Motor de arranque (no incluido)
Chevrolet LS (OE)
Plato flexible / corona dentada requerida
Chevrolet LS OE 12654640 12553054 12563136 12580709 12602448 12606620 12637677
INFORMACIÓN ADICIONAL
Tipo de kit adaptador
Motorsport
Espesor del adaptador
35mm / 1.37"
El kit incluye
Placa adaptadora
Pernos para el montaje
Volante de inercia personalizado
Pernos para cigüeñal
Cubo de rueda DCT
Código de productos incluidos
F0M57-LS
K0DCT-R6-LS (3111)
Haz una pregunta
Escriba su opinión
