  • PMC Motorsport Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
  • Mercedes-Benz V8 M113 - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 240mm / 9.45" - SACHS 3000 951 949

Max torque
Adapter Kit ONLY 240mm / 9.45'' (single disc)Adapter Kit ONLY 240mm / 9.45'' (single disc)650Nm / 479,25lb⋅ft650Nm / 479,25lb⋅ft650Nm / 479,25lb⋅ft650Nm / 479,25lb⋅ft800Nm / 589,9lb⋅ft800Nm / 589,9lb⋅ft
Size
uniwersalny
1 334,00 EUR
incl. VAT / set
of
Express checkout 1-Click(without registration)
The product is available in very small quantities
The product is available in very small quantities
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

In a set

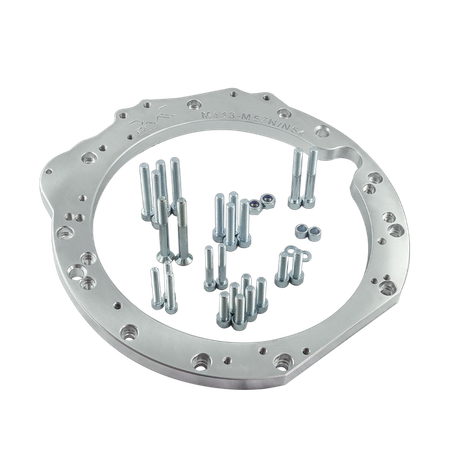

Gearbox Adapter Plate Mercedes-Benz M112 M113 M137 - Manual BMW ZF5 GS5-39DZ GS6-53DZ GS6-53BZ / 8HP / DCT
Gearbox Adapter Plate Mercedes-Benz M112 M113 M137 - Manual BMW ZF5 GS5-39DZ GS6-53DZ GS6-53BZ / 8HP / DCT (1 pcs.)
365,00 EUR / pcs.

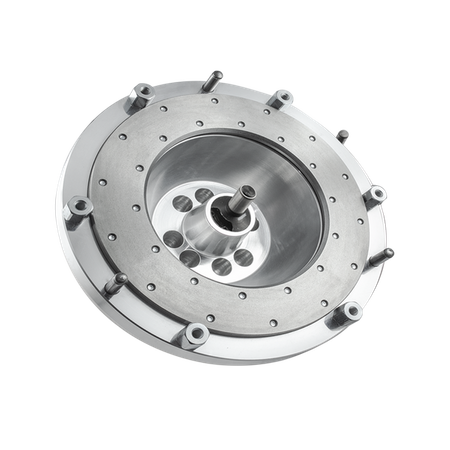

Flywheel Mercedes-Benz M113 M156 - BMW M57N GS6-53DZ HGU HGK / N54 GS6-53BZ - 240mm / 9.45"
Flywheel Mercedes-Benz M113 M156 - BMW M57N GS6-53DZ HGU HGK / N54 GS6-53BZ - 240mm / 9.45" (1 pcs.)
650,00 EUR / pcs.

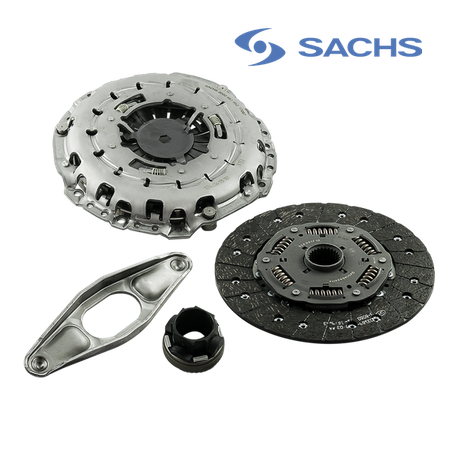

Clutch kit Sachs XTend 3000 951 949 / 3000951949
Clutch kit Sachs XTend 3000 951 949 / 3000951949 (1 pcs.)
315,00 EUR / pcs.

PMC Motorsport Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)

Mercedes-Benz V8 M113 - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 240mm / 9.45" - SACHS 3000 951 949

The adapter kit enables users connection of Mercedes-Benz M113 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment

Engine list:
  • Mercedes-Benz V8 M113 5.4K AMG
  • Mercedes-Benz V8 M113 4.3 5.0 5.4

Gearbox list:

  • BMW M57N M57N2 23.00 7565213 GS6-53DZ HGU (THGU) 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725 BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2

  • BMW M57N M57N2 23.00 753 9000 GS6-53DZ HGK (THGK) 1067 010 004 ZF 1067 401 116 1067401116

  • BMW N54 23.00 7565215 GS6-53BZ HGX (THGX) 1067 010 016 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 571 423 / 23 00 7 567 242 BMW E60 535i E90 335i N54

  • BMW N54 23.00 7581859 GS6-53BZ JGK (TJGK) 1067 010 019 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 581 860 BMW E82 135i N54 E88 135i N54

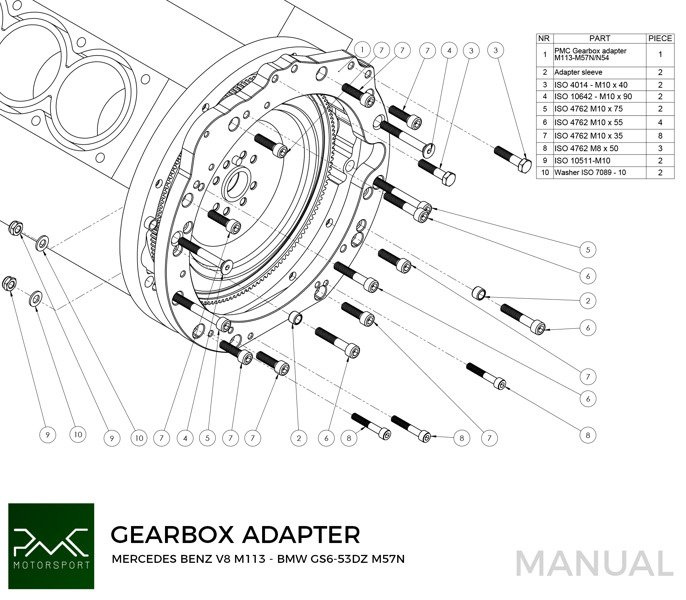

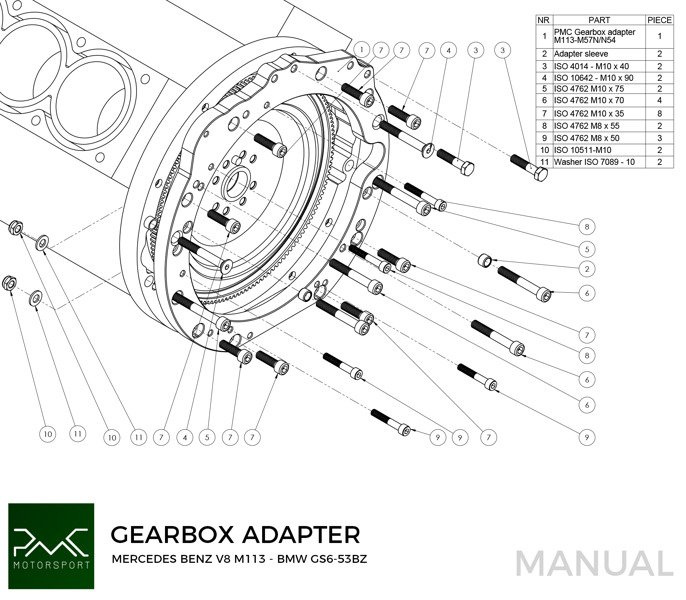

Manual

  • Use the flywheel / ring gear from the automatic version
  • Tighten the flywheel to the same torque as OE.
  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
  • Use 240mm clutch disc with spline dedicate to your gearbox.



 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Brand
PMC MOTORSPORT
Symbol
S1-M113K-HGU-949
Producer code
5903707409129
Mercedes-Benz engine list
Mercedes-Benz M113 AMG More

Mercedes-Benz M113 AMG

  • Mercedes-Benz M113 AMG 5.4 E55

    • 1997 Mercedes-Benz CLK 55 AMG F1 safety car (C208)
    • 1997–2002 Mercedes-Benz E 55 AMG (W210)
    • 1998–2000 Mercedes-Benz C 55 AMG (W202)
    • 1999–2001 Mercedes-Benz SL 55 AMG (R129)
    • 1999–2003 Mercedes-Benz G 55 AMG (W463)
    • 1999–2002 Mercedes-Benz S 55 AMG (W220&V220)
    • 1999–2002 Mercedes-Benz CLK 55 AMG (C208)
    • 1999–2002 Mercedes-Benz CL 55 AMG (C215)
    • 2000–2003 Mercedes-Benz ML 55 AMG (W163)
    • 2002–2006 Mercedes-Benz CLK 55 AMG (C209)
    • 2004–2010 Mercedes-Benz SLK 55 AMG (R171)
    • 2003–2007 Mercedes-Benz C 55 AMG (W203)
    • 2006–2008 Mercedes-Benz SLK 55 AMG Black Series (R171)



  • Mercedes-Benz M113 AMG 5.4 E55ML Kompressor

    • 2002–2006 Mercedes-Benz S 55 AMG (W220)
    • 2002–2008 Mercedes-Benz SL 55 AMG (R230)Ź
    • 2003–2006 Mercedes-Benz CL 55 AMG (C215)
    • 2003–2006 Mercedes-Benz E 55 AMG (W211)
    • 2004–2006 Mercedes-Benz CLK DTM AMG (C209)
    • 2004–2006 Mercedes-Benz CLS 55 AMG (C219)
    • 2004–2011 Mercedes-Benz G 55 AMG (W463)
    • 2005 Fisker Tramonto V8
    • 2005 Laraki Fulgura V8
Mercedes-Benz M113 More

Mercedes-Benz M113

  • Mercedes-Benz M113 4.3 E43

    • 1997–2000 Mercedes-Benz C 43 AMG (W202)
    • 1997–2002 Mercedes-Benz E 430 (W210)
    • 1998–2002 Mercedes-Benz CLK 430 (C208)
    • 1999–2001 Mercedes-Benz ML 430 (W163)
    • 1999–2006 Mercedes-Benz S 430 (W220)

  • Mercedes-Benz M113 5.0 E50

    • 1999–2001 Mercedes-Benz SL 500 (R129)
    • 1998–2008 Mercedes-Benz G 500 (W463)
    • 1999–2006 Mercedes-Benz S 500 (W220)
    • 1998–2006 Mercedes-Benz CL 500 (C215)
    • 2001–2008 Mercedes-Benz ML 500 (W163)
    • 2001–2006 Mercedes-Benz SL 500 (R230)
    • 2002–2006 Mercedes-Benz CLK 500 (C209)
    • 2002–2006 Mercedes-Benz E 500 (W211)
    • 2004–2006 Mercedes-Benz CLS 500 (C219)
    • 2005-2007 Mercedes-Benz ML 500 (W164)
    • 2006–2007 Mercedes-Benz R 500 (W251)
    • 2008–2017 SsangYong Chairman W
Manual gearbox (Petrol)
6-speed ZF GS6-53BZ BMW N54More

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number : 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215
  • BMW 3' E90 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E90 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E91 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E91 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E92 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E92 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E93 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E93 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 5' E60 LCI 535i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number : 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240
  • BMW 3' E90 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
  • BMW 3' E91 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
  • BMW 3' E92 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
  • BMW 3' E93 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859
  • BMW 1' E82 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
  • BMW 1' E88 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
  • BMW Z4' E89 35i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGY code HGY (xDrive)

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number : 1067 012 011 / 23.00-7565216 / 2300 7565216 /23007565216
  • BMW 3' E90 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E90 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E91 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E91 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E92 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E92 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E93 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E93 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 5' E60 LCI 535xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
6-speed ZF GS6-37BZ BMW M54 More
  • BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
  • BMW 3' E46 330i M54 ZF GS6-37BZ - THEB / BMW OE 23 00 7 523 981 / 23 00 7523981
  • BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
  • BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
  • BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
  • BMW 5' E61 525i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
  • BMW 5' E61 525i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
Manual gearbox (Diesel)
6-speed ZF GS6-53DZ HGU BMW E9x 330D M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU

Bell housing: 1067 401 161 / 1067401161

Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
6-speed ZF GS6-53DZ HGK BMW E9x 330D M57n2 More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK

Bell housing : 1067 401 161 / 1067401161

Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
Clutch Set
Set with Clutch
Yes
Max torque
650Nm / 479,25lb⋅ft
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Clutch Set included
Sachs XTend 3000 951 952 (M57N M57N2)
Self-adjusting
Yes
Clutch disc
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Included
Clutch fork required
Included
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Mercedes-Benz (OE)
Flexplate / ring gear / Drive plate required
Mercedes-Benz Automatic OE a2730300312
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Daily
Drift
Gearbox adapter thickness
20mm / 0.78"
Replaceable friction surface
Yes
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Clutch kit Sachs XTend 3000 951 952
Product sales codes included
K0HGU-240-M156 (1741)
F0M57-M113 (1927)
SACHS 952
EAN
5903707409129
Product code
S1-M113K-HGU-952
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:

@pmcmotorsport on Instagram Check out our profile on Instagram

pixel
