Race Stage 1 Toyota JZ - BMW N47S JGG / N57 JGL GS6-53DZ- 240mm / 9.45"

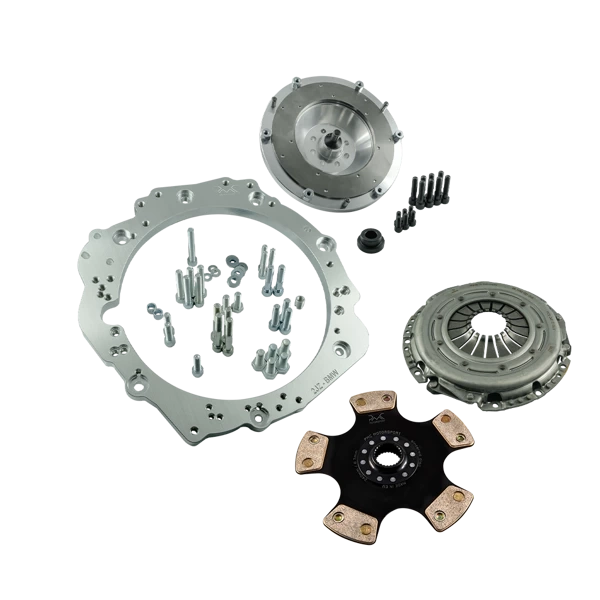

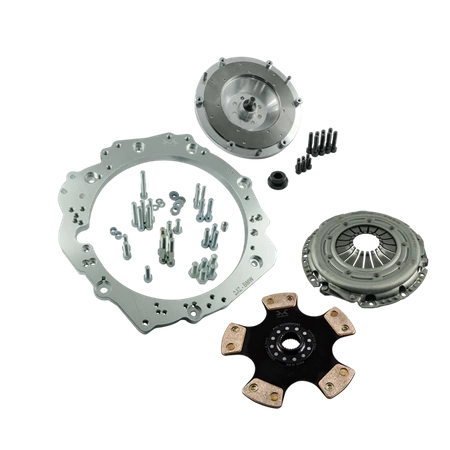

  • PMC Motorsport Race Stage 1 clutch kit Toyota JZ 1JZ 2JZ - BMW N47S ZF GS6-53DZ JGG 6-speed / BMW N57N ZF GS6-53DZ JGL 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/ft

1 448,00 EUR
incl. VAT / set
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

In a set

Gearbox Adapter Plate Toyota JZ - BMW Manual / automatic DCT 8HP
Gearbox Adapter Plate Toyota JZ - BMW Manual / automatic DCT 8HP (1 pcs.)
349,00 EUR / pcs.
Flywheel Toyota JZ - BMW ZF GS6-53DZ JGL JGG - 240mm / 9.45"
Flywheel Toyota JZ - BMW ZF GS6-53DZ JGL JGG - 240mm / 9.45" (1 pcs.)
545,00 EUR / pcs.
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"] (1 pcs.)
155,00 EUR / pcs.
Sachs Performance 88 308 200 1243 / 883082001243
Sachs Performance 88 308 200 1243 / 883082001243 (1 pcs.)
399,00 EUR / pcs.



PMC Motorsport Race Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Toyota JZ 1JZ 2JZ - BMW N47S ZF GS6-53DZ JGG 6-speed / BMW N57N ZF GS6-53DZ JGL 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/ft

Aluminum clutch kit enabling the connection (swap / conversion) of Toyota JZ 1JZ 2JZ engines (GE GTE VVT-i and non VVT-i versions) with a manual ZF gearbox (ZF Friedrichshafen) gearbox from BMW.

Custom aluminum flywheel 240mm / 9.45" with interchangeable friction disc (FW001.00.02 spare part available on the website) - adapted for BMW M57 / M57n / N54 or BMW E46 M3 pressure plate (not compatible with M50 / M52 / M54 / S50 / e36 M3). Each PMC Motorsport flywheel is checked and balanced before shipment, the kit includes all necessary mounting bolts.


Manual Transmission ZF Friedrichshafen GS6-53DZ 6-speed (S6-53DZ), due to its high durability (1000Nm+) and low price, is an ideal solution for motorsport-prepped cars. Input shaft 32,5x35-26N



Gear ratios
1 2 3 4 5 6 R
5.080 2.804 1.260 1.27 1.0 0.835 4.607






Are you increasing power or looking to switch from manual to automatic transmission? With the PMC Motorsport adapter, it's no problem. The gearbox adapter is designed to easily facilitate transitions, such as upgrading from a 5-speed to a 6-speed or from a manual to an automatic 8HP or DCT DKG transmission. Simply change the flywheel or converter adapter, and the gearbox adapter remains the same.




Why BMW ZF / Getrag Gearboxes?

Availability and price. The availability of millions of produced vehicles worldwide ensures easy access to spare parts. Parts and complete gearboxes are readily available at authorized service centers and in the secondary market.

Durability and reliability. BMW ZF/Getrag gearboxes have been successfully used in both amateur and professional motorsports for many years. They can handle very high torque (some models exceeding 1000Nm) while ensuring great reliability. They are perfect for swaps in high-power projects intended for daily use.

BMW gearboxes are also an ideal replacement for: the Toyota R154, W55, W58, V160, and V161.

Speed and convenience. Opting for the latest generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG provides ultra-fast gear shift times (0.2 seconds), enhancing both speed and convenience.



Why PMC Motorsport?

Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.

Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.



Perfect Alignment. Our adapters ensure perfect alignment between the engine and gearbox.

Made in EU. Our entire production and design department is located within the European Union.

Spare part Purchase. We offer every component of our kit separately. If you need a spare part, contact us at office@pmcmotorsport.com.

Fast International Shipping. We ship our products to all countries worldwide. Shipping prices to European Union countries (excluding islands) and the United Kingdom are calculated automatically. For countries not on the list, our team will provide a shipping calculation after purchase.

0% VAT - for customers with active European VAT

Assistance in Selection and After-Sales Support. The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, we provide technical support. You can reach us via Facebook, Instagram, or email: office@pmcmotorsport.com.





Engine list:

  • Toyota JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ (non VVT-i / VVT-i version)

Manual BMW gearbox list (Diesel) :

  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed
    • BMW ZF (ZF Friedrichshafen) N57N E9x 330D S6-53 GS6-53DZ JGL (TJGL)
    • BMW ZF (ZF Friedrichshafen) N47S E8x 123D S6-53 GS6-53DZ JGG (TJGG)

Manual



You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not inc.)

The starter remains OE Toyota 1JZ 2JZ (one mounting hole needs to be enlarged and a threaded insert included in the kit needs to be installed).

Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centering sleeve from the kit.

The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 28.5mm position.

Use a 240mm clutch disc that fits your gearbox.





pan>!!! For orders from the US, please place your order on our distribution website www.drifthq.com !!!

Symbol
RS1-JZ-JGL-SP
Producer code
5903707415410
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

Toyota 1JZ (non VVT-i / VVT-i version)

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

Toyota 2JZ (non VVT-i / VVT-i version)

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox (Diesel)
BMW N57 ZF GS6-53DZ code JGL 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGL code JGL 6-speed

  • BMW Engine: N57D30A
  • BMW OE : 23 00 7 582 711 / 23 00 7582711 / 23007582711
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number: 1067 010 020 / 23.00-7582710 / 23 00 7582710 / 23007582710

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 3-Series 3er E90 E91 E92 E93 LCI

  • E90N 325d N57
  • E90N 330d N57
  • E91N 325d N57
  • E91N 330d N57
  • E92 330d N57
  • E92N 325d N57
  • E92N 330d N57
  • E93 330d N57
  • E93N 325 N57
  • E93N 330d N57
BMW N47S ZF GS6-53DZ code JGG 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGG code JGG 6-speed

  • BMW Engine: N47S N47D20B N47D20D
  • BMW OE : 23 00 7 577 238 / 23 00 7577238 / 23007577238
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number: 1067 010 017 / 23.00-7568128 / 23 00 7568128 / 23007568128

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 1-Series 1er E81 E82 E87 E88

  • E81 123d N47S
  • E82 123d N47S
  • E87 LCI 123d N47S
  • E88 123d N47S
Clutch Set
Set with Clutch
Yes
Max torque
800Nm / 589,9 lb/ft
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Clutch Set included
Sachs Performance 88 308 200 1243 / 883082.001243
Self-adjusting
No
Clutch disc
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE)
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Daily
Drift
Gearbox adapter thickness
20mm / 0.78"
Tighten the flywheel to the specified torque
72Nm + klej
Replaceable friction surface
Yes
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Sachs Performance 88 308 200 1243 / 883082.001243
Sintered clutch disc 32,5x35-26N [240mm / 9.45"]
Product sales codes included
F0BMW-JZ
K0JGL-240-JZ
SACHS 243 (1694)
240-32,5X35-26N (1056)
EAN
5903707415410
Kod sprzedażowy zestawu
RS1-JZ-JGL-SP
