RACE STAGE 1 Toyota JZ - BMW N57 HS1 HB7 HAF 6-speed - 240mm / 9.45"

  • PMC Motorsport RACE STAGE 1 adapter kit Toyota JZ 1JZ 2JZ - BMW N57 N57N ZF GS6-53DZ HS1 HB7 HAF 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/f

1 452,00 EUR
incl. VAT / set
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

In a set

Gearbox Adapter Plate Toyota JZ - BMW Manual / automatic DCT 8HP
Gearbox Adapter Plate Toyota JZ - BMW Manual / automatic DCT 8HP (1 pcs.)
349,00 EUR / pcs.
Koło zamachowe Toyota 2JZ - BMW N47 - KOMPLET
Koło zamachowe Toyota 2JZ - BMW N47 - KOMPLET (1 pcs.)
549,00 EUR / pcs.
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"] (1 pcs.)
155,00 EUR / pcs.
Sachs Performance 88 308 200 1243 / 883082001243
Sachs Performance 88 308 200 1243 / 883082001243 (1 pcs.)
399,00 EUR / pcs.

PMC Motorsport RACE STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Toyota JZ 1JZ 2JZ - BMW N57 N57N ZF GS6-53DZ HS1 HB7 HAF 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/f



Aluminum adapter enabling to mate (SWAP / conversion) the Toyota JZ 1JZ 2JZ engine, with the manual ZF (ZF Friedrichshafen) gearbox from BMW.




Replace the automatic transmission with a manual transmission from BMW

Why is it worth choosing gearboxes from BMW?

  • Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
  • Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)



Want to SWAP Toyota JZ 1JZ 2JZ on your BMW (e30 e36 e46 e34 e39 e90 e91 e92 e60 e61 e81 e82 e87)? Our adapter is the solution for you.



Why choose PMC Motorsport parts and adapters?

  • Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
  • Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
  • Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
  • Perfect alignment - our adapters guarantee an ideal fit of the engine and gearbox
  • Made in EU. All our production and design departments are located in the European Union
  • Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com

PMC Motorsport adapters are not only replacement automatic gearboxes in the Toyota or SWAP JZ in BMW. Our kits are often used in Toyota JZ 1JZ 2JZ in other cars, e.g. Nissan S13 / S14 / S15 / PS13 / 300ZX / 350Z Z33 / 370Z Z34 or Mazda RX7 RX- 7 / RX8 RX- 8




Engine list:

  • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ-FSE
    • Toyota 1JZ-GE
    • Toyota 1JZ-GTE
  • Toyota 2JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ-FSE
    • Toyota 2JZ-GE
    • Toyota 2JZ-GTE

Manual BMW gearbox list (Diesel) :

  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed
    • BMW ZF (ZF Friedrichshafen) N57N F10 530D S6-53 GS6-53DZ HS1 (THS1)
    • BMW ZF (ZF Friedrichshafen) N57N F10 530D S6-53 GS6-53DZ HB7 (THB7)
    • BMW ZF (ZF Friedrichshafen) N57N F10 530D S6-53 GS6-53DZ HAF (THAF)



Manual

  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
  • Use a 240mm clutch disc with a spline dedicate to your gearbox.





 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Symbol
RS1-JZ-HS1-SP
Producer code
5903707415441
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

Toyota 1JZ (non VVT-i / VVT-i version)

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

Toyota 2JZ (non VVT-i / VVT-i version)

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox (Diesel)
BMW N57 ZF GS6-53DZ code HAF 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THAF code HAF 6-speed

  • BMW Engine: N57
  • BMW OE:
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number:  1067 081 155 / 23.00-4605402 / 23 00 4605402 / 23004605402

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er F10 F11

  • F11 530D N57
BMW N57 ZF GS6-53DZ code HB7 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THB7 code HB7 6-speed

  • BMW Engine: N57
  • BMW OE: 23 00 7 606 344 / 23 00 7606344 / 23007606344
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number:  1067 010 02223.00-7594141 / 23 00 7594141 / 23007594141

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er F10 F11

  • F11 530D N57
BMW N57 N57N ZF GS6-53DZ code HS1 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THS1 code HS1 6-speed

  • BMW Engine: N57 N57N
  • BMW OE: 23 00 7 624 205 / 23 00 7634205 / 23007634205
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number: 23.00-7613546 / 23 00 7613546 / 23007613546

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er F10 F11 LCI

  • F10 530D N57
  • F10N 530D N57N
  • F11 530D N57
  • F11N 530D N57N
Clutch Set
Set with Clutch
Yes
Max torque
800Nm / 589,9 lb/ft
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Clutch Set included

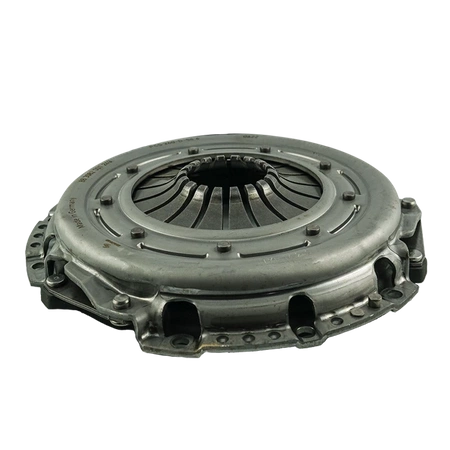

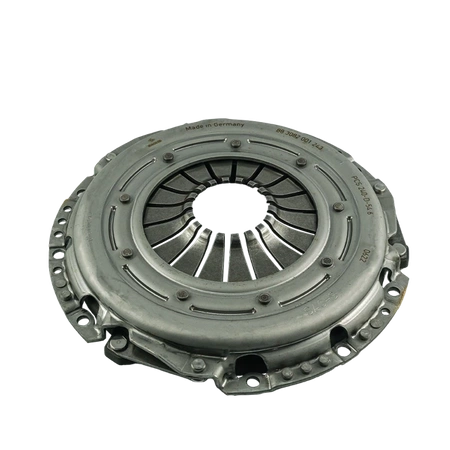

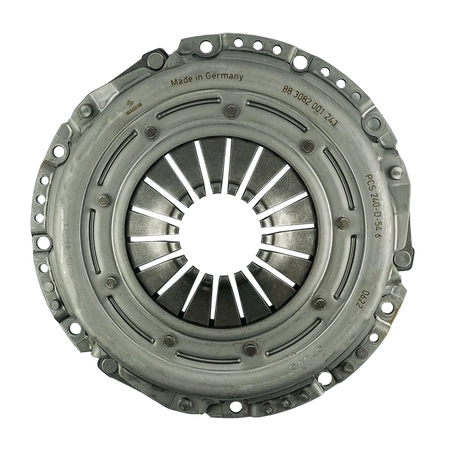

Sachs Performance 88 308 200 1243 / 883082.001243
Self-adjusting
No
Clutch disc
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE)
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Drift
Gearbox adapter thickness
20mm / 0.78"
Tighten the flywheel to the specified torque
72Nm + klej
Replaceable friction surface
Yes

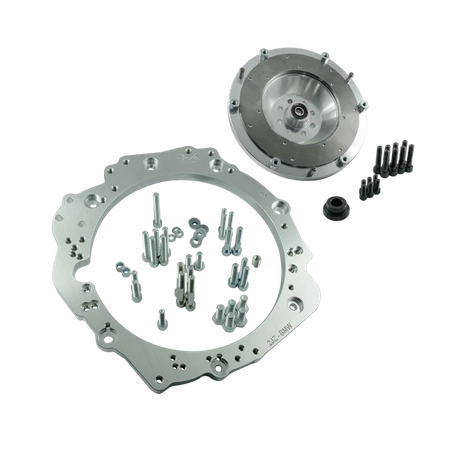

Set includes

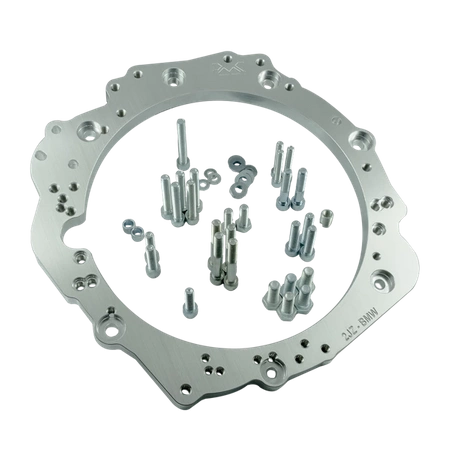

Aluminium gearbox adapter
Gearbox adapter bolts

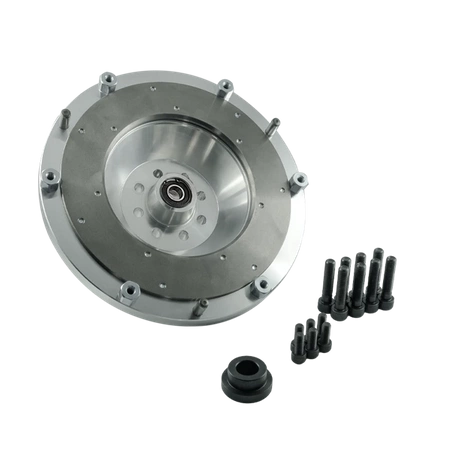

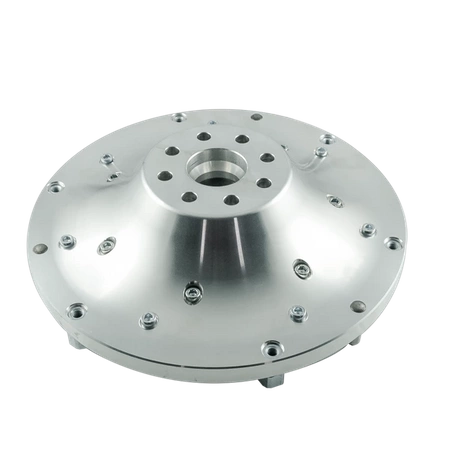

Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Sachs Performance 88 308 200 1243 / 883082.001243
Sintered clutch disc 32,5x35-26N [240mm / 9.45"]
Product sales codes included
F0BMW-JZ
K0HS1-240-JZ
SACHS 243 (1694)
240-32,5X35-26N (1056)
EAN
5903707415441
Kod sprzedażowy zestawu
RS1-JZ-HS1-SP
