STAGE 1 Mercedes-Benz M113 - BMW M57N HGU HGK / N54 - 240mm / 9.45" (949)
- PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
- Mercedes-Benz V8 M113 - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 240mm / 9.45" - SACHS 3000 951 949
Dans le set
Kit d'embrayage Sachs XTend 3000 951 949 / 3000951949 (1 pcs.)
315,00 EUR / pcs.
PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
Mercedes-Benz V8 M113 - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 240mm / 9.45" - SACHS 3000 951 949
The adapter kit enables users connection of Mercedes-Benz M113 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: |
|
Gearbox list: |
|

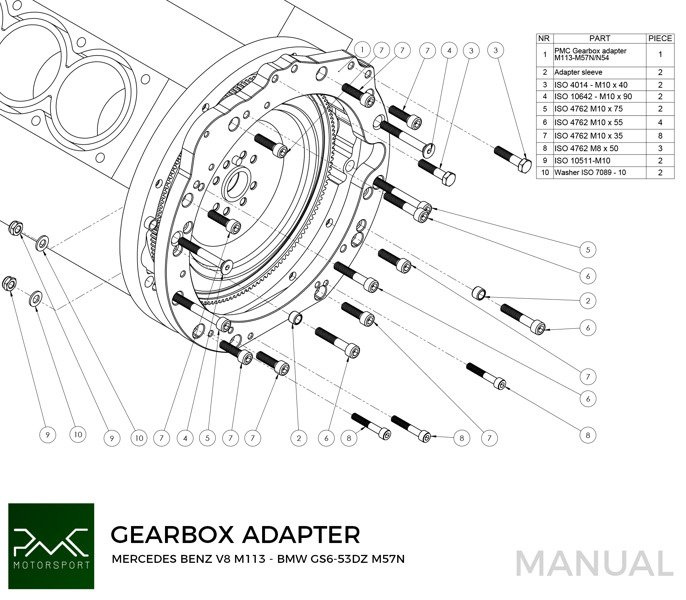

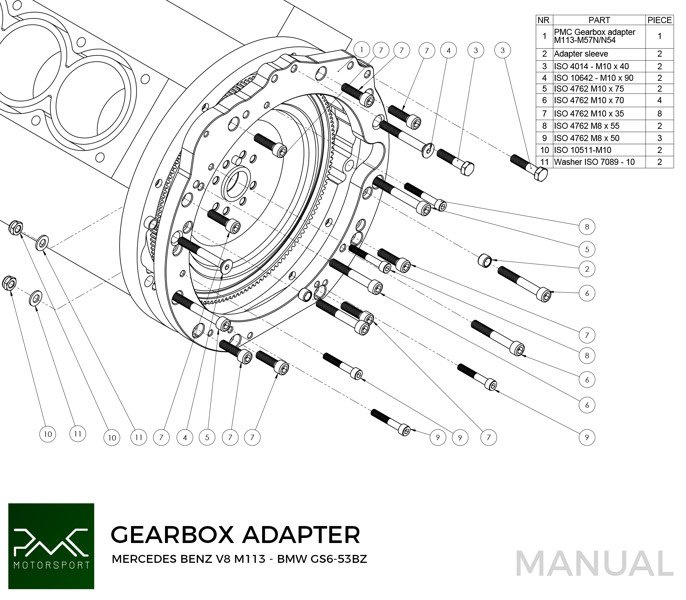

Manual
- Use the flywheel / ring gear from the automatic version
- Tighten the flywheel to the same torque as OE.
- The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
- Use 240mm clutch disc with spline dedicate to your gearbox.
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
Marque
Symbole
S1-M113K-HGU-949
Code fabricant
5903707409129
Modèle de moteur Mercedes-Benz
Mercedes-Benz V8 M113 AMG Lire la suite
Mercedes-Benz M113 AMG
-
Mercedes-Benz M113 AMG 5.4 E55
- 1997 Mercedes-Benz CLK 55 AMG F1 safety car (C208)
- 1997–2002 Mercedes-Benz E 55 AMG (W210)
- 1998–2000 Mercedes-Benz C 55 AMG (W202)
- 1999–2001 Mercedes-Benz SL 55 AMG (R129)
- 1999–2003 Mercedes-Benz G 55 AMG (W463)
- 1999–2002 Mercedes-Benz S 55 AMG (W220&V220)
- 1999–2002 Mercedes-Benz CLK 55 AMG (C208)
- 1999–2002 Mercedes-Benz CL 55 AMG (C215)
- 2000–2003 Mercedes-Benz ML 55 AMG (W163)
- 2002–2006 Mercedes-Benz CLK 55 AMG (C209)
- 2004–2010 Mercedes-Benz SLK 55 AMG (R171)
- 2003–2007 Mercedes-Benz C 55 AMG (W203)
- 2006–2008 Mercedes-Benz SLK 55 AMG Black Series (R171)
-
Mercedes-Benz M113 AMG 5.4 E55ML Kompressor
- 2002–2006 Mercedes-Benz S 55 AMG (W220)
- 2002–2008 Mercedes-Benz SL 55 AMG (R230)Ź
- 2003–2006 Mercedes-Benz CL 55 AMG (C215)
- 2003–2006 Mercedes-Benz E 55 AMG (W211)
- 2004–2006 Mercedes-Benz CLK DTM AMG (C209)
- 2004–2006 Mercedes-Benz CLS 55 AMG (C219)
- 2004–2011 Mercedes-Benz G 55 AMG (W463)
- 2005 Fisker Tramonto V8
- 2005 Laraki Fulgura V8
Mercedes-Benz V8 M113 Lire la suite
Mercedes-Benz M113
-
Mercedes-Benz M113 4.3 E43
- 1997–2000 Mercedes-Benz C 43 AMG (W202)
- 1997–2002 Mercedes-Benz E 430 (W210)
- 1998–2002 Mercedes-Benz CLK 430 (C208)
- 1999–2001 Mercedes-Benz ML 430 (W163)
- 1999–2006 Mercedes-Benz S 430 (W220)
-
Mercedes-Benz M113 5.0 E50
- 1999–2001 Mercedes-Benz SL 500 (R129)
- 1998–2008 Mercedes-Benz G 500 (W463)
- 1999–2006 Mercedes-Benz S 500 (W220)
- 1998–2006 Mercedes-Benz CL 500 (C215)
- 2001–2008 Mercedes-Benz ML 500 (W163)
- 2001–2006 Mercedes-Benz SL 500 (R230)
- 2002–2006 Mercedes-Benz CLK 500 (C209)
- 2002–2006 Mercedes-Benz E 500 (W211)
- 2004–2006 Mercedes-Benz CLS 500 (C219)
- 2005-2007 Mercedes-Benz ML 500 (W164)
- 2006–2007 Mercedes-Benz R 500 (W251)
- 2008–2017 SsangYong Chairman W
Boîte de vitesses manuelle (Essence)
BMW N54 ZF GS6-53BZ code HGX 6-vitessesLire la suite
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX 6-speed
- BMW Engine: N54 N54B30A
- BMW OE: 23 00 7 526 820 / 23 00 7526820 / 23007526820
- Bell housing: 1067 401 127 / 1067401127
- Sticker number: 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215
Ratio
- 1 - 4.055
- 2 - 2.396
- 3 - 1.582
- 4 - 1.192
- 5 - 1.000
- 6 - 0.872
- R - 3.677
BMW 3-Series 3er E90 E91 E92 E93 / LCI
- E90 335i N54B30A
- E90N 335i N54B30A
- E91 335i N54B30A
- E91N 335i N54B30A
- E92 335i N54B30A
- E92N 335i N54B30A
- E93 335i N54B30A
- E93N 335i N54B30A
BMW 5-Series 5er E60 LCI
- E60 535i N54B30A
BMW N54 ZF GS6-53BZ code JGK 6-vitessesLire la suite
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK 6-speed
- BMW Engine: N54 N54B30A
- BMW OE: 23 00 7 581 860 / 23 00 7581860 / 23007581860
- Bell housing: 1067 401 127 / 1067401127
- Sticker number: 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859
Ratio
- 1 - 4.055
- 2 - 2.396
- 3 - 1.582
- 4 - 1.192
- 5 - 1.000
- 6 - 0.872
- R - 3.677
BMW 1-Series 1er E81 E88
- E82 135i N54B30A
- E88 135i BMW E89 Z4 35i N54B30A
BMW BMW E89 Z4 35i N54B30A
BMW N54 ZF GS6-53BZ code JGF 6-vitessesLire la suite
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGF code JGF 6-speed
- BMW Engine: N54 N54B30A
- BMW OE:
- Bell housing: 1067 401 127 / 1067401127
- Sticker number: 1067 081 104 / 23.00-4545952 / 23 00 4545952 / 23004545952
Ratio
- 1 - 4.055
- 2 - 2.396
- 3 - 1.582
- 4 - 1.192
- 5 - 1.000
- 6 - 0.872
- R - 3.677
BMW 3-Series 3er E90 E91 E92 E93 LCI
- E90 335i N54B30
- E90N 335i N54B30
- E91 335i N54B30
- E91N 335i N54B30
- E92 335i N54B30
- E92N 335i N54B30
- E93 335i N54B30
- E93N 335i N54B30
BMW 5-Series 5er E60 LCI
- E60N 535i N54B30
BMW N54 ZF GS6-53BZ code JGD 6-vitessesLire la suite
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD 6-speed
- BMW Engine: N54 N54B30A
- BMW OE: 23 00 7 567 242 / 23 00 7567242 / 23007567242
- Bell housing: 1067 401 127 / 1067401127
- Sticker number: 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240
Ratio
- 1 - 4.055
- 2 - 2.396
- 3 - 1.582
- 4 - 1.192
- 5 - 1.000
- 6 - 0.872
- R - 3.677
BMW 3-Series 3er E90 E91 E92 E93 / LCI
- E90 335i N54B30A
- E90N 335i N54B30A
- E91 335i N54B30A
- E91N 335i N54B30A
- E92 335i N54B30A
- E92N 335i N54B30A
- E93 335i N54B30A
- E93N 335i N54B30A
BMW 5-Series 5er E60 LCI
- E60 535i N54B30A
Boîte de vitesses manuelle (Diesel)
BMW M57N2 ZF GS6-53DZ code HGU 6-vitessesLire la suite
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU 6-speed
- BMW Engine: M57N2 306D3
- BMW OE : 23 00 7 571 420 / 23 00 7571420 / 23007571420
- Bell housing: 1067 401 061 / 1067401061
- Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 / 23007565213
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 3-Series 3er E90 E91 E92 E93
- E90 325D M57N2
- E90 330D M57N2
- E90N 325D M57N2
- E91 325D M57N2
- E91 330D M57N2
- E91N 325D M57N2
- E92 325D M57N2
- E92 330D M57N2
- E93 325D M57N2
- E93 330D M57N2
BMW M57N2 ZF GS6-53DZ code HGK 6-vitessesLire la suite
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK 6-speed
- BMW Engine: M57N2 306D3
- BMW OE : 23 00 7 560 725 / 23 00 7560725 / 23007560725
- Bell housing: 1067 401 061 / 1067401061
- Sticker number: 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 3-Series 3er E90 E91 E92 E93
- E90 325D M57N2
- E90 330D M57N2
- E90N 325D M57N2
- E91 325D M57N2
- E91 330D M57N2
- E91N 325D M57N2
- E92 325D M57N2
- E92 330D M57N2
- E93 325D M57N2
- E93 330D M57N2
Clutch Set
Ensemble avec embrayage
Oui
Couple maximum
650Nm / 479,25 lb/ft
Type volant moteur
Single Disc
Diamètre du plateau de friction
240mm / 9.45"
Embrayage inclus
Sachs XTend 3000 951 952 (M57N M57N2)
Autorégulation
Oui
Disque embrayage
Inclus
Spline
32,5x35-26N
Nombre de Dents
26
Butée
Inclus
Fourchette d’embrayage nécessaire
Inclus
Cylindre récepteur d'embrayage
Propre à la boite de vitesse
Démarreur requis (non inclus)
Mercedes-Benz (OE) Brak w zestawie
Couronne requise
Mercedes-Benz Automatic OE a2730300312
ADDITIONAL INFORMATION
Type de kit d'adaptateur
Motorsport
Daily
Drift
Epaisseur de la plaque d’adaptation
20mm / 0.78"
Disque d’embrayage remplaçable
Oui
Kit comprend

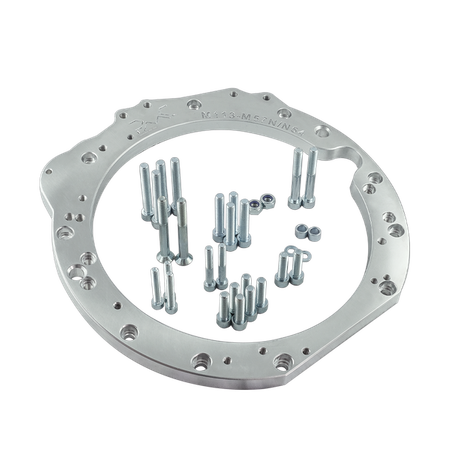

Adaptateur de boite de vitesse en Aluminium
Vis pour boite de vitesse

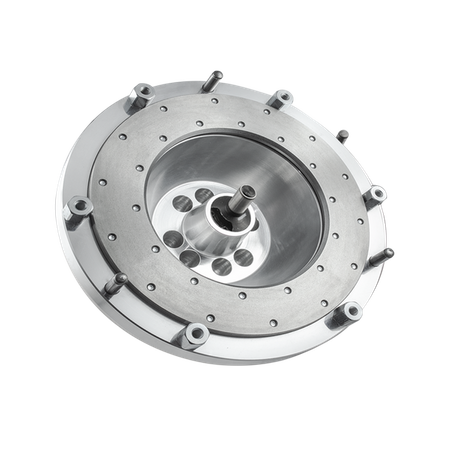

Volant moteur
Kit vis vilebrequin
Kit vis couvercle d’embrayage
Kit d'embrayage Sachs XTend 3000 951 952
Code produit inclus
K0HGU-240-M156 (1741)
F0M57-M113 (1927)
SACHS 952 (1739)
EAN
5903707409129
Kod sprzedażowy zestawu
S1-M113K-HGU-952
