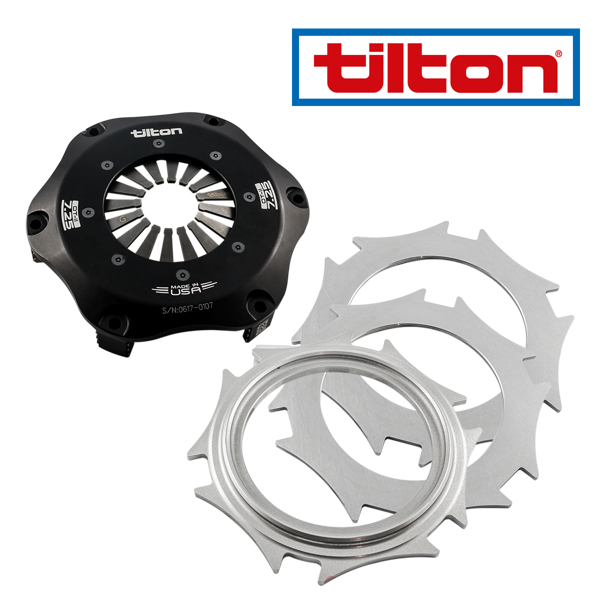

Tilton Engineering OT-II 7.25" Metallic Clutch 66-003UW (S)

  • Tilton Engineering 66.003UW 7.25″ OT-II Metallic Racing Clutches (Step Type) - Pressure Plate ONLY
  • Tilton Engineering OT-II 7.25" Metallic Clutch 66-003UW (S)
Product code: TILTON 66.003 UW STEP
1 089,00 EUR
/ pcs.

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
We care about your comfort, that's why our shop offers returns on favorable terms.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

Tilton Engineering 66.003 UW 7.25″ OT-II Metallic Racing Clutches (Step Type) - Pressure Plate ONLY

Designed primarily for road racing, circle track, open wheel and formula applications, Tilton’s 7.25″ OT-II metallic racing clutches offer the low moment-of-inertia, high torque capacity and reliability necessary for the most demanding racing applications. These features have made metallic clutches the most common clutch type used in road racing and circle track racing. Metallic clutches are not recommended for street use.

Applications

  • Road Racing
  • Circle Track
  • Open Wheel
  • Formula



Tilton offers two different styles of every clutch configuration: one designed to be compatible with a step-type flywheel, and another for pot-type (“no-step”) flywheels. Step flywheels have a .100″ step for contact with the friction material of the clutch, so clutches made for this application will have a .100″ height difference between the bottom friction disc and the end of the clutch cover legs (the mounting points). Pot flywheels don’t have this step, so the friction disc and clutch cover legs will be flush on clutches designed for them.



Tilton’s 7.25″ metallic clutches are available with either a High Ratio or Ultra-High Ratio pressure plate. High Ratio pressure plates offer high clamp load over a wide wear range, while Ultra-High Ratio pressure plates provide 20% more clamp load and diaphragm spring travel (modulation). As seen on the graph below, the clamp load (or torque capacity) of the High Ratio pressure plate is relatively flat until .030″ (76mm) of wear; Ultra-High Ratio pressure plates offer a higher initial clamp load at a faster wear rate.

Pressure Plate Clamp Load Curve

High Ratio Pressure Plate Header

  • Standard pressure plate ratio for 7.25″ metallic clutches
  • Short release travel for quick engagement and shifting
  • Flat clamp load curve for longest wear range

Ultra-High Ratio Pressure Plate Header

  • 20% more release travel than High Ratio for improved modulation
  • 20% more clamp load than High Ratio for higher peak torque capacity
  • Clamp load reduced more quickly with wear than High Ratio
Tech specs:
Especificações
Diâmetro da placa de fricção:
184mm / 7.25"
Rodzaj sprzęgła:
3-tarczowy
Tipo prato de pressão:
Ultra High
Twardość sprężyny:
W
Torque máximo:
978 Nm / 720 lb-ft
Siła wysprzęglania:
400 lb / 180 daN
Waga:
9.9 lbs / 4.5kg
Bezwładność:
87.6 lb-in² / 0.0258 kg-m²
Typ koła zamachowe:
STEP
INFORMAÇÃO ADICIONAL
O kit inclui:
Tampa da embreagem
,
Płyty pływające
