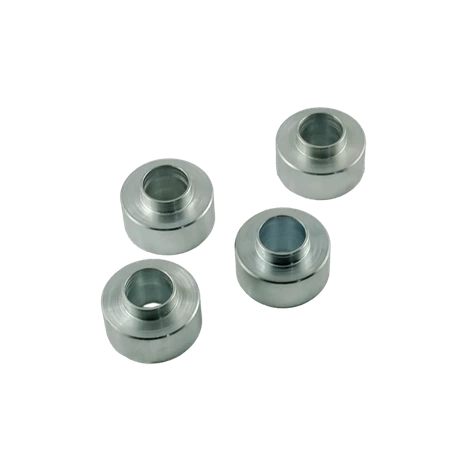

AUDI A6 S4 S6 C4 HP2 UFO BREMBO Z17/Z18 CALIPER ADAPTER
- PMC Motorsport Brake caliper adapters for Audi A6 S4 S6 C4.
PMC Motorsport front axle brake caliper adapter for Audi A6 C4 S6 C4 and Audi 100 C4. Brembo Z17 Z18
BBK kit for cars fitted with HP2 and UFO knuckles
Advantages:
Increased thermal capacity of the brake system
Extended service life compared to the original brake system
Increased braking power
Adapters are made of high-strength alloy steel
Kit includes:
Brake caliper adapters
Screws for fixing the brake callipers
Made in EU
ISO certificate
Installation Manual: Big Brake Kit (Brembo Z17/Z18) for Audi C4 Specifically for PMC Motorsport Eccentric (Offset) Bushing Set
Step 1: Caliper Preparation ("Mirror" Configuration): Cayenne/Touareg calipers sit in a different position than on an Audi. To bleed them correctly: Swap the bleeder screws with the crossover pipe. Position them so that the bleeders are at the very top once mounted. Clean the mounting ears where the PMC bushings will be inserted.
Step 2: Knuckle Preparation (For UFO version): If converting from UFO brakes, you must cut off the "third ear" (the extra casting tab) with an angle grinder, as it blocks the new setup. Apply anti-corrosion paint to the cut area.
Step 3: Rotor Mounting and Centering: Use centering rings to align the rotor on the Audi hub. Temporarily secure the rotor with one lug bolt and a spacer to keep it stationary.
Step 4: The Core – Eccentric Bushings: This is the most important stage for brake geometry. Insert the 4 PMC bushings into the caliper ears. Place the caliper over the rotor and pass the long bolts through. Adjustment: Rotate the bushings to move the caliper up, down, or sideways. Goal: Center the rotor perfectly within the caliper slot and ensure the pads do not overhang the rotor edge. Apply blue Loctite and torque to 110–120 Nm.
Step 5: Hydraulics and Bleeding: Use braided steel lines (M10x1 thread). Bleed the system using fresh DOT 4/5.1 fluid.
Step 6: Bedding-in: For the first 200 km, avoid hard braking. Perform 10 decelerations from 80 km/h to 20 km/h to mate the pads to the rotor.
