Flywheel Nissan SR SR20 - Mazda RX-8 - 240mm / 9.45"
- PMC Motorsport Lightweight custom aluminium flywheel Nissan SR SR20 SR20DET - Mazda RX8 RX-8 - 240mm / 9.45"
Save by buying more
Adapter Kit Nissan SR20 - Mazda RX-8 - 240mm / 9.45" SWAP
Regular price: 948,00 EUR(Cheaper in the set by 5%)
900,60 EUR incl. VAT
Lowest price in 30 days before discount: 834,24 EUR

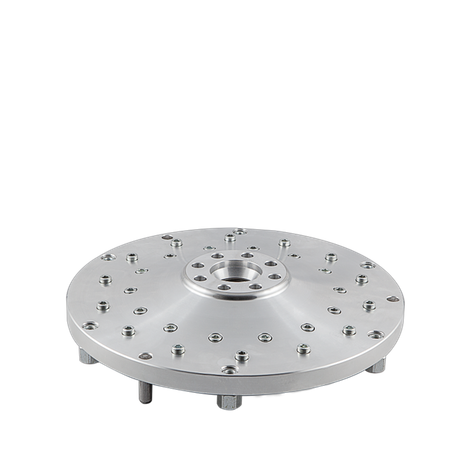

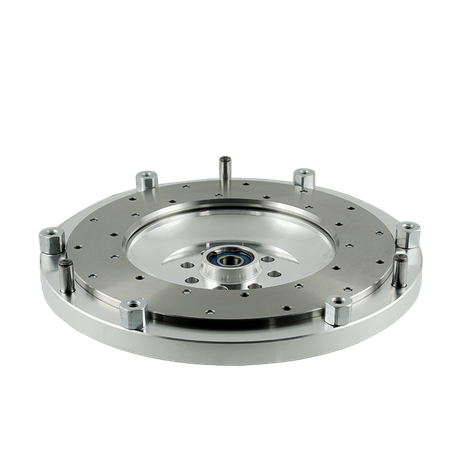

PMC Motorsport Lightweight custom aluminium flywheel Nissan SR SR20 SR20DET - Mazda RX8 RX-8 - 240mm / 9.45"
Custom aluminium flywheel designed to mate the Nissan SR SR20 SR20DET engine to the Mazda RX-8 gearbox
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining

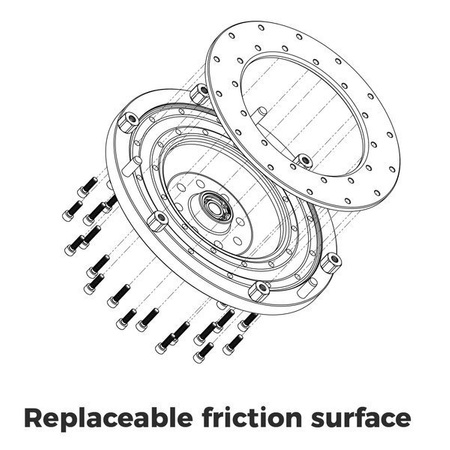

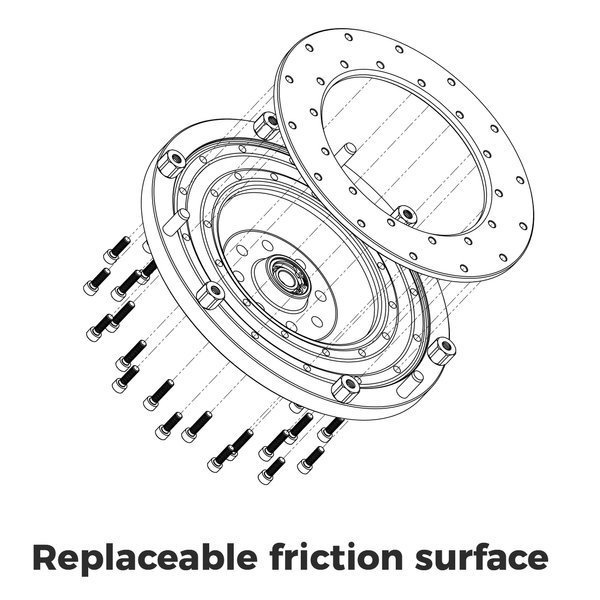

- Replaceable cast iron friction surface

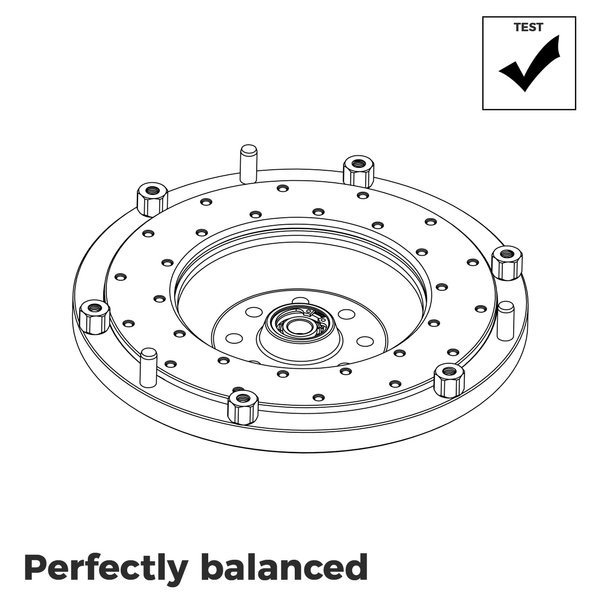

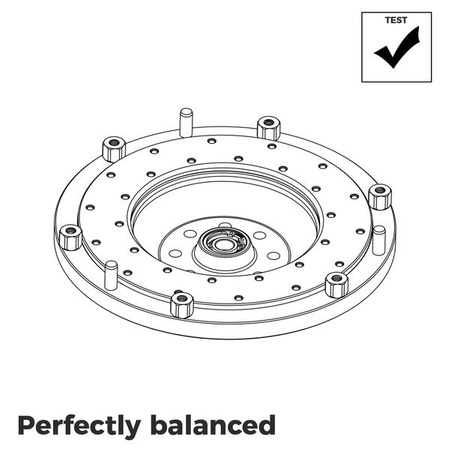

- The flywheel is balanced prior to shipment
Engine list: |
|
Gearbox list: |
|
Manual
- An adapter is required to connect the engine to the gearbox
- Use the flywheel / ring gear from the automatic version
- Tighten the flywheel to the same torque as OE
- Use pressure plate from BMW E39 E60 530D
- Use clutch disc with 23,12x26,14-23N spline
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
Specification
Nissan Engine Model
Nissan SR20DET SR20DE RWD
Manual gearbox (Petrol)
5-speed Mazda RX-8
6-speed Mazda RX-8
Clutch information
Recommended clutch pressure plate
BMW OE 21 21 7 545 068 | 21217545068
BMW OE 21 21 7 526 517 | 21217526517
BMW OE 21 21 7 559 864 | 21217559864
BMW OE 21 21 7 620 467 | 21217620467
Clutch disc (Not included - OE part number)
Ford OE 1450229
Ford OE 6M517550AA
Ford OE 6M517550D1A
Peugeot OE 9661185080
Volvo OE 30725166
Volvo OE 30759784
Clutch disc diameter
Ø240mm / 9.45"
Spline
23x26-23N
Spline Count
23
Flywheel specification
Flywheel Type
SMF Rigid / Single-mass / Single-disc / Ø240mm / 9.45"
Replaceable friction surface
Yes
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
72Nm 53,1ft·lb + Glue
Starter required (not included)
Nissan SR (OE)
Flexplate / ring gear / Drive plate required
Nissan SR Automatic
Required gearbox adapter
Gearbox adapter thickness
20mm / 0.78"
PMC gearbox adapter code
F0RX8-SR
ADDITIONAL INFORMATION
Set includes
Custom Flywheel
Clutch cover - pressure plate bolts kit
Crankshaft bolts kit
